Vivax FS-41T - OPERATING INSTRUCTIONS

VIVAX ENG
6
2
1
3
4
5
6
7
14
8
9
16
OPERATING INSTRUCTIONS
FS-41T
FT-31T

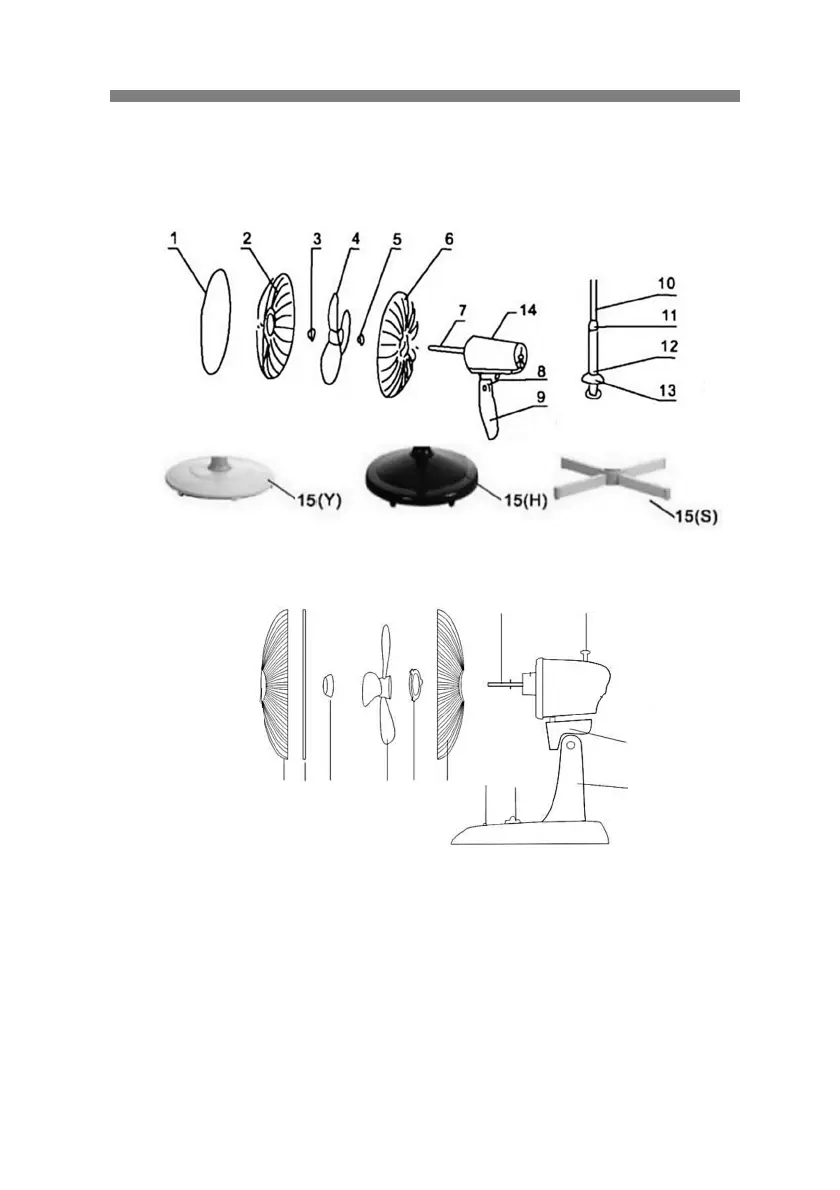

1. Shroud ring
2. Front cover
3. Fastener for Fan
blade
4. Fan blade
5. Fastener for cover
6. Back cover
7. Output shaft
8. Joint
9. Panel
10. Up-Down tube
11. External joint
12. Support tube
13. Decorative cover
14. Head rotating button
15. Base
16. Timer
17. On/Off Switc
