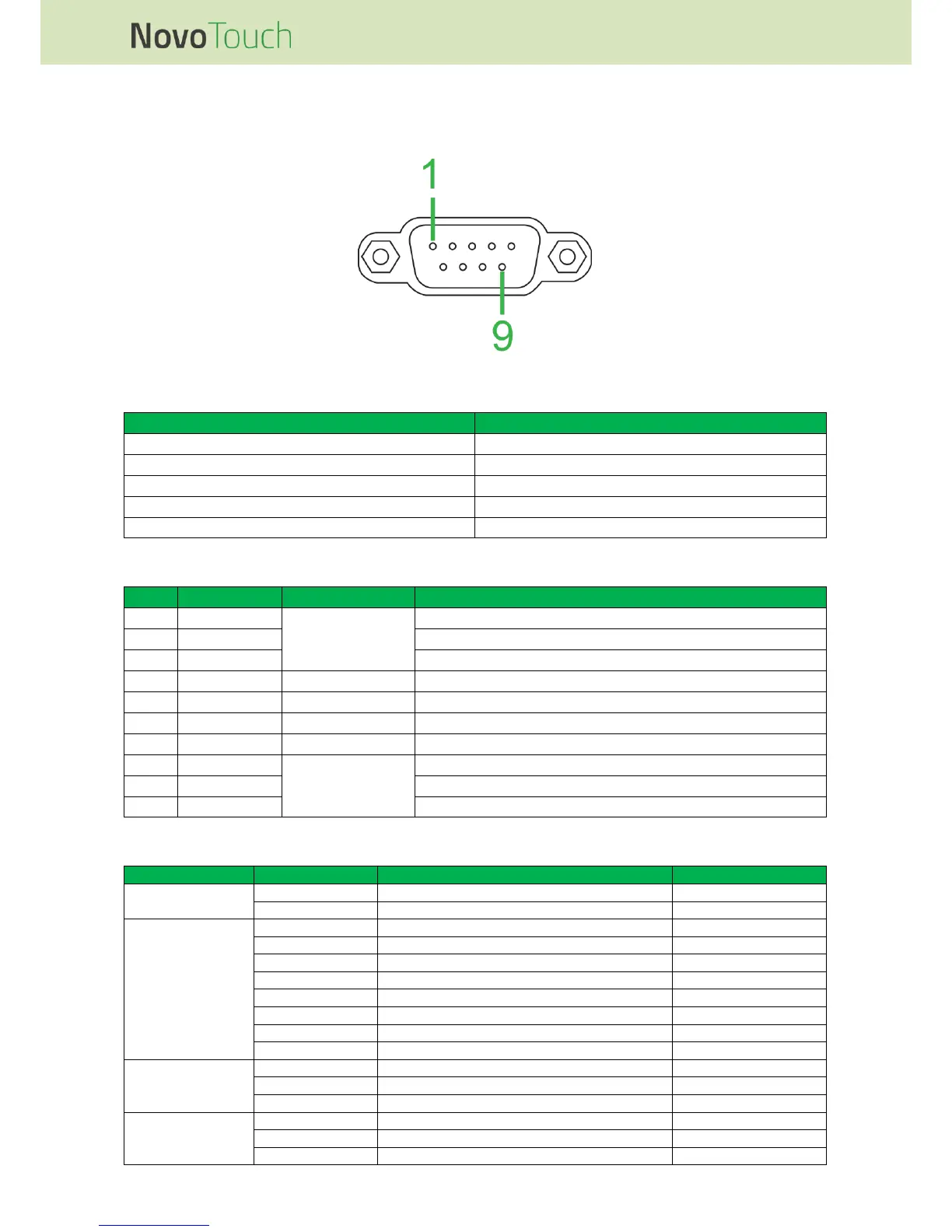

Appendix (RS-232 Specifications)
The following are the pin definitions for the RS-232 port:
Serial Port Settings:
Item
Value
Baud Rate
9600bps (fixed)
Data Bits
8 (fixed)
Stop Bits
1 (fixed)
Parity
None (fixed)
Stream Control
None (fixed)
Command Format:
No.
Content
Description
Remark
1
0xAA
Head
Fixed Value
2
0xBB
Fixed Value
3
0xCC
Fixed Value
4
Main
5
Subcommand
6
0x00
Length
Valid data
7
checksum
Checksum
Sum from No.4 to No.6
8
0xDD
End
Fixed Value
9
0xEE
Fixed Value
10
0xFF
Fixed Value
Code List
Function
Mode
Code
Remark
Power
ON
AA BB CC 01 00 00 01 DD EE FF
OFF
AA BB CC 01 01 00 02 DD EE FF
Source
VGA1
AA BB CC 02 03 00 05 DD EE FF
HDMI1
AA BB CC 02 06 00 08 DD EE FF
HDMI2
AA BB CC 02 07 00 09 DD EE FF
HDMI3
AA BB CC 02 05 00 07 DD EE FF
PC
AA BB CC 02 08 00 0A DD EE FF
ANDROID
AA BB CC 02 0A 00 0C DD EE FF
ANDROID+
AA BB CC 02 0E 00 10 DD EE FF
DP
AA BB CC 02 11 00 13 DD EE FF
Volume
000-100
AA BB CC 03 00 xx ** DD EE FF
MUTE
AA BB CC 03 01 00 04 DD EE FF
UNMUTE
AA BB CC 03 01 01 05 DD EE FF
Aspect Ratio
16:9
AA BB CC 08 00 00 08 DD EE FF
4:3
AA BB CC 08 01 00 09 DD EE FF
PTP
AA BB CC 08 07 00 0F DD EE FF
