General Safety Instructions
ONLY QUALIFIED SERVICE PERSONNEL SHOULD OPERATE THIS
UNIT. MOST STATES, COUNTRIES, ETC.
MAY REQUIRE THAT THE USER BE LICENSED. PLEASE CHECK WITH
YOUR LOCAL GOVERNMENT AGENCY.
Danger -
Avoid breathing refrigerant vapors and lubricant vapors or
mist. Breathing at high concentration levels may cause heart arrhyth-
mia, loss of consciousness, or even cause suffocation. Exposure may
irritate eyes, nose, throat, and skin. Please read the manufacturer Mate-
rial Safety Data Sheet for further safety information on refrigerants and
lubricants.
Danger - EXPLOSION RISK. Use extreme caution when working with
fammable refrigerants. Never use this manifold with Oxygen.
Danger - EXPLOSION/RUPTURE RISK. DO NOT use this manifold with
unreguated nitrogen, carbon dioxide, or other very high-pressure
gases. Unreguated gases can cause components in a refrigeration
system to rupture. Severe injury or death can occur.
Caution - all hoses may contain liquid refrigerant under pressure. Con-
tact with refrigerant may cause frostbite or other reated injuries. Wear
proper personal protective equipment, such as safety goggles and
gloves. When disconnecting any hose, please use extreme caution.
87

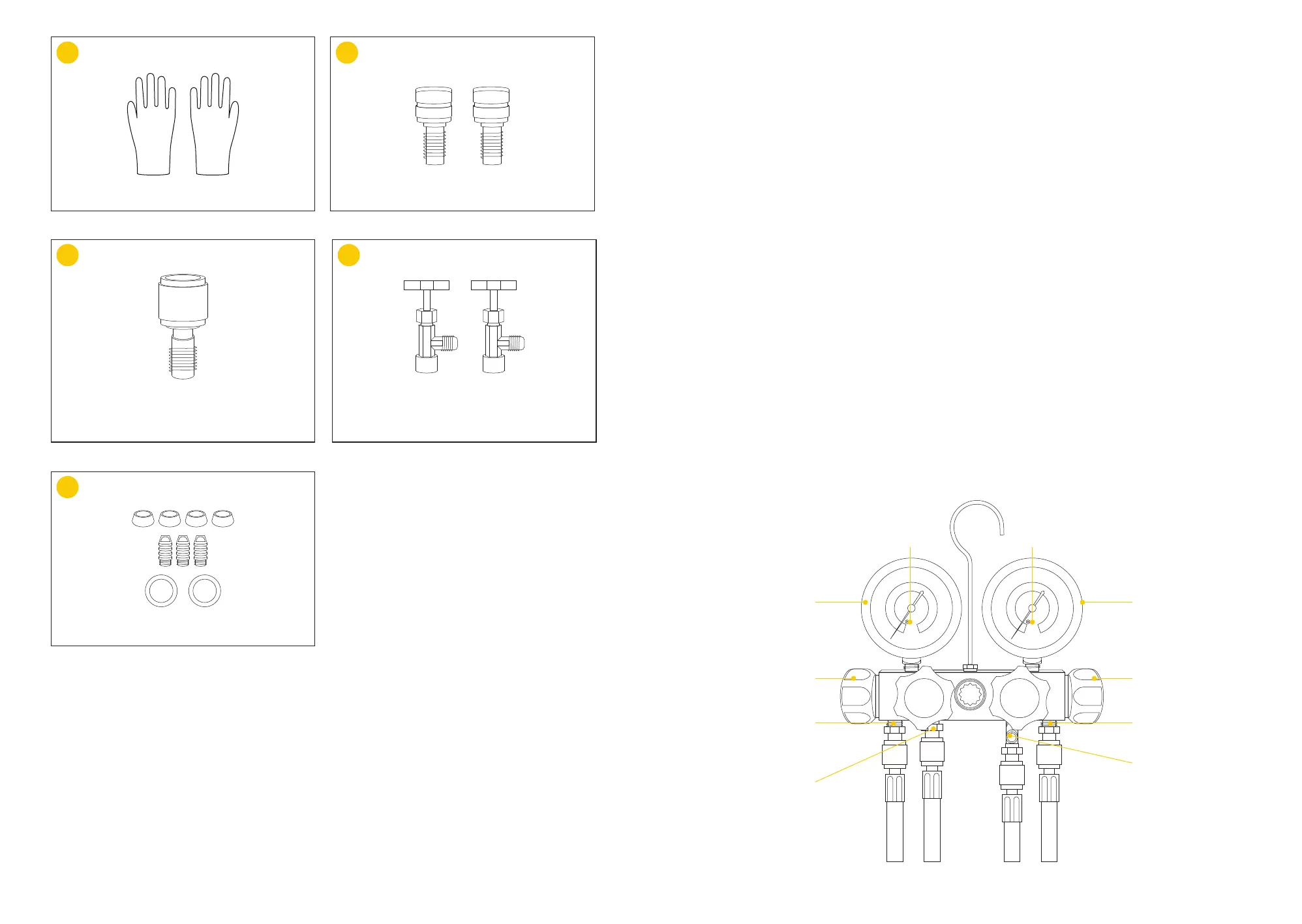

7 Gloves*1 8 Thread Conversion Adapter*2
9 Thread Conversion Adapter*1 10 Bottle Opener*2
11 Spare Parts
Low Side Blue
Hand Valve
Low Side
Connected
to Low Side
Service Port
Low Side
(Blue)
Calivration
Screw
Calivration
Screw
High Side Red
Hand Valve
High Side
Connected
to High Side
Service Port
Evacuation
Port
Charging
Port
High Side
(Red)
1/4SAE External to 5/16 Internal
R134A Piercing Type,
R134A Pin Type
1/4SAE External to
1/2ACME Internal
Valve Core Pin, Pipe Seal Ring
