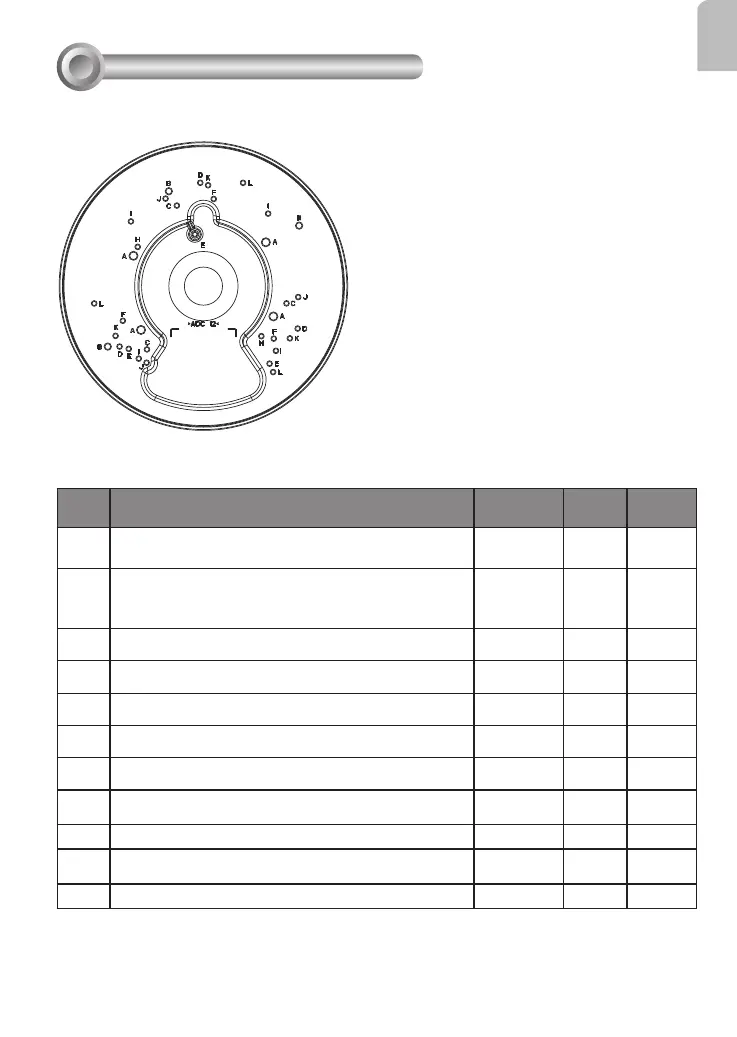

Above are the locations of different groups of mounting holes for matching different
cameras:
Hole
Type
Applicable Cameras Screw No. of
screws
Screw
pack
A
FD8361 / FD8361L / FD8362 /FD8362E / FD8363
/ FD8335H/ FD8372
M5X10 round
head
4
A
B
FD8162 / FD8135H / FD8163 / FE8181 /
FE8181V / FE9182-H / FE9382-EHV / FE9391-
EV / FE9582-EHNV
M4X12 round
head
3 or 2
B
C
FD8131V / FD8133V/ FD8134V
M3X6 round
head
3
C/E/F/K
D
FE8171V / FE8172V / FE8174V / FE9381-EHV
M3X8 binding
head
3
D/L/J
E
MD7530 / MD7560 / MD8562
M3X6 round
head
3
C/E/F/K
F
FD8164 / FD8137H
M3X6 round
head
3
C/E/F/K
H
FD8131 / FD8133 / FD8134
M3X6 round
head
2
H
I
FE8172 / FE8173 / FE8174 / FE9181-H / FE9191
M3X8 binding
head
4
I
J
FD8167 / FD8167-T / FD8138-H
M3X8
3
D/L/J
K FD8164V / FD8137HV
M3X6 round
head
3
C/E/F/K
L FD8367-V / FD8367-TV / FD8338-HV
M3X8
3
D/L/J
Mounting Hole Denitions
