VIVOTEK
8 - User's Manual
1
2
3
4
5
6
7
8
9
10
# Name
1 EXT_MIC_N
2 EXT_MIC_P
3 Audio_out-
4 Audio_out+
5 DI-
6 DI+
7 DO-
8 DO+
9 12V DC-_IN
10 12V DC+_IN
5

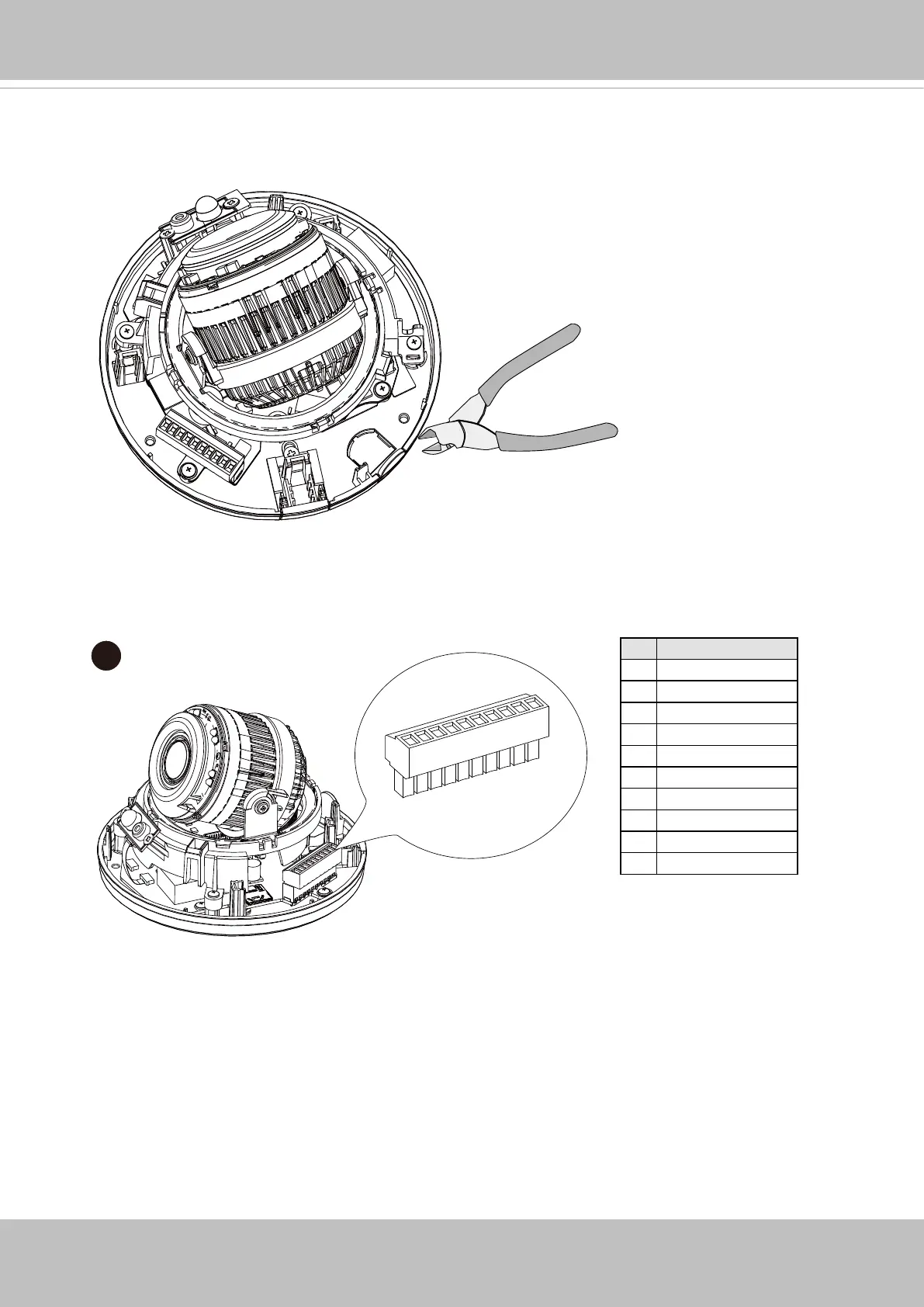

5. If applied, connect DI/DO wires, 12V DC power, or audio wires to the terminal block.
If preferred, use a cutting plier to remove the platic tab on the pre-cut routing hole, and
pass cables through the hole.
The DO output is 12V, 30V max., and the max. load is 50mA.
The DI voltage range is +-30V.
