Connector side

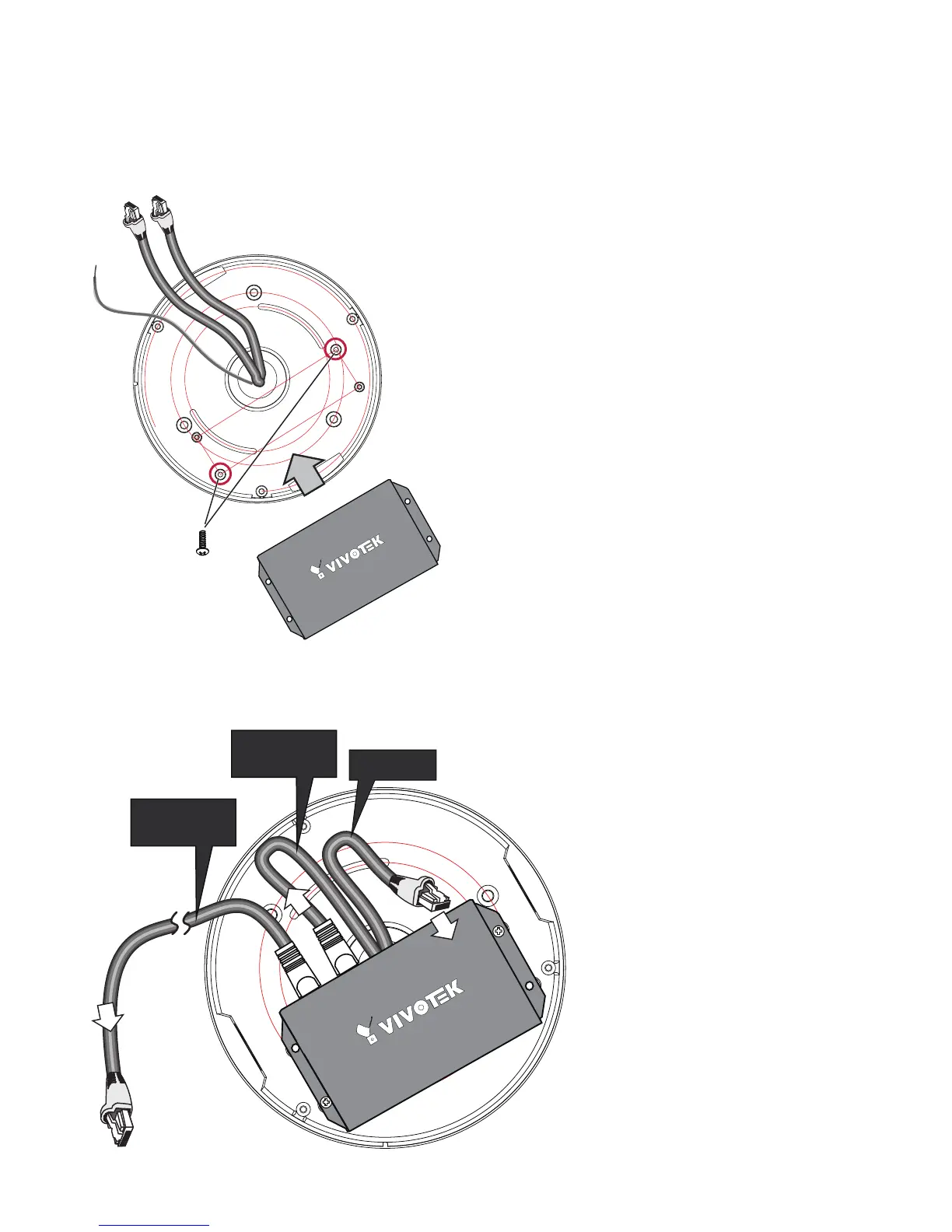

1. Pull cables through the NPT pipes and then the conduit box.
2. Install the conduit box to the NPT pipe.
3. When done, install the PoE extender by driving 2 screws to the conduit box, its
connector side facing the inside of the box.
III-3. Installing the Conduit Box and PoE Extender
4. In a cascade topology, there should be 2 Ethernet cables in the pipe. One is used as
PoE input, the other as the out port to the next conduit box.
PoE IN
PoE OUT
to another conduit
box
PoE OUT
to camera
You may use cable tags to identify PoE cables.
