1" single gang box
4" square and round box
4-11/16" square gang box
2
1
4" octagon box
3
4
5
Cantex 3/4” type FSE 2 Gang, Outdoor/Indoor electrical box
Generic 3/4” conduit box enclosure, 3/5 holes
1
1
1
1
2
3
3
4
4
5
5
5
5
2
2
2
Installation option A:

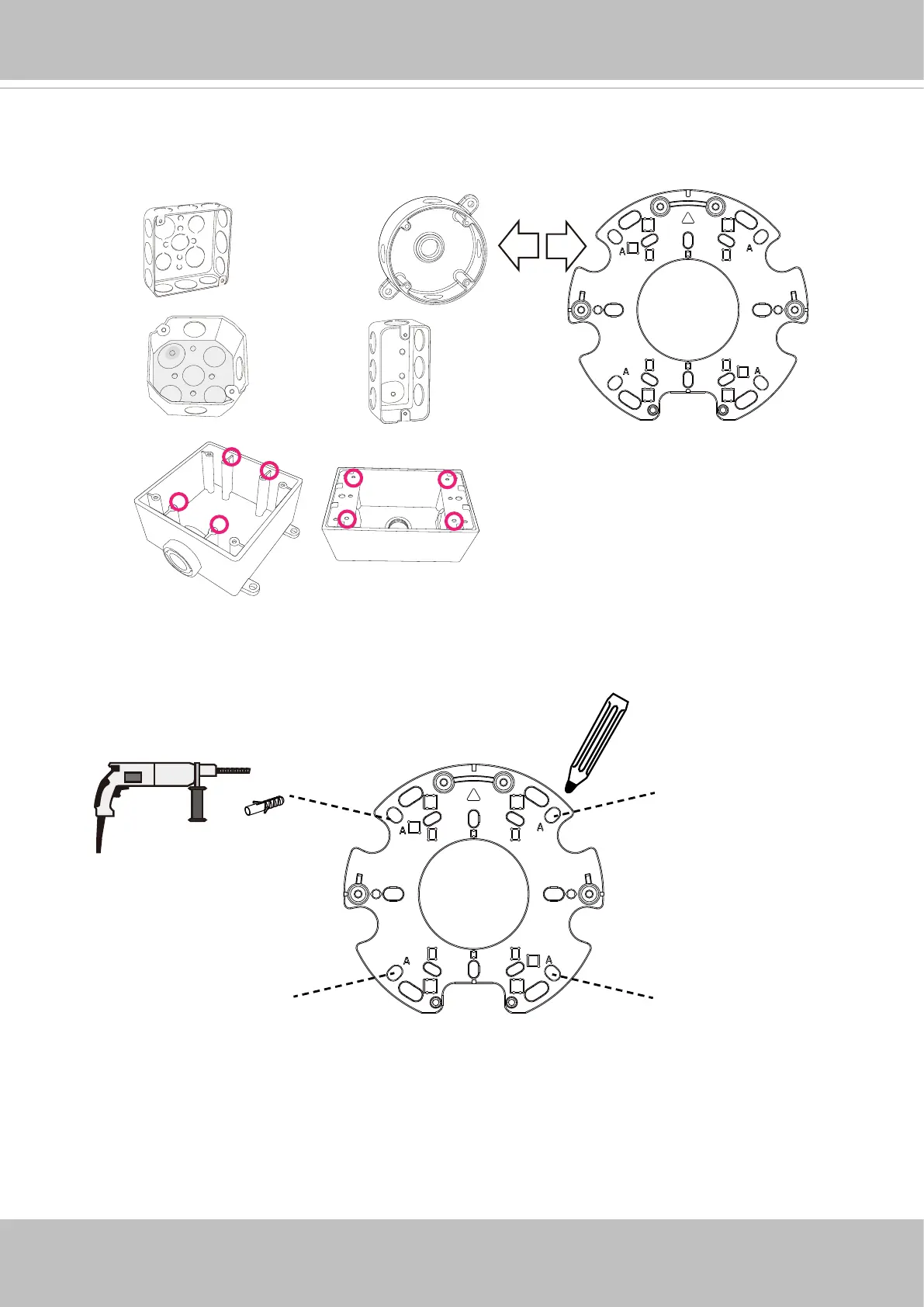

A-1. See below for the mounting holes used with applicable conduit boxes.
x4
Using A holes
The mounting plate and conduit bracket are separately
purchased. The 1/2" threaded pipe and hex nut are
user-supplied.
A-2. Use the A holes to mount the base plate to a wall.
To Next Page
