VIVOTEK
User's Manual - 19
x4

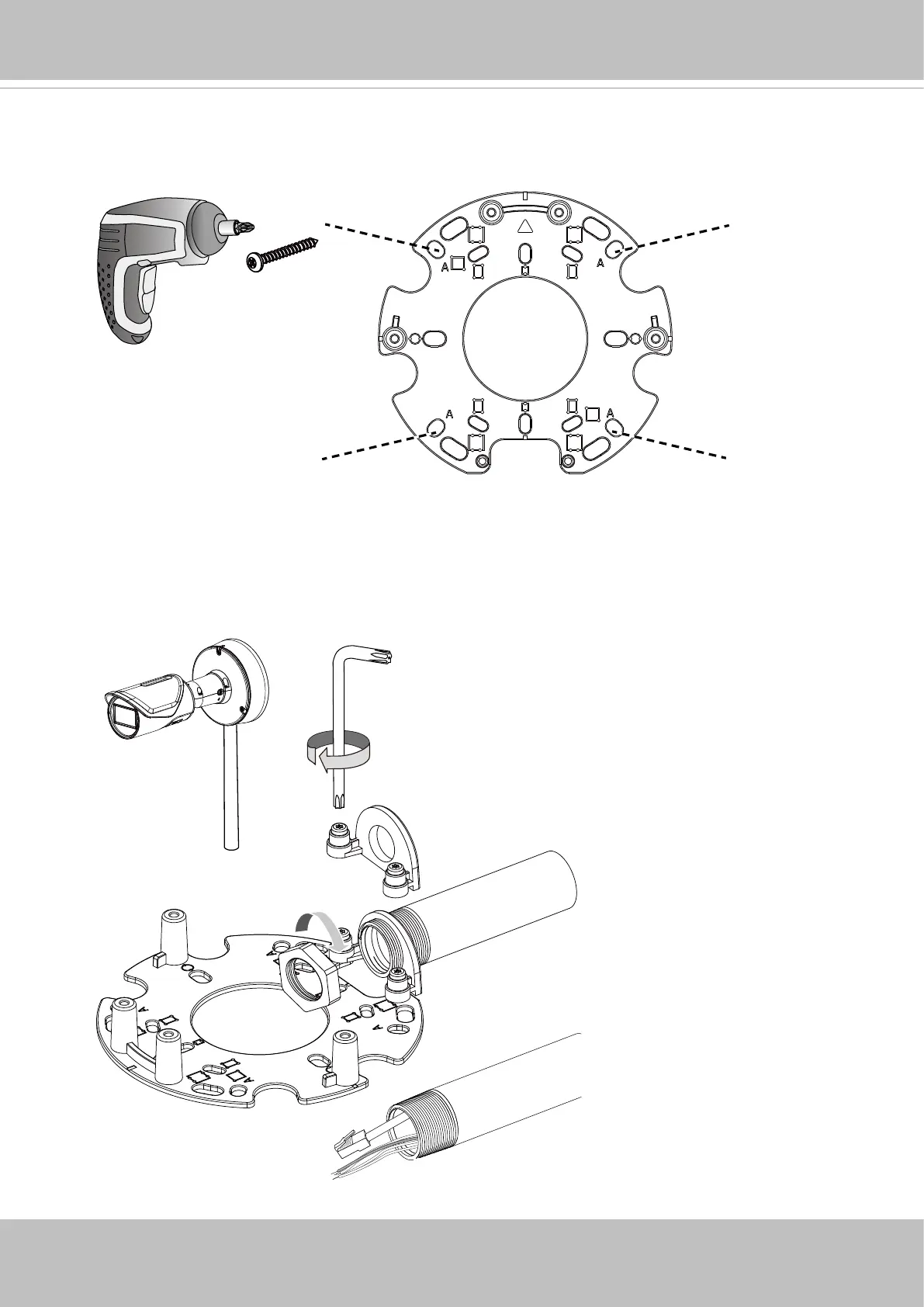

Wall-mount
using A holes
A-3. Drive screws to secure the bracket to wall.
1/2” Pipe
A-4. Secure the 1/2" conduit pipe using the side-routing bracket. You can then route cables
and install the camera and base plate to the bracket.
