20 - User's Manual
CONN 2 12 pin
CONN 1 10 pin
Installation option B:

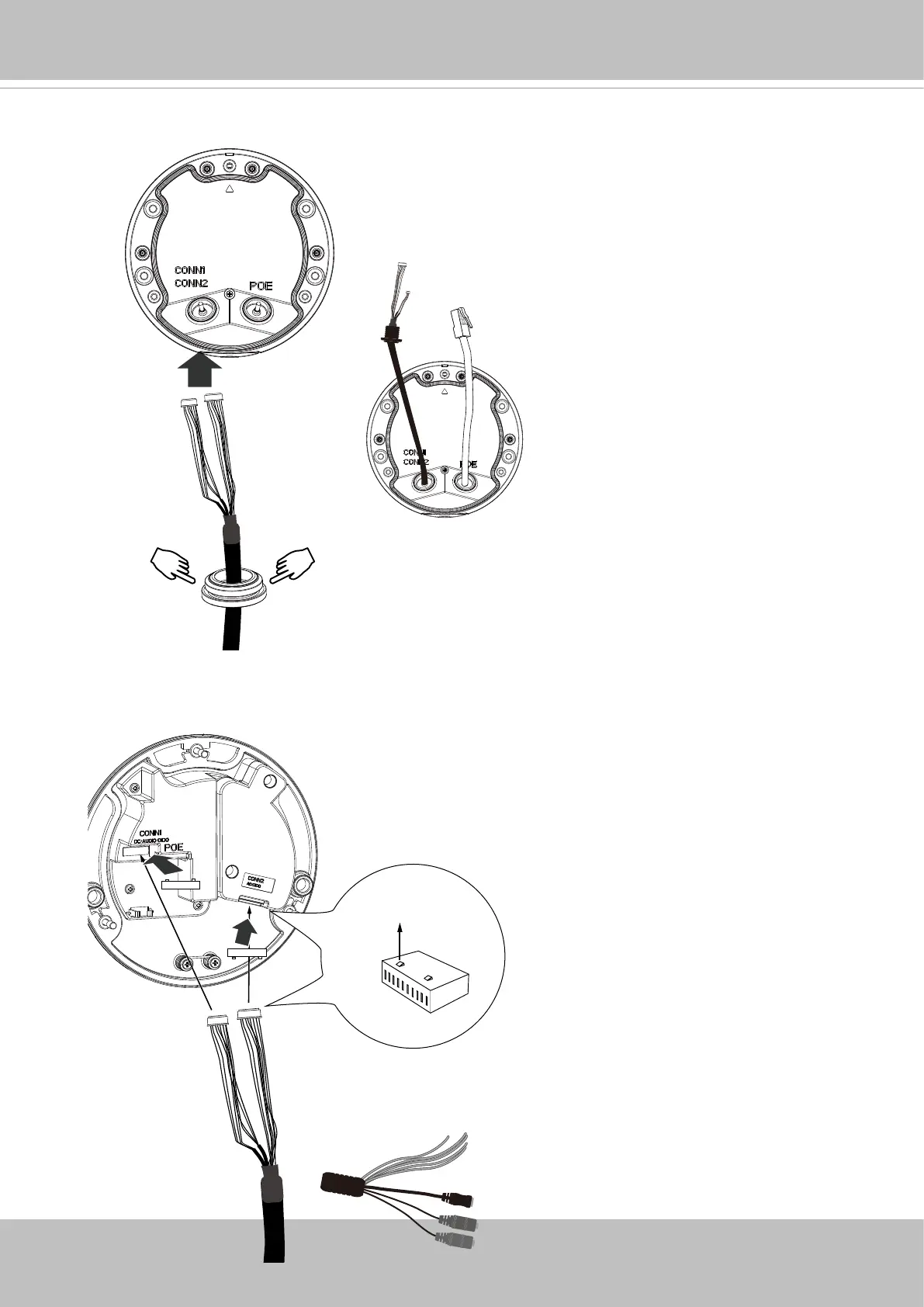

B-1. Pass the I/O extension kit cable through the cabling hole.
CONN 2 12 pin
CONN 1 10 pin
Tabs
DI-: Green/W
DI2+: Orange/W
DI3+: Yellow/W
DO2-: Gray
DO3-: Blue/W
DO+(12V): Purple
RS485_N: Brown/W
RS485_P: Gray/W
B-2. Connect the pin headers to the I/O extension module and that on the camera. Note
the orientation of the pin headers with the positions of the tabs. Properly install the
grommet as previously described.
