Buttons Conguration
In the Button Conguration window, the left column shows the actions you can assign, and the right
column shows the functional buttons and assigned actions. The number of buttons may differ from
different joysticks.
Please follow the steps below to congure your joystick buttons:

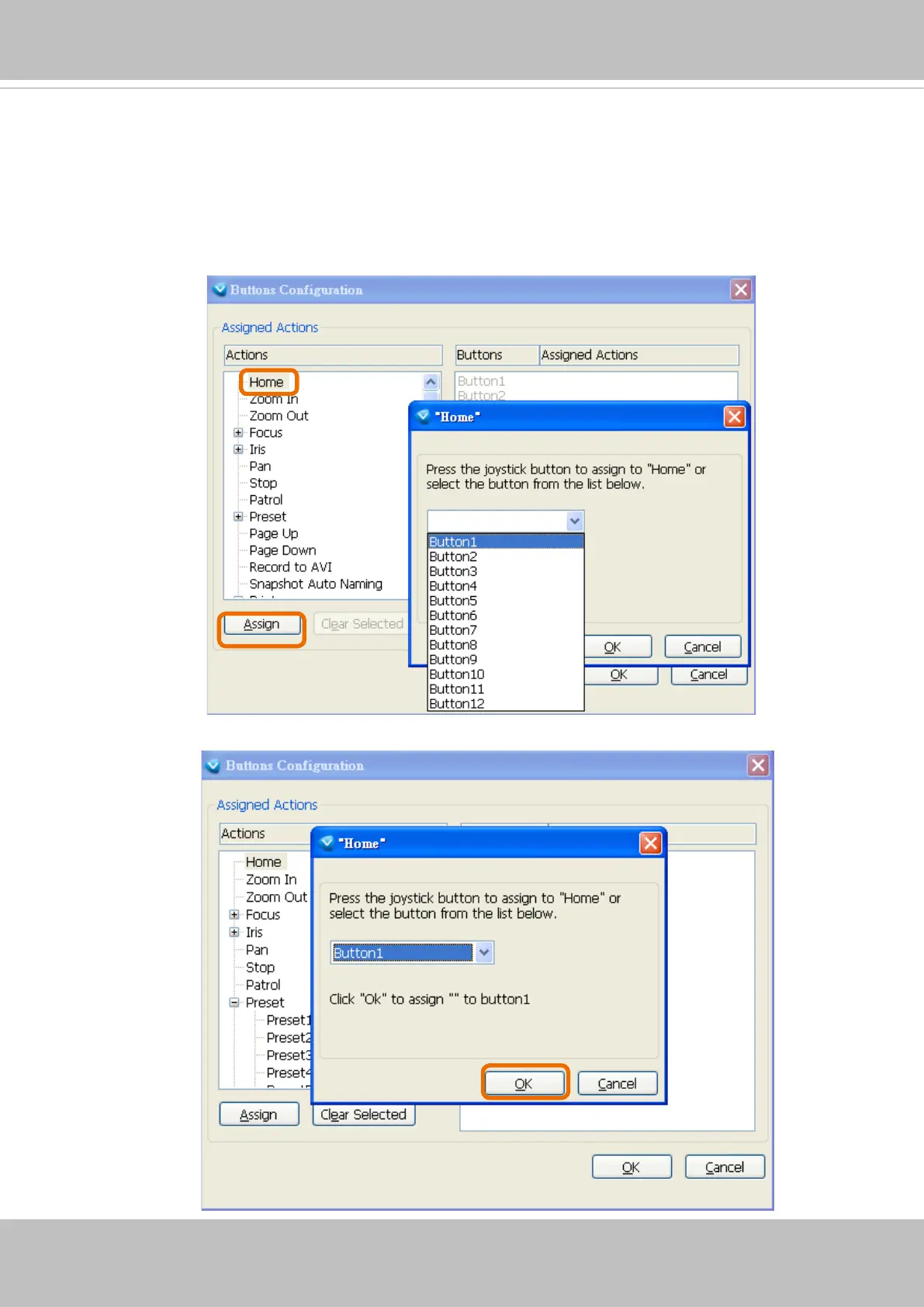

1. Choosing one of the actions and click Assign will pop up a dialog. Then you can assign this
action to a button by pressing the joystick button or select it from the drop-down list.
For example: Assign Home (move to home position) to Button 1.
2. Click OK to conrm the conguration.

Vivotek IB9368-HT Specifications

General

Built-in HDD	No
Flash memory	128 MB
Internal memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Focus	Motorized
Digital zoom	48 x
Number of lenses	1
Focal length range	2.8 - 12 mm
Maximum aperture number	2.8
Minimum aperture number	1.4
Sensor type	CMOS
Optical sensor size	1/2.9 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	0 - 90 °
Angle of rotation	180 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.055 lx
Type	IP security camera
Certification	CE, FCC Class B, UL, LVD, VCCI, C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wired
LED type	IR
Night vision distance	30 m
Number of illumination LEDs	2
Signal-to-Noise Ratio (SNR)	68 dB
Number of users	10 user(s)
Networking standards	IEEE 802.1x, IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP, ONVIF
IK code	IK10
Form factor	Bullet
Mounting type	Wall
Product color	Black, White
LED indicators	Power, Status, System
International Protection (IP) code	IP66
Power source type	PoE
Power consumption (max)	12.95 W
Power consumption (typical)	9 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Mac operating systems supported	Mac OS X 10.12 Sierra
Windows operating systems supported	Windows 7, Windows 8

Weight and Dimensions

Depth	85 mm
Width	214.5 mm
Weight	738 g
