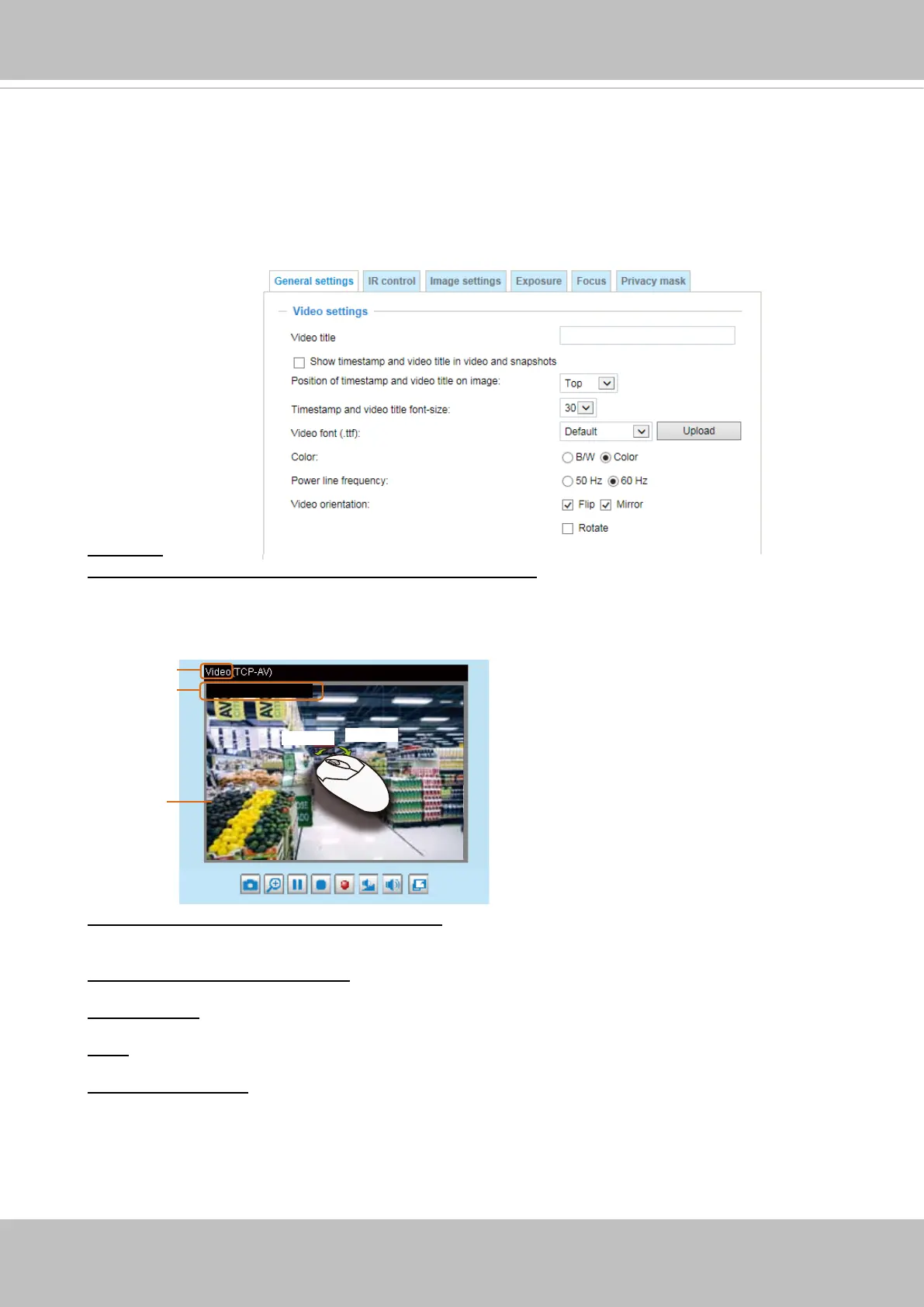

This section explains how to configure the image settings of the Network Camera. It is
composed of the following columns: General settings, IR control, Image settings, Exposure,
Focus, and Privacy mask. The Focus window is available only for models that come with
motorized lens.
General settings
Video title
Show_timestamp_and video_title_in_video_and_snapshots: Enter a name that will be displayed on
the title bar of the live video as the picture shown below. A zoom indicator will be displayed on the
Home page when you zoom in/out on the live viewing window as shown below. You may zoom in/
out on the image by scrolling the mouse wheel inside the live viewing window, and the maximum
zoom in will be up to 12 times.
Position of timestamp and video title on image: Select to display time stamp and video title on the
top or at the bottom of the video stream.
Timestamp and video title font size: Select the font size for the time stamp and title.
Video font (.ttf): You can select a True Type font le for the display of textual messages on video.
Color: Select to display color or black/white video streams.
Power line frequency: Set the power line frequency consistent with local utility settings to eliminate
image flickering associated with fluorescent lights. Note that after the power line frequency is
changed, you must disconnect and reconnect the power cord of the Network Camera in order for
the new setting to take effect.
Video Title
Title and Time
Video 17:08:56 2018/7/09
2018/7/09 17:08:56
X2.1
Zoom Factor
Zoom In
Zoom Out

Vivotek IB9368-HT Specifications

General

Built-in HDD	No
Flash memory	128 MB
Internal memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Focus	Motorized
Digital zoom	48 x
Number of lenses	1
Focal length range	2.8 - 12 mm
Maximum aperture number	2.8
Minimum aperture number	1.4
Sensor type	CMOS
Optical sensor size	1/2.9 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	0 - 90 °
Angle of rotation	180 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.055 lx
Type	IP security camera
Certification	CE, FCC Class B, UL, LVD, VCCI, C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wired
LED type	IR
Night vision distance	30 m
Number of illumination LEDs	2
Signal-to-Noise Ratio (SNR)	68 dB
Number of users	10 user(s)
Networking standards	IEEE 802.1x, IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP, ONVIF
IK code	IK10
Form factor	Bullet
Mounting type	Wall
Product color	Black, White
LED indicators	Power, Status, System
International Protection (IP) code	IP66
Power source type	PoE
Power consumption (max)	12.95 W
Power consumption (typical)	9 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Mac operating systems supported	Mac OS X 10.12 Sierra
Windows operating systems supported	Windows 7, Windows 8

Weight and Dimensions

Depth	85 mm
Width	214.5 mm
Weight	738 g
