Day/Night Settings
Switch to B/W in night mode
Select this to enable the Network Camera to automatically switch to Black/White during night
mode.
Rotate -
MirrorNormal Flip Rotate 90°
clockwise
The camera may be installed on a vertical, side-facing, or tilted surface in order to accommodate
the interior or exterior design of a building. The interior of a building can be shaped as a narrow
rectangular space, such as a corridor. The conventional HD image, such as that of a 16:9 aspect
ratio, will be incongruous with its wide horizontal view. With video rotation, the camera can more
readily cover the eld of view on a tall and narrow scene.

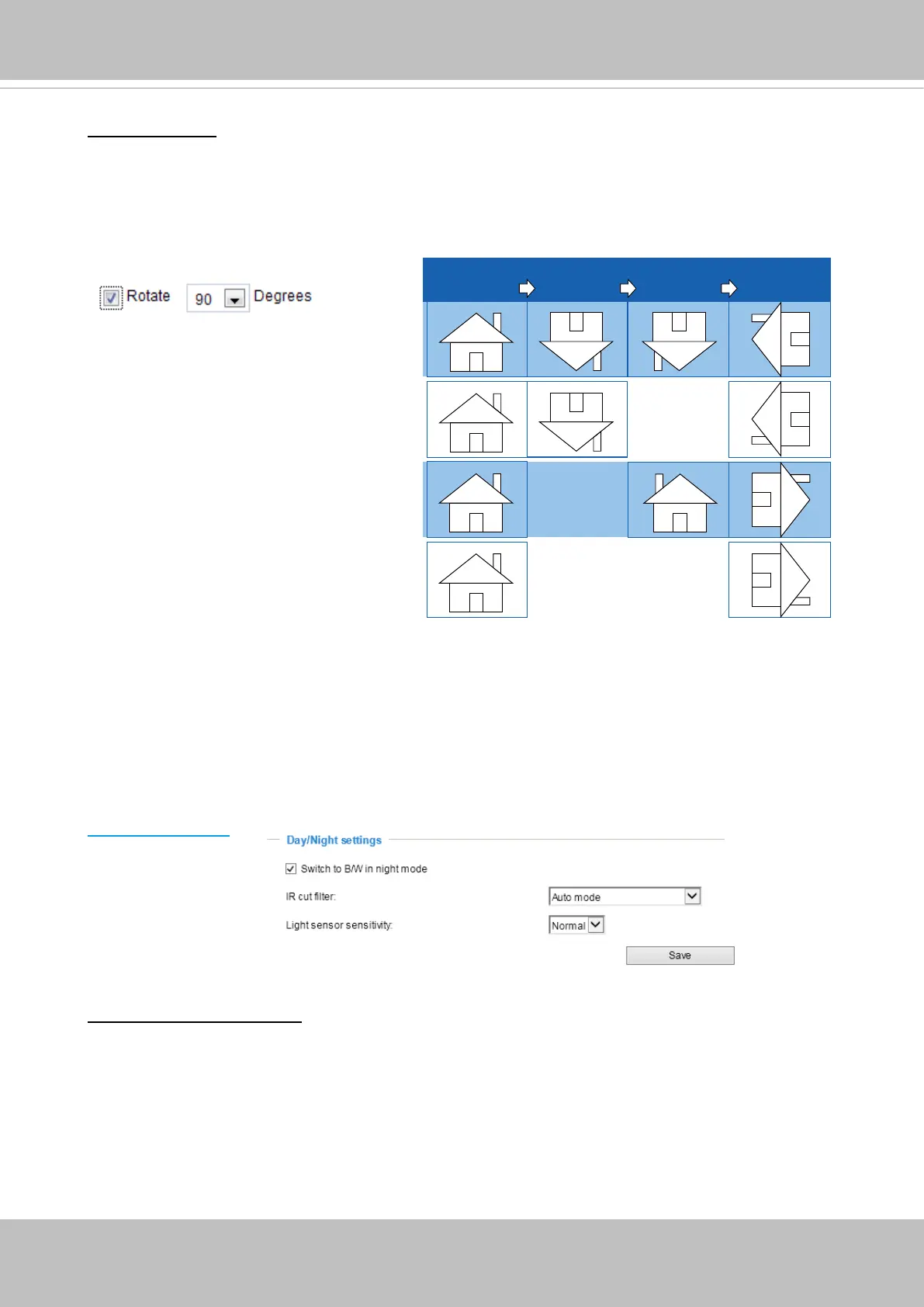

The rotation here indicates clockwise
rotation. Rotation can be applied with
flip, mirror, and physical lens rotation
(see below) settings to adapt to different
mounting locations.
The gures in the illustration are shown in
a consecutive order.
Video orientation: Flip - vertically reect the display of the live video; Mirror - horizontally reect the
display of the live video. Select both options if the Network Camera is installed upside-down (e.g.,
on the ceiling) to correct the image orientation. Please note that if you have preset locations, those
locations will be cleared after ip/mirror setting.

Vivotek IB9368-HT Specifications

General

Built-in HDD	No
Flash memory	128 MB
Internal memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Focus	Motorized
Digital zoom	48 x
Number of lenses	1
Focal length range	2.8 - 12 mm
Maximum aperture number	2.8
Minimum aperture number	1.4
Sensor type	CMOS
Optical sensor size	1/2.9 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	0 - 90 °
Angle of rotation	180 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.055 lx
Type	IP security camera
Certification	CE, FCC Class B, UL, LVD, VCCI, C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wired
LED type	IR
Night vision distance	30 m
Number of illumination LEDs	2
Signal-to-Noise Ratio (SNR)	68 dB
Number of users	10 user(s)
Networking standards	IEEE 802.1x, IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP, ONVIF
IK code	IK10
Form factor	Bullet
Mounting type	Wall
Product color	Black, White
LED indicators	Power, Status, System
International Protection (IP) code	IP66
Power source type	PoE
Power consumption (max)	12.95 W
Power consumption (typical)	9 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Mac operating systems supported	Mac OS X 10.12 Sierra
Windows operating systems supported	Windows 7, Windows 8

Weight and Dimensions

Depth	85 mm
Width	214.5 mm
Weight	738 g
