Primary DNS: The primary domain name server that translates hostnames into IP addresses.
Secondary DNS: Secondary domain name server that backups the Primary DNS.
Primary WINS server: The primary WINS server that maintains the database of computer names
and IP addresses.
Secondary WINS server: The secondary WINS server that maintains the database of computer
names and IP addresses.

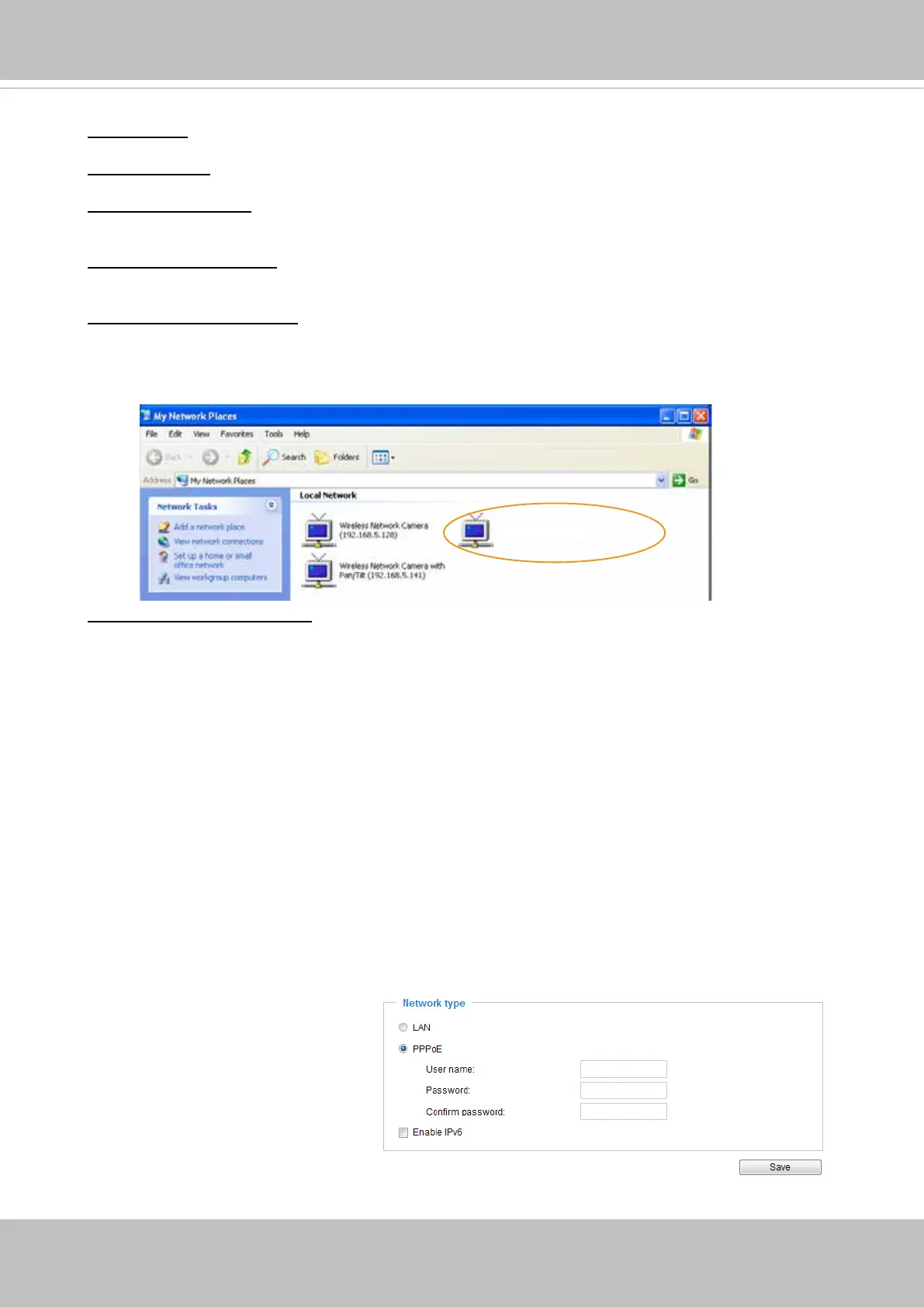

Enable UPnP presentation: Select this option to enable UPnP
TM
presentation for your Network
Camera so that whenever a Network Camera is presented to the LAN, the shortcuts to connected
Network Cameras will be listed in My Network Places. You can click the shortcut to link to the web
browser. Currently, UPnP
TM
is supported by Windows XP or later. Note that to utilize this feature,
please make sure the UPnP
TM
component is installed on your computer.
Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option
to allow the Network Camera to open ports automatically on the router so that video streams can
be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP
TM
and
it is activated.
PPPoE (Point-to-point over Ethernet)
Select this option to congure your Network Camera to make it accessible from anywhere as long
as there is an Internet connection. Note that to utilize this feature, it requires an account provided
by your ISP.
Follow the steps below to acquire your Network Camera’s public IP address.
1. Set up the Network Camera on the LAN.
2. Go to Conguration > Event > Event settings > Add server (please refer to Add server on page
120) to add a new email or FTP server.
3. Go to Conguration > Event > Event settings > Add media (please refer to Add media on page
125).
Select System log so that you will receive the system log in TXT le format which contains the
Network Camera’s public IP address in your email or on the FTP server.
4. Go to Conguration > Network > General settings > Network type. Select PPPoE and enter the
user name and password provided by your ISP. Click Save to enable the setting.
5. The Network Camera will reboot.
6. Disconnect the power to the Network Camera; remove it from the LAN environment.
Mega-pixel Network Camera (192.168.5.151)

Vivotek IB9368-HT Specifications

General

Built-in HDD	No
Flash memory	128 MB
Internal memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Focus	Motorized
Digital zoom	48 x
Number of lenses	1
Focal length range	2.8 - 12 mm
Maximum aperture number	2.8
Minimum aperture number	1.4
Sensor type	CMOS
Optical sensor size	1/2.9 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	0 - 90 °
Angle of rotation	180 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.055 lx
Type	IP security camera
Certification	CE, FCC Class B, UL, LVD, VCCI, C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wired
LED type	IR
Night vision distance	30 m
Number of illumination LEDs	2
Signal-to-Noise Ratio (SNR)	68 dB
Number of users	10 user(s)
Networking standards	IEEE 802.1x, IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP, ONVIF
IK code	IK10
Form factor	Bullet
Mounting type	Wall
Product color	Black, White
LED indicators	Power, Status, System
International Protection (IP) code	IP66
Power source type	PoE
Power consumption (max)	12.95 W
Power consumption (typical)	9 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Mac operating systems supported	Mac OS X 10.12 Sierra
Windows operating systems supported	Windows 7, Windows 8

Weight and Dimensions

Depth	85 mm
Width	214.5 mm
Weight	738 g
