10
9.

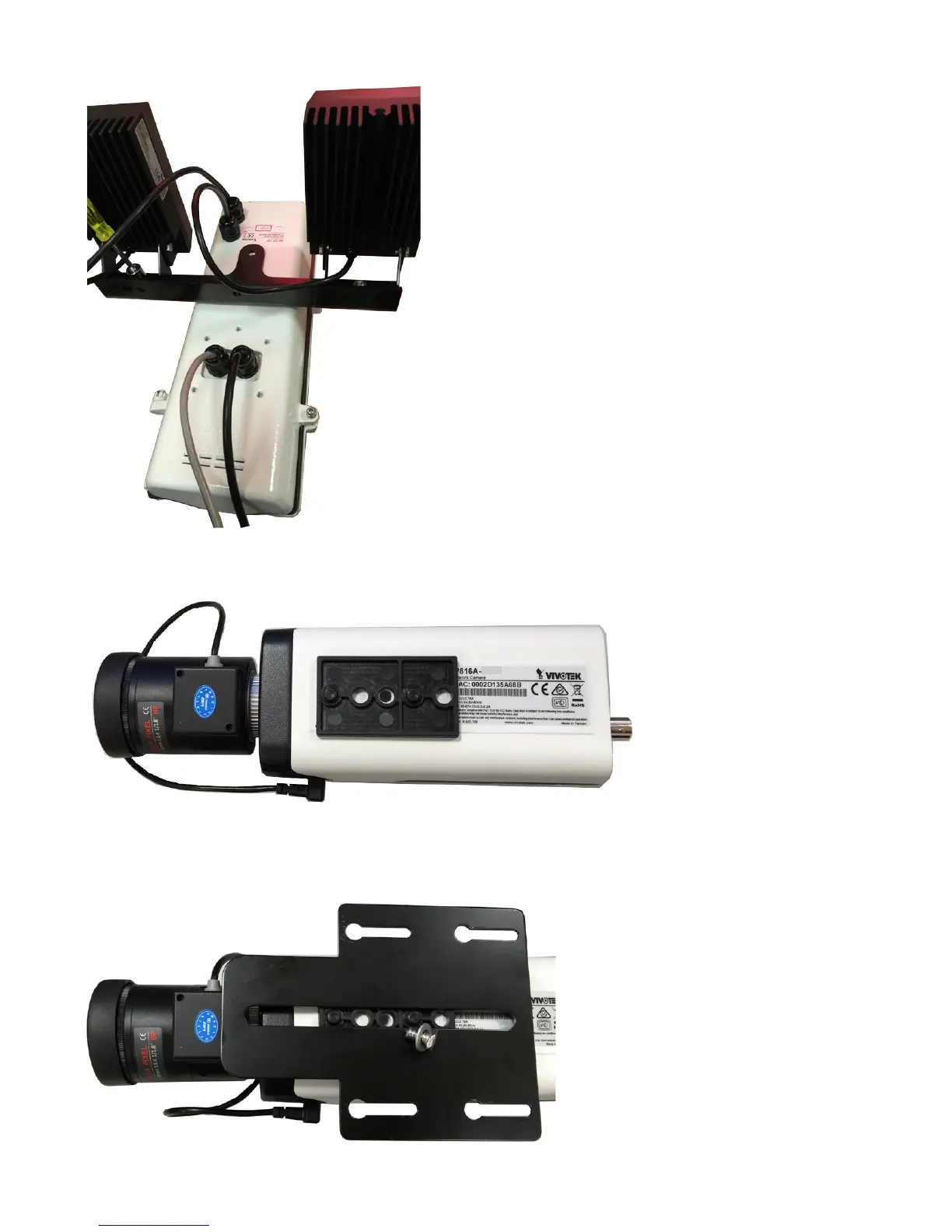

When done, tighten up the waterproof connectors.
10.
Assemble the camera components, e.g., the CS ring and lens module. Align the
buffer pad with the mounting hole at the bottom of the camera (the label side).
LPC
11.
Place the mounting plate on top of the buffer pad and then secure it to the camera.
You may need adjust its position so that the lens module can ush align with the tempered
glass.
