Vivotek IP8330 - Network Deployment; General Connection (Without Poe)

EN-5
English
Network Deployment
4
P
O
W
ER
C
O
L
L
I
S
I
ON
L
I
N
K
R
E
C
E
I
V
E
P
ART
IT
I
O
N
1
2
3
4
5

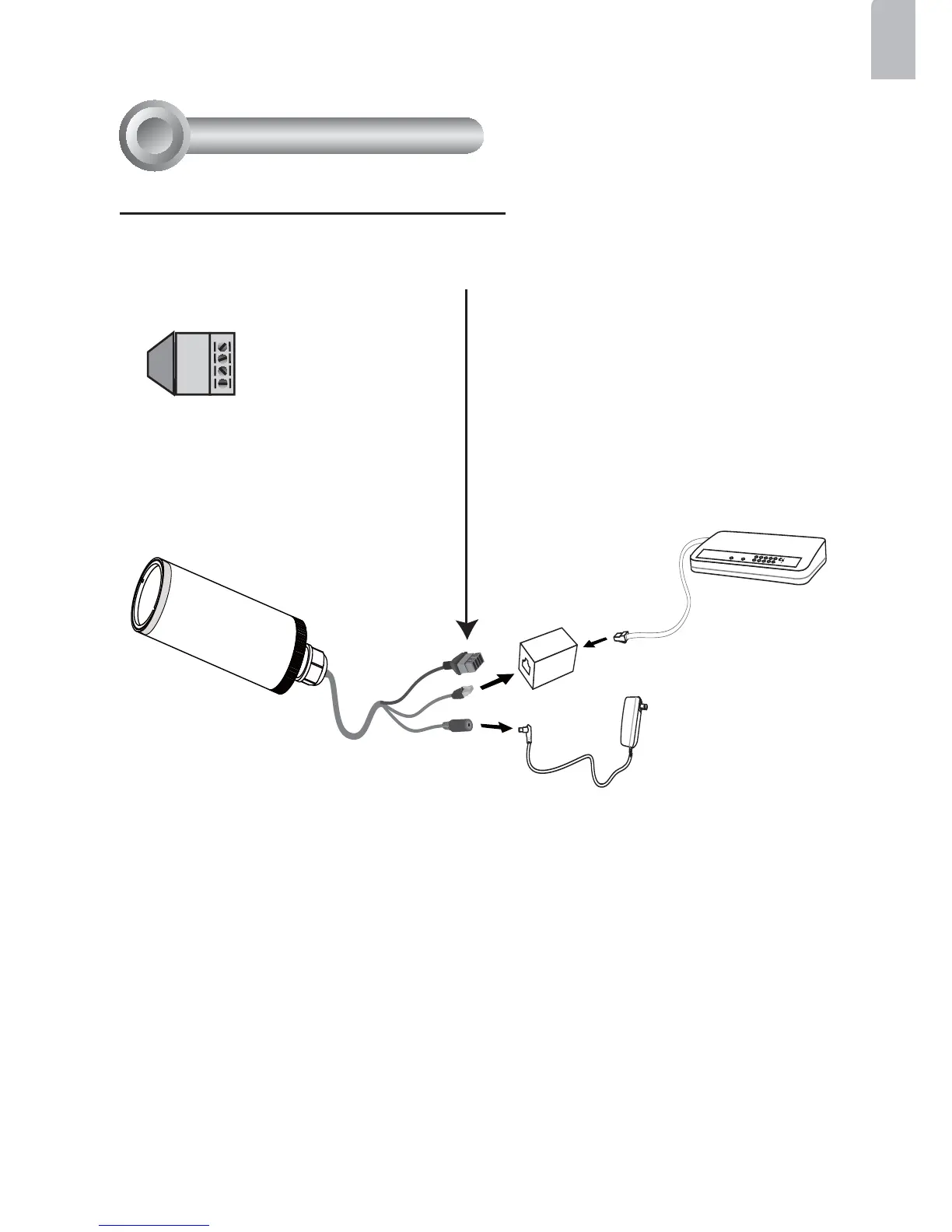

1. If you have external devices such as
sensors and alarms, make the connection
from general I/O terminal block.
2. Use the supplied RJ45 female/female
coupler to connect the Network Camera
to a switch.
Use Category 5 Cross Cable when
Network Camera is directly connected to
PC.
3. Connect the power cable from the
Network Camera to a power outlet.
GND : Ground
D I : Digital Input
AC24V: 24V
AC24V: 24V
GND
DI
AC24V
AC24V
General Connection (without PoE)
