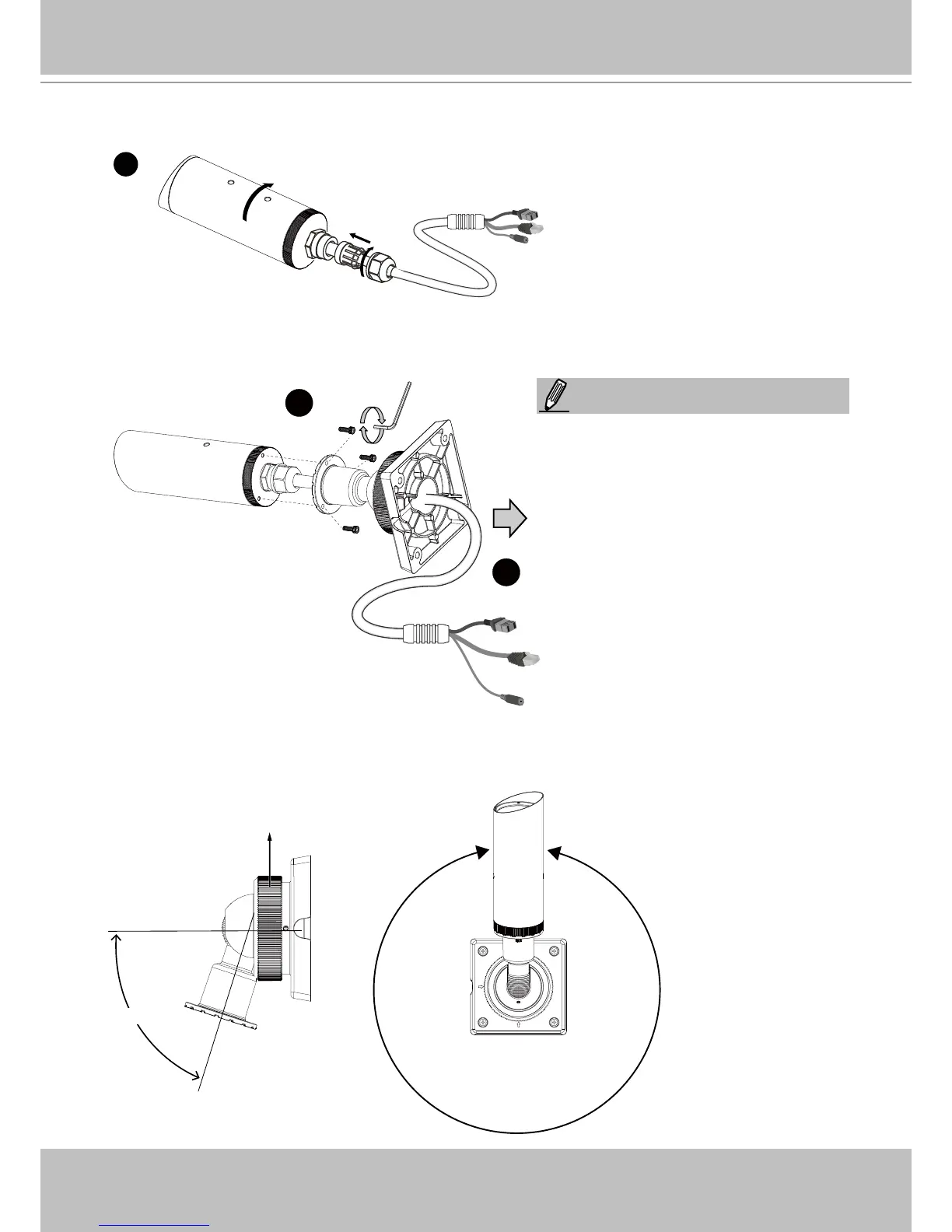

5. Tighten the rear cover, rubber seal and waterproof connector.
7
6
5
6. Pass the cables through the center of the ball swivel mount bracket, one at a time.
7. Fasten the bracket to the camera using 3 hex socket screws.
8. Loosen the fastening ring on the mount bracket, and aim the camera at the area of your
interest. When done, tighten the fastening ring.
Fastening ring
75º Tilt
360º Pan
NOTE:
The camera weighs up to 1.28 kgs.
Make sure the mounting surface can
support this camera.
