Vivotek IP8371E - Cabling Assembly

EN-4
Waterproof Connector
1 AC 24V IN
2 AC 24V IN
3 DC12V+ IN
4 DC12V- IN
5 DI-
6 DI+
7 DO-
8 DO+
9 N/C
10 N/C
11 EXT_MIC
12 Audio Out
13 Audio GND
14 TV Out
15 GND
15
1
Pin number

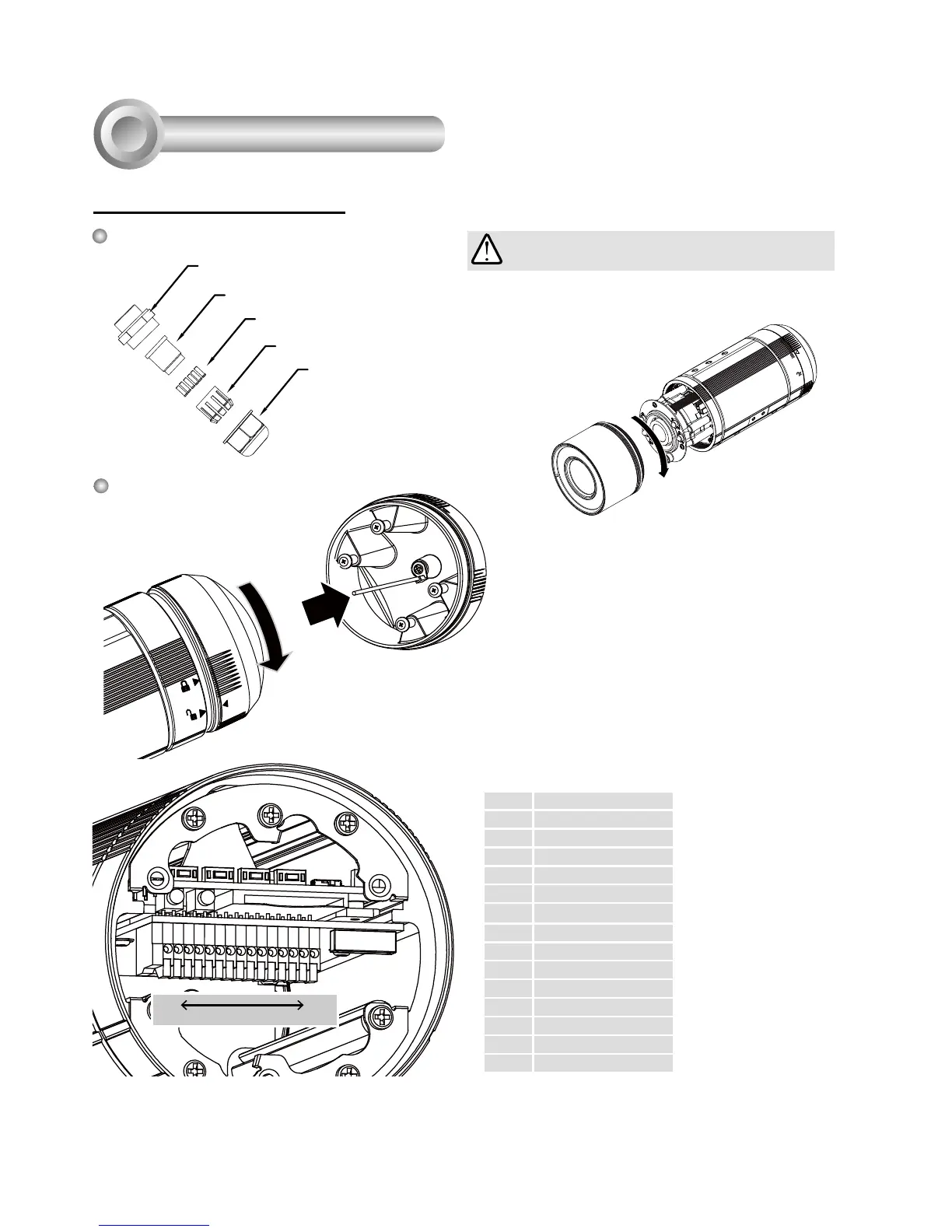

Components of the Waterproof Connector
Seals (C)
Housing (D)
Sealing Nut (E)
Seal (B)
Screw Nut (A)
Pin Denitions
Pin Denitions
If you should need to open the front cover, make
sure you tighten it up later so that the camera can
be waterproof.
IMPORTANT:
Cabling Assembly
4
