VIVOTEK
48 - User's Manual
Wireless (PZ8111W/PZ8121W only)
Setting up wireless cameras’ connections can be tricky� The configuration process involves hardwire
connection to your LAN for initial setup and wireless connection to AP� To switch between the connection
types, you have to physically disconnect the 12VDC connector. For example, when you are nished with
initial setup via LAN, you have to remove the RJ-45 LAN cable and disconnect the 12VDC power jack,
and then reconnect the power�
When you are performing the initial setup via LAN, the wireless antenna can be left in place�
To set up a wireless connection with the camera,

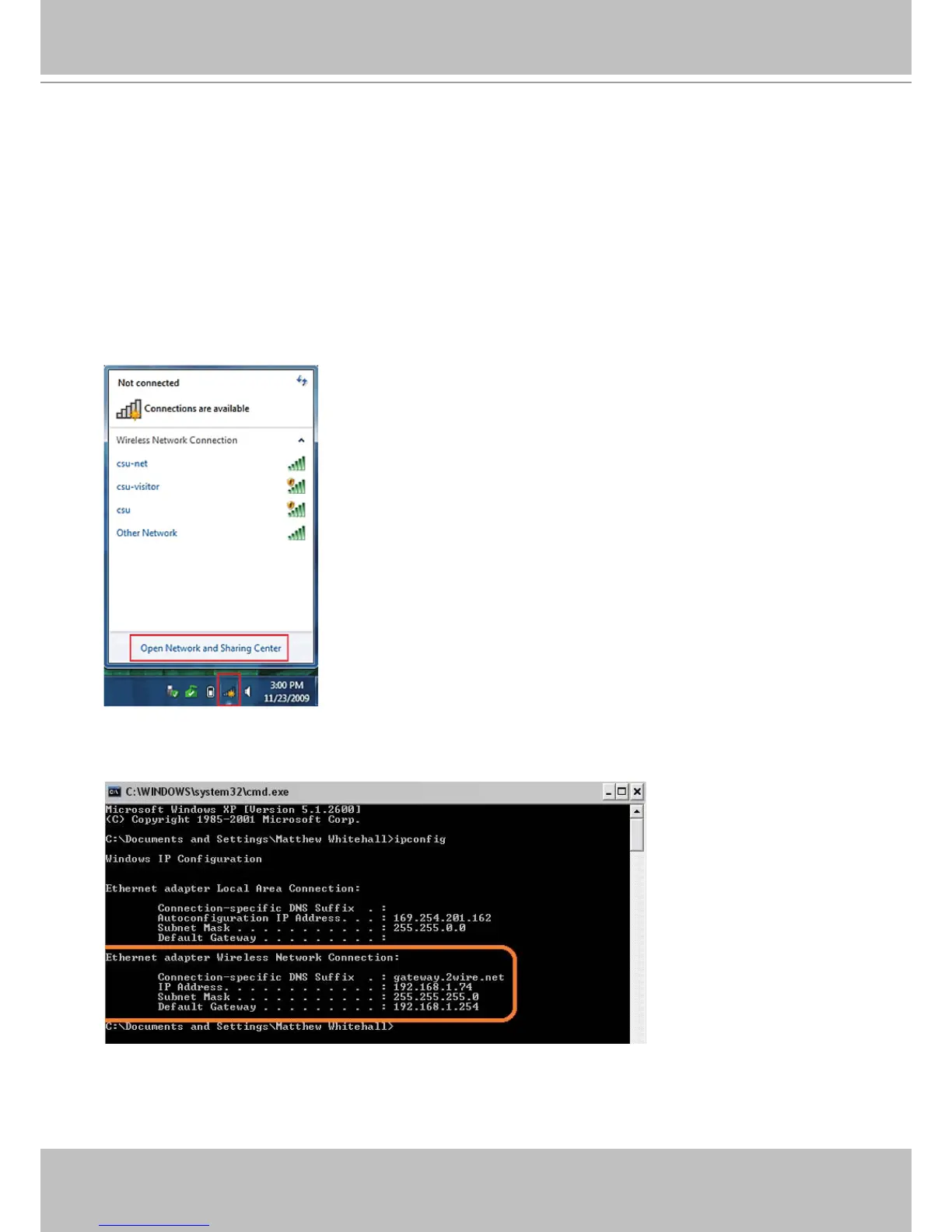

1� You must already have a wireless AP and wireless connection available� Find out the name of your
wireless network by a click on your Windows System Tray� Jot down the name of the network�
2. You may need to set up static IPs for wireless connections. You can nd related information using the
“ipcong“ command in a command prompt window.
