Vivreau Top Pro - Base Cabinet Unpack and Control; Base Cabinet Panel Preparation

• Unpack the base cabinet.
• Lift the box and pull it up and away.
• Open base cabinet with key.
• The key for the Base Cabinet is located on the device (image 1).
• Check that the assembly material is complete.
• Unpack the base plate (optional).

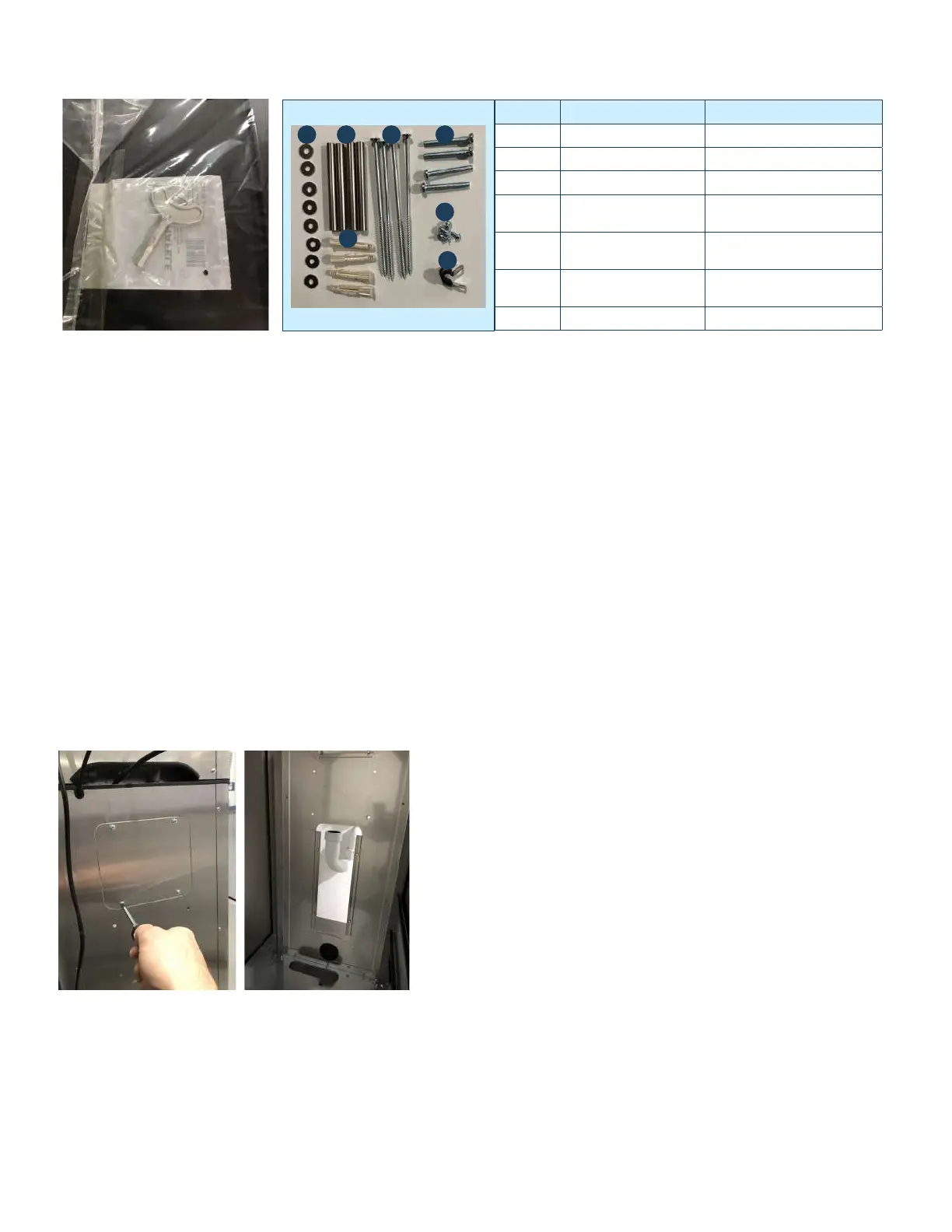

• Allocation of the fastening parts, see Figure 2.
• Check the Base Cabinet for transport damage.
Step 1 — Unpack and control
Number Description Used for
1 Washer 6.4x18.1.6 Wall bracket
2 Tube wall bracket Wall bracket
3 Dowel 8x52 mm Wall bracket
4
Screw countersunk
head D6x160mm
Wall bracket
5
Screw cross recess
M6X50
Fixing unit to Base Cabinet
6 Screw M4X8
CO2 belt and clamp pressure
reducer
7 Hose clamp Mains cable to Base Cabinet
1 2
3
4 5
6
7
• Remove the assembly ap (upper section), see Figure
1.
• If necessary, the lower ap can also be removed, eg
for the drain (image 2).
Step 2 — Remove mounting ap
