Vizio D24h-E1 Installation Guide

English - iv

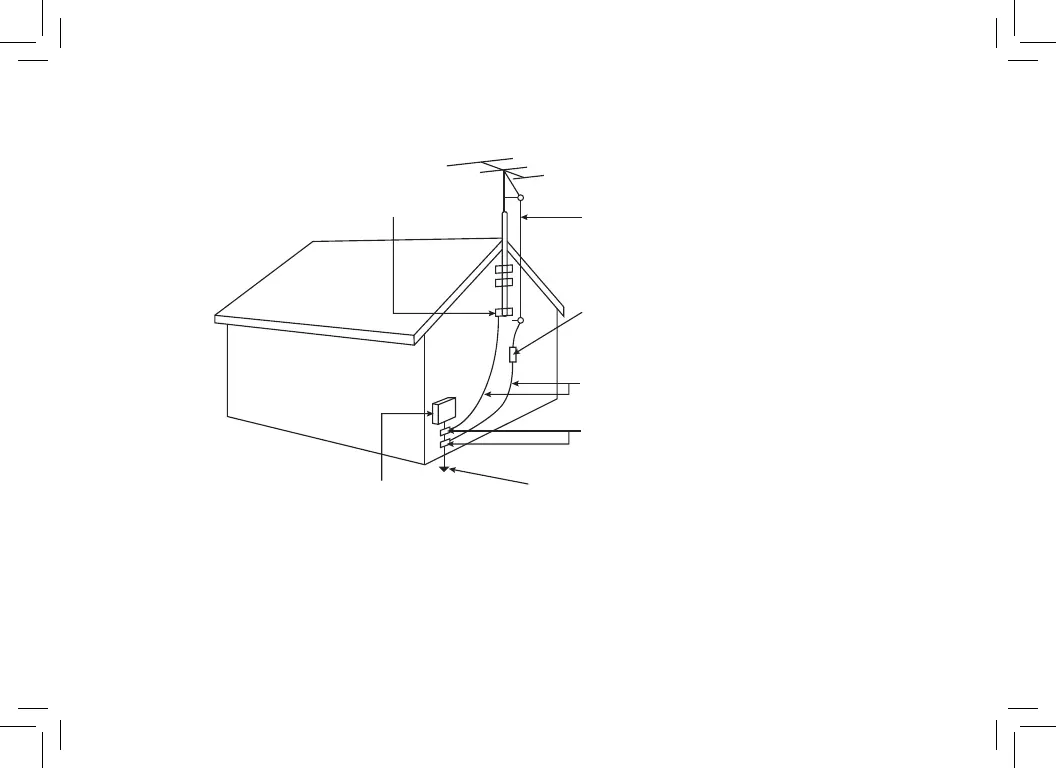

Television Antenna Connection Protection
Ground Clamp
Antenna Lead In Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding Electrode System
(NEC ART 250, part H)
Electric Service Equipment
• If an outside antenna/satellite dish or cable system is to be connected to the TV,
make sure that the antenna or cable system is electrically grounded to provide
some protection against voltage surges and static charges.
• Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information
with regard to proper grounding of the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge unit, size of the grounding conductors,
location of antenna discharge unit, connection to grounding electrodes, and
requirements of the grounding electrode.
• Lightning Protection: For added protection of the TV during a lightning storm or
when it is left unattended or unused for long periods of time, unplug the TV from
the wall outlet and disconnect the antenna or cable system.
• Power Lines: Do not locate the antenna near overhead light or power circuits, or
where it could fall into such power lines or circuits. Remember, the screen of the
coaxial cable is intended to be connected to earth in the building installation.

Vizio D24h-E1 Specifications

General

Screen Type	led
Wall Mount	100mm x 100mm
Features	edge-lit led backlight, vizio internet apps plus
Tuner	digital
Screen Size	23.54 inches, 24 inches
Refresh Rate	60hz
Closed Captioning	yes
HDR	no
Built-In Speakers	yes
Surround Sound	dts studio sound
Speakers Output	4 watts
HDMI ARC Ports	yes
USB Ports	1
USB 2.0 Ports	0
USB 3.0 Ports	0
RF Antenna	no
Bluetooth	no
Network	built-in wi-fi, ethernet
Digital Optical Audio Outputs	0
Analog Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	0
DVI	0
VGA Ports	0
SmartTV	vizio internet apps (v.i.a.)
Remote Control	standard
3D	no
Power Consumption	36 kilowatt hours
Depth with Stand	6.3 inches
Height with Stand	15 inches
Width with Stand	22 inches
Net Weight with Stand	7.5 pounds
Depth without Stand	2.4 inches
Height without Stand	13.2 inches
Net Weight without Stand	7.3 pounds
