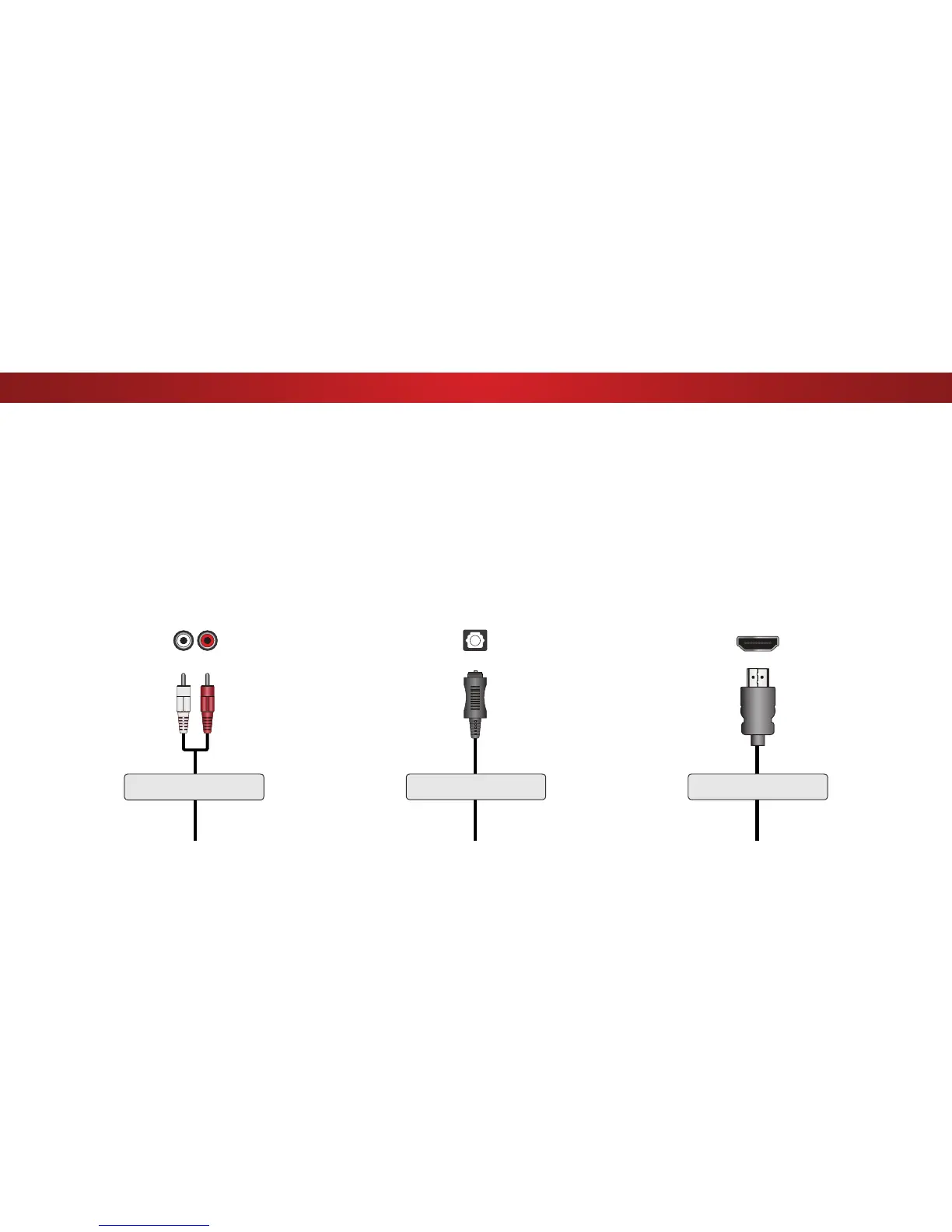

CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES
RCA CABLE
RCA cables (or Composite cables) are the
traditional way of connecting your devices to your
audio device. Audio signals are sent over the red
and white connectors.
• Quality Stereo Connection
• 2.0 Channel
• Analog Connection
• Audio Signal Only
OPTICAL/SPDIF CABLE
Optical/SPDIF cables transmit audio signals as
pulses of light through a cable made of plastic
bers. Audio signals are digitally transmitted
between devices.
• PCM Stream (Lossless)
• Dolby Digital 5.1 Channel
• DTS 5.1 Channel
• Digital Connection
• Audio Signal Only
HDMI CABLE
HDMI technology transmits crystal-clear digital
multi-channel surround audio through a single
HDMI cable. Audio Return Channel-enabled
(ARC) TVs allow audio to be sent over an already
connected HDMI cable, eliminating the need for
a separate audio cable. See Connecting an Audio
Device - ARC on page 17.
• ARC 2-way Communication
(Auto setup)
• PCM, DTS, Dolby Digital
• 2.0 - 5.1 Scaleable Lossless
Digital Audio Connection
• Audio and Video Signals
GOOD
COMPONENT VIDEO
L R
BETTER
Optical/SPDIF
DIGITAL OPTICAL AUDIO
BEST
HDMI
HDMI
16

Vizio D55u-D1 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	54.6 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Full-Array
Supported video modes	1080p, 2160p
Contrast ratio (dynamic)	5000000:1
Display refresh rates supported	120 Hz
Motion interpolation technology	-
Music apps	Pandora, Spotify
Video apps	Netflix, YouTube
Lifestyle apps	Facebook, Twitter
Audio decoders	DTS Studio Sound
RMS rated power	10 W
Number of speakers	2
PC in (D-Sub)	No
HDMI ports quantity	5
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	300 x 300 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	82.4 W
Package depth	162 mm
Package width	1357 mm
Package height	821.9 mm
Package weight	21000 g
Sustainability certificates	ENERGY STAR
Certification	UL, cUL, FCC Class B, HDMI 1.4/2.0, Dolby Digital Plus

Weight and Dimensions

Depth (with stand)	255 mm
Height (with stand)	781 mm
Weight (with stand)	17000 g
Depth (without stand)	64.01 mm
Width (without stand)	1239 mm
Height (without stand)	721.1 mm
Weight (without stand)	16600 g
