Vizio E320-A1 User Manual

1
4

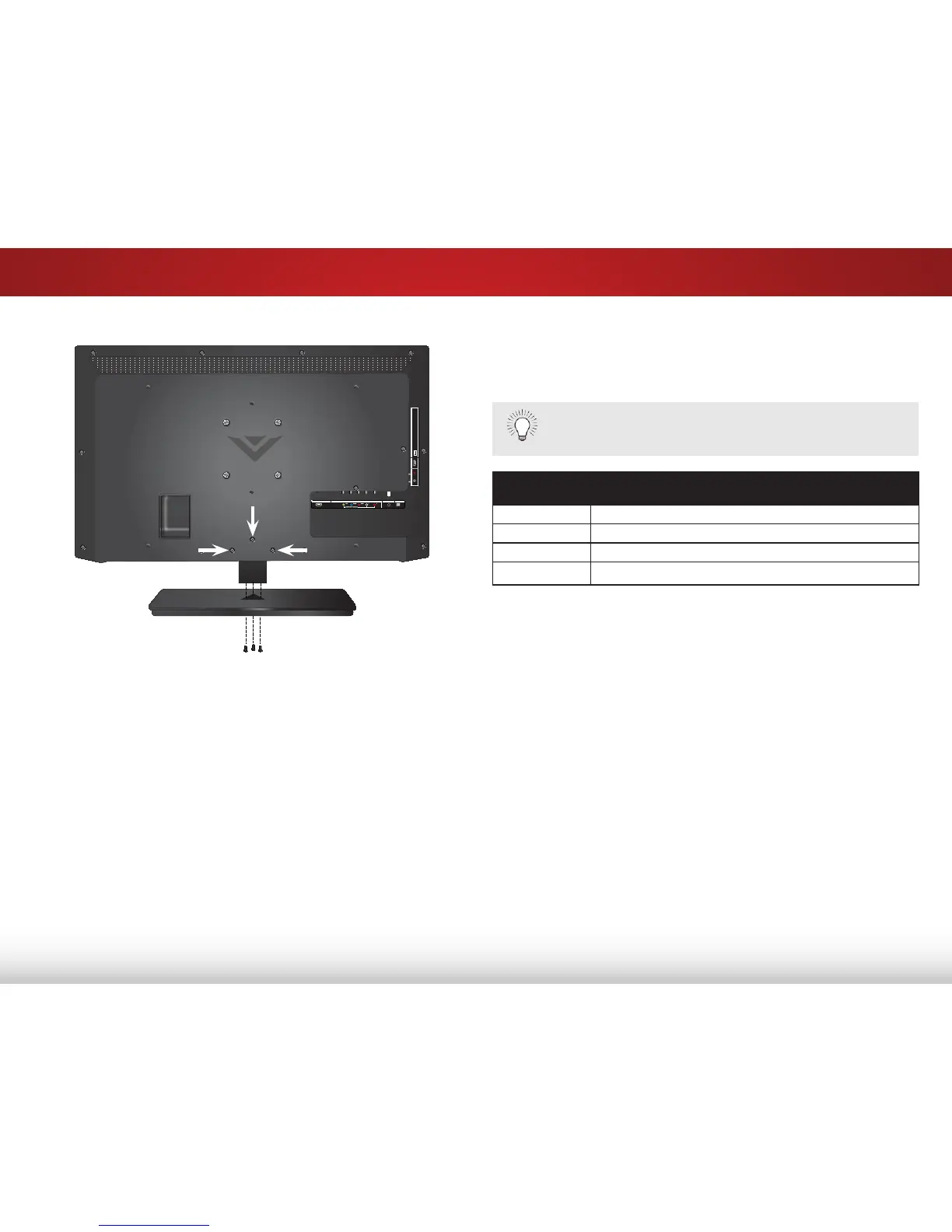

To install the base:
1. Place the TV screen-down on a certain, flat surface. To
prevent scratches or damage to the screen, place the TV on
a soft surface, such as carpet, rug, or blanket.
2. Align and insert the neck piece into the TV. Using a phillips
screwdriver, tighten three(3) M4 12mm phillips screws into
the back of the TV. (Holes indicated by arrows)
3. Align the base with the TV and tighten the three(3) T4 16mm
phillips screws into the base with a phillips screwdriver.
4. Place the TV on a stable, level surface.
Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult
the information below to find the appropriate mount for your TV
model:
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask someone to help you.
E320-A1
Screw Size: M4
Screw Pitch: 0.70mm
Screw Length: 10mm
Hole Pattern: 100mm (V) x 100mm (H)
Be sure the mount you choose is capable of supporting the
weight of the TV. After you have determined that you have the
correct mount for your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface.
Be sure the surface is clear of debris that can scratch or
damage the TV.
3. Remove the base by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following
the instructions that came with your mount.
Use only with a UL-listed wall mount bracket rated for the
weight/load of this TV. See
Appendix A - Specifications for
the weight of this TV.
AU DI O O U T
HD M I
US B
2
L
R
OP T IC A L
1( A R C)
HD M I
COM P O N E N T (B E T T E R )
DT V / T V
CA B LE / AN T E N N A

Vizio E320-A1 Specifications

General

Response time	8.5 ms
Display diagonal	32 \
Display resolution	1366 x 768 pixels
Native refresh rate	60 Hz
LED backlighting type	RGB-dynamic
Supported video modes	720p
Contrast ratio (dynamic)	200000:1
Display diagonal (metric)	80 cm
Screen format adjustments	16:9
Viewing angle, horizontal	176 °
Supported graphics resolutions	1366 x 768
3D	No
Placement supported	Horizontal
Analog signal format system	-
Audio system	SRS StudioSound / SRS TruSurround HD / SRS TruVolume
RMS rated power	10 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	36 W
Sustainability certificates	ENERGY STAR
Certification	UL, CUL, FCC Class B, Canada (BETS-7), HDMI 1.4b incl., CEC/ARC, Vizio AQ, Vizio PQ, Dolby Digital Plus, ENERGY STAR® 6.0, ATSC Spec A-65, EIA/CEA-766-A
Package depth	151 mm
Package width	802 mm
Package height	541 mm
Package weight	7431 g

Weight and Dimensions

Depth (with stand)	199 mm
Height (with stand)	491 mm
Weight (with stand)	6005 g
Depth (without stand)	75 mm
Width (without stand)	733 mm
Height (without stand)	443 mm
Weight (without stand)	5636 g
