Vizio E320-A1 User Manual

3
13
HDMI CABLE
HDMI technology transmits crystal-clear
digital multi-channel surround audio through
a single HDMI cable. Audio Return Channel-
enabled (ARC) TVs allow audio to be sent
over an already connected HDMI cable,
eliminating the need for a separate audio cable.
See Connecting an Audio Device - ARC on page
14.
• CFC 2-way Communication
(Auto setup)
• PCM, DTS, Dolby Digital
• 2.0-5.1 Scaleable Lossless
Digital Audio Connection
• Audio and Video Signals
BEST
HDMI
HDMI
OPTICAL/SPDIF CABLE
Optical/SPDIF cables transmit audio signals as
pulses of light through a cable made of plastic
fibers. Audio signals are digitally transmitted
between devices.
BETTER
• PCM Stream (Lossless)
• Dolby Digital 5.1 Channel
• DTS 5.1 Channel
• Digital Connection
• Audio Signal Only
Optical/SPDIF
DIGITAL OPTICAL AUDIO
GOOD
RCA or 3.5MM CABLE
AV cables (or Composite cables) are the
traditional way of connecting your devices to
your audio device. Audio signals are sent over
the red and white or 3.5mm connectors.
• Quality Stereo Connection
• 2.0 Channel
• Analog Connection
• Audio Signal Only
COMPONENT VIDEO
L R
ANALOG AUDIO/
HEADPHONE JACK
3.5mm

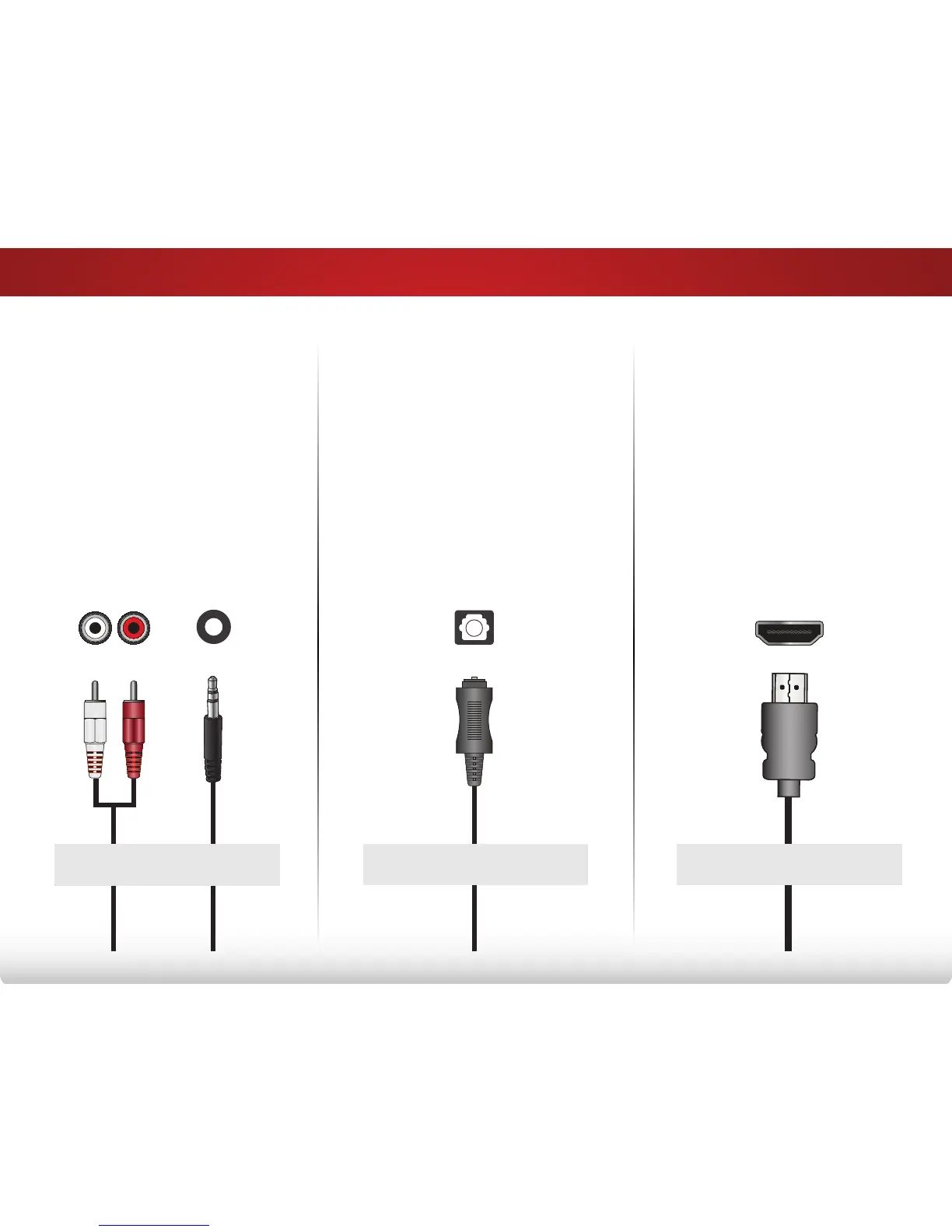

CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES

Vizio E320-A1 Specifications

General

Response time	8.5 ms
Display diagonal	32 \
Display resolution	1366 x 768 pixels
Native refresh rate	60 Hz
LED backlighting type	RGB-dynamic
Supported video modes	720p
Contrast ratio (dynamic)	200000:1
Display diagonal (metric)	80 cm
Screen format adjustments	16:9
Viewing angle, horizontal	176 °
Supported graphics resolutions	1366 x 768
3D	No
Placement supported	Horizontal
Analog signal format system	-
Audio system	SRS StudioSound / SRS TruSurround HD / SRS TruVolume
RMS rated power	10 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	36 W
Sustainability certificates	ENERGY STAR
Certification	UL, CUL, FCC Class B, Canada (BETS-7), HDMI 1.4b incl., CEC/ARC, Vizio AQ, Vizio PQ, Dolby Digital Plus, ENERGY STAR® 6.0, ATSC Spec A-65, EIA/CEA-766-A
Package depth	151 mm
Package width	802 mm
Package height	541 mm
Package weight	7431 g

Weight and Dimensions

Depth (with stand)	199 mm
Height (with stand)	491 mm
Weight (with stand)	6005 g
Depth (without stand)	75 mm
Width (without stand)	733 mm
Height (without stand)	443 mm
Weight (without stand)	5636 g
