Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult
the information below to find the appropriate mount for your TV
model:
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask someone to help you.
E400-B2 E480-B2
Screw Size: M4 M6
Screw Pitch: 0.7mm 1.0mm
Hole Pattern: 100mm (V) x 100mm (H) 200mm (V) x 200mm (H)
Be sure the mount you choose is capable of supporting the
weight of the TV. After you have determined that you have the
correct mount for your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface.
Be sure the surface is clear of debris that can scratch or
damage the TV.
3. Remove the base by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following
the instructions that came with your mount.
Use only with a UL-listed wall mount bracket rated for the
weight/load of this TV. See
Appendix B - Specifications on
page 47
for the weight of this TV.

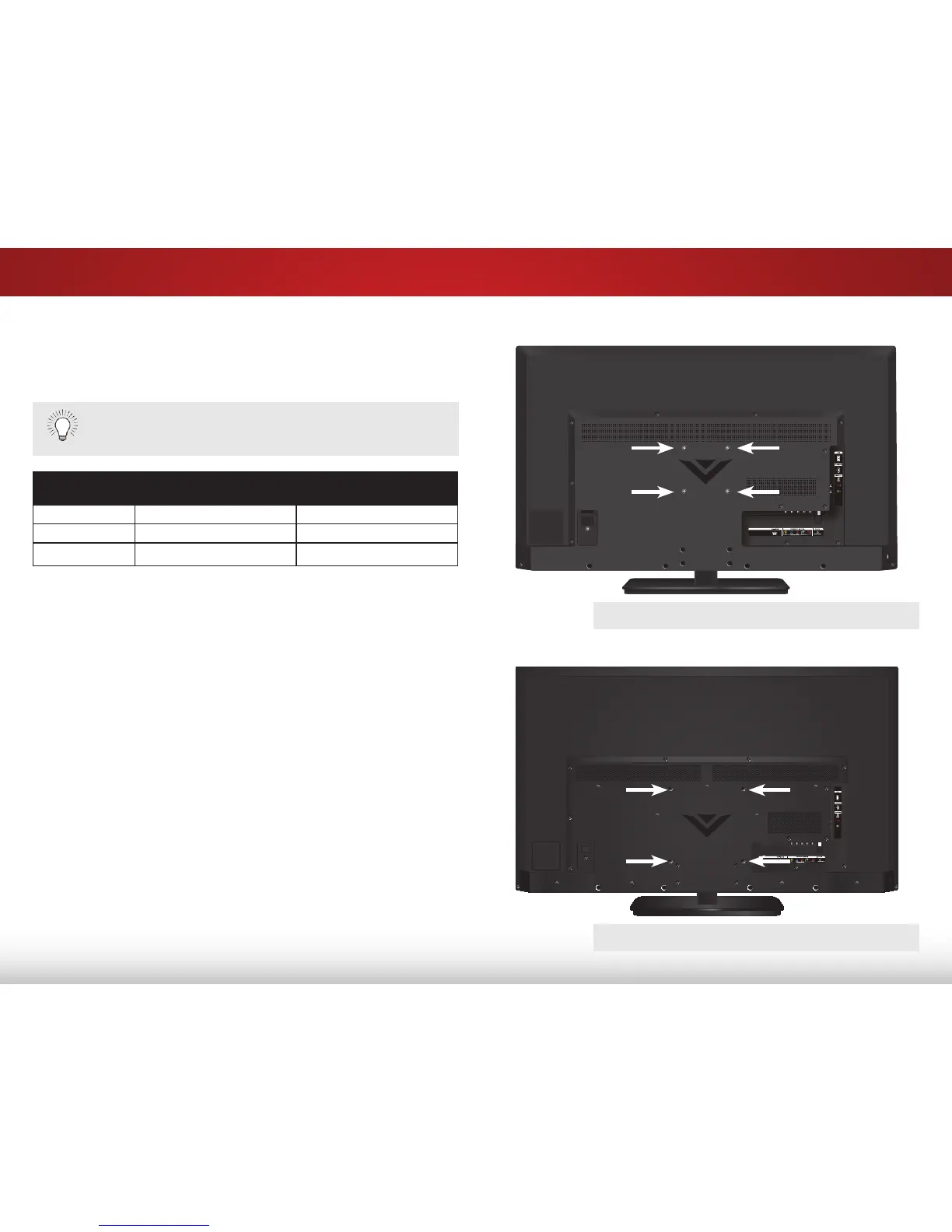

WALL MOUNT SCREW LOCATION - E400-B2
WALL MOUNT SCREW LOCATION - E480-B2
