Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult
the information below to find the appropriate mount for your TV
model:
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask someone to help you.
M321i-A2 M471i-A2
Screw Size: M4 M6
Screw Pitch: 0.70mm 1.00mm
Hole Pattern: 100mm (V) x 100mm (H) 300mm (V) x 300mm (H)
Be sure the mount you choose is capable of supporting the
weight of the TV. After you have determined that you have the
correct mount for your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface.
Be sure the surface is clear of debris that can scratch or
damage the TV.
3. Remove the base by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following
the instructions that came with your mount.
Use only with a UL-listed wall mount bracket rated for the
weight/load of this TV. See
Appendix B - Specifications
for the
weight of this TV.
For some wall mounts, you may want to use cables
with right-angle connectors. This allows the TV to rest
closer to the wall.
BACK OF TV
4. Align the Stand with the back of the TV. Use a Phillips
screwdriver to insert and tighten the four(4) included
M6 x 18mm Phillips screws into the holes on the back of the TV.
5. When you are finished, place the TV on a stable, level surface.

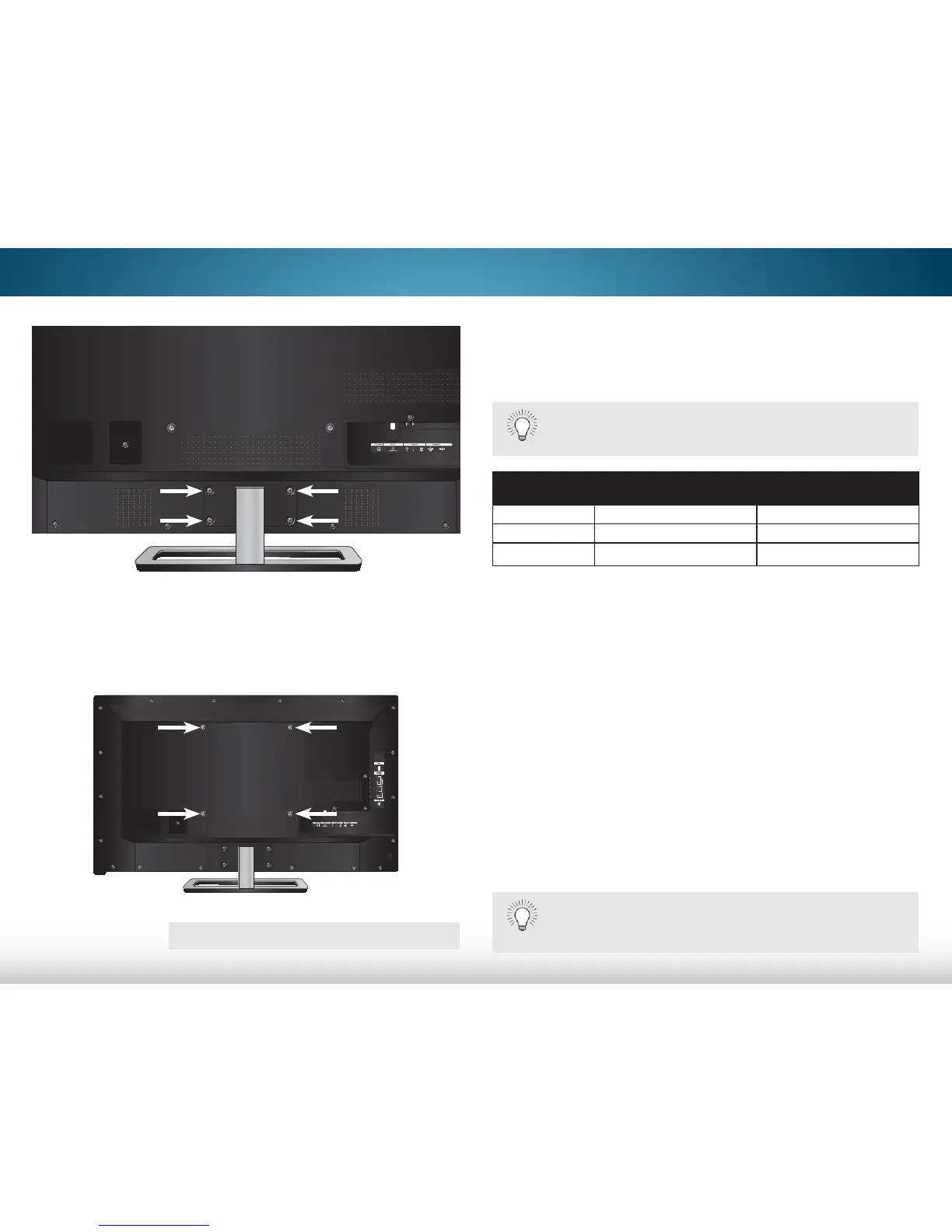

WALL MOUNT SCREW LOCATION
