Vizio M551d-A2 User Manual

1
5
Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult
the information below to find the appropriate mount for your TV
model:
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask someone to help you.
M501d-A2 M551d-A2 M651d-A2
Screw Size: M6 M6 M6
Screw Pitch: 1.00mm 1.00mm 1.00mm
Hole Pattern:
300mm x
300mm
400mm x
400mm
400mm x
400mm
Be sure the mount you choose is capable of supporting the
weight of the TV. After you have determined that you have the
correct mount for your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface.
Be sure the surface is clear of debris that can scratch or
damage the TV.
3. Remove the base by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following
the instructions that came with your mount.
Use only with a UL-listed wall mount bracket rated for the
weight/load of this TV. See
Appendix B - Specifications for the
weight of this TV.
For some wall mounts, you may want to use cables
with right-angle connectors. This allows the TV to rest
closer to the wall.
BACK OF TV
4. Align the Stand with the back of the TV. Use a Phillips
screwdriver to insert and tighten the four (4) included
M6 x 18mm Phillips screws into the holes on the back of the TV.
5. When you are finished, place the TV on a stable, level surface.

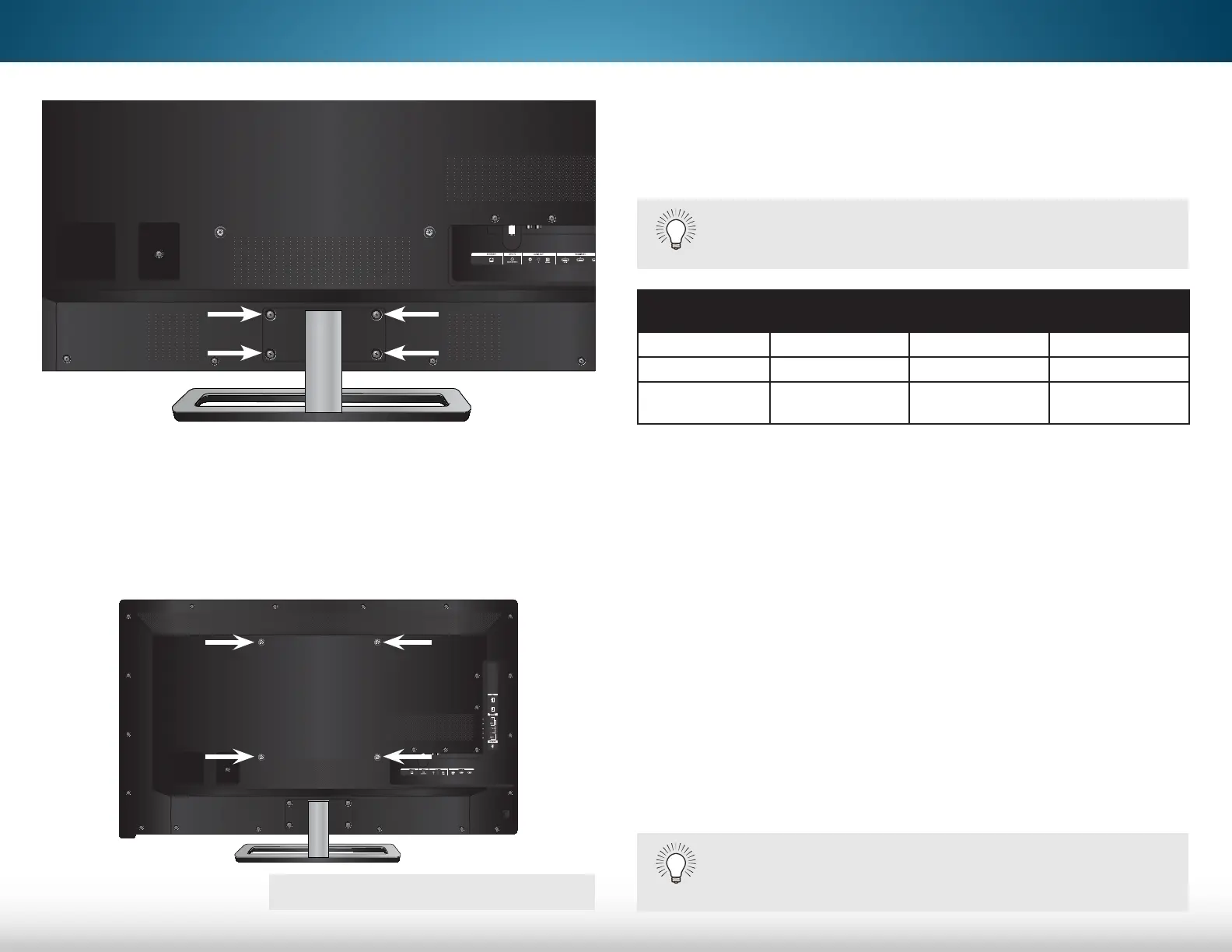

WALL-MOUNT SCREW LOCATIONS

Vizio M551d-A2 Specifications

General

Screen shape	Flat
LED backlight	Yes
Display diagonal	55 \
Display brightness	350 cd/m²
Display resolution	- pixels
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Razor LED
Supported video modes	1080p
Contrast ratio (typical)	-
Display number of colors	1.07 billion colors
Cables included	AC
Package type	Box
Package depth	137.9 mm
Package width	1406.9 mm
Package height	992.1 mm
Package weight	27501 g
PC in (D-Sub)	No
Remote (IR) output	1
HDMI ports quantity	4
USB 2.0 ports quantity	2
Product color	Black
Panel mounting interface	400 x 400 mm
Audio decoders	DTS, DTS Studio Sound, DTS TruSurround, DTS TruVolume
RMS rated power	15 W
Wi-Fi standards	Wi-Fi 4 (802.11n)
Control type	Wireless
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	91 W

Weight and Dimensions

Depth (with stand)	257 mm
Width (with stand)	1234.7 mm
Height (with stand)	776.2 mm
Weight (with stand)	22729 g
Depth (without stand)	44.5 mm
Height (without stand)	723.9 mm
Weight (without stand)	20212 g
