Vizio M602i-B3 User Manual

3
17

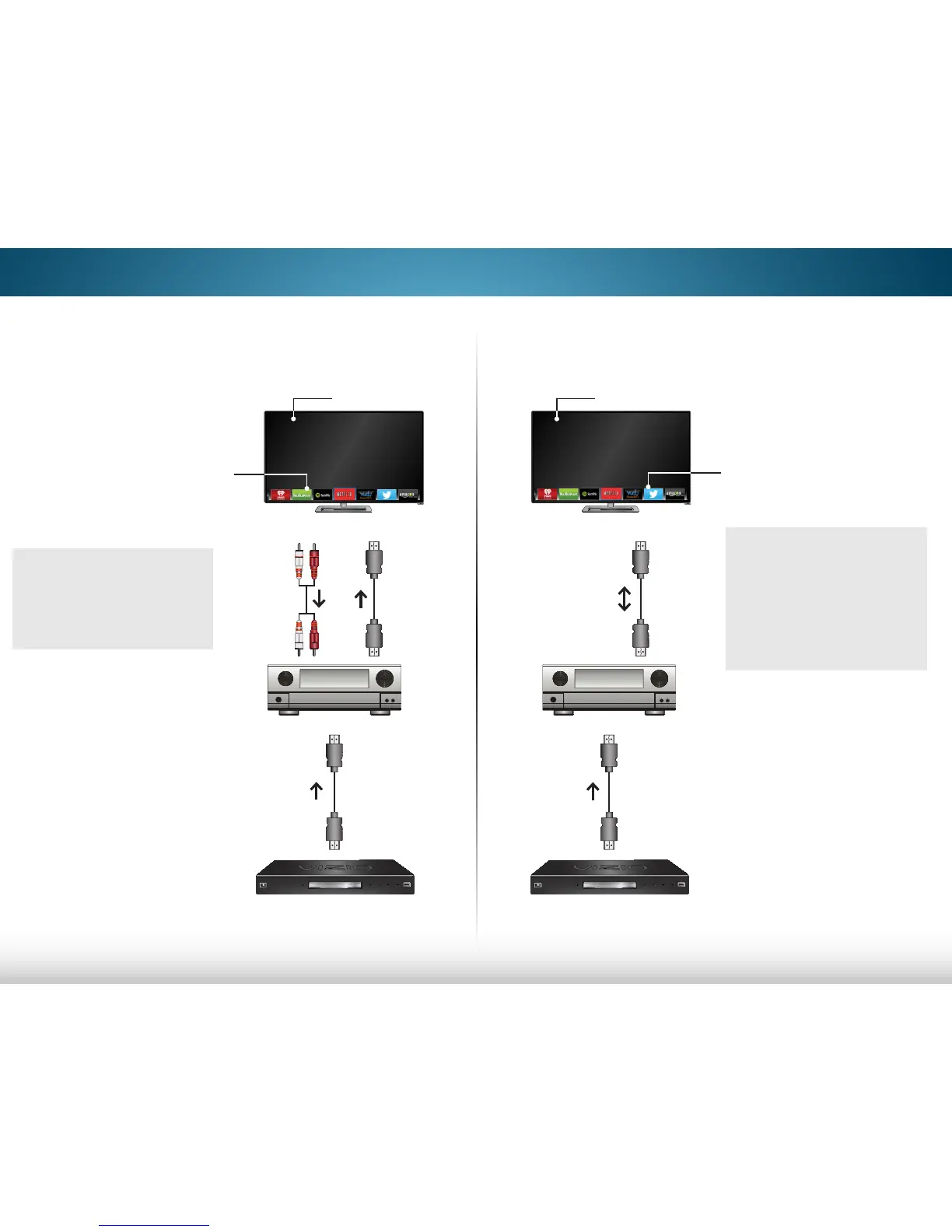

Without HDMI ARC With HDMI ARC
HDMI
HDMI
Your Home Audio Receiver
Your Blu-Ray Player
RCA (Audio)
Your TV
HDMI
HDMI
Your Home Audio Receiver
Your Blu-Ray Player
Your TV
With an HDMI ARC setup, the
audio connection between
your TV and Home Audio
Receiver can be removed.
The HDMI cable will transmit
audio signal to and from
your TV with an all-digital
audio/video connection.
Without an HDMI ARC setup,
your TV will transmit audio
signal from the built-in tuner
and VIA apps to your home
audio receiver through a
separate audio connection.
Built-in Tuner
Built-in Tuner
VIZIO Internet Apps Plus
®
VIZIO Internet Apps Plus
®
CONNECTING AN AUDIO DEVICE - ARC

Vizio M602i-B3 Specifications

General

Screen Type	led
Wall Mount	400mm x 400mm
Screen Size	60 inches
Refresh Rate	240hz
USB Ports	1
Digital Optical Audio Outputs	1
Analog Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
3D	no
Width with Stand	53.63 inches
Depth without Stand	2.5 inches
Height without Stand	30.9 inches
Net Weight without Stand	46.4 pounds
