Vizio P602ui-B3 Quick Start Guide

6

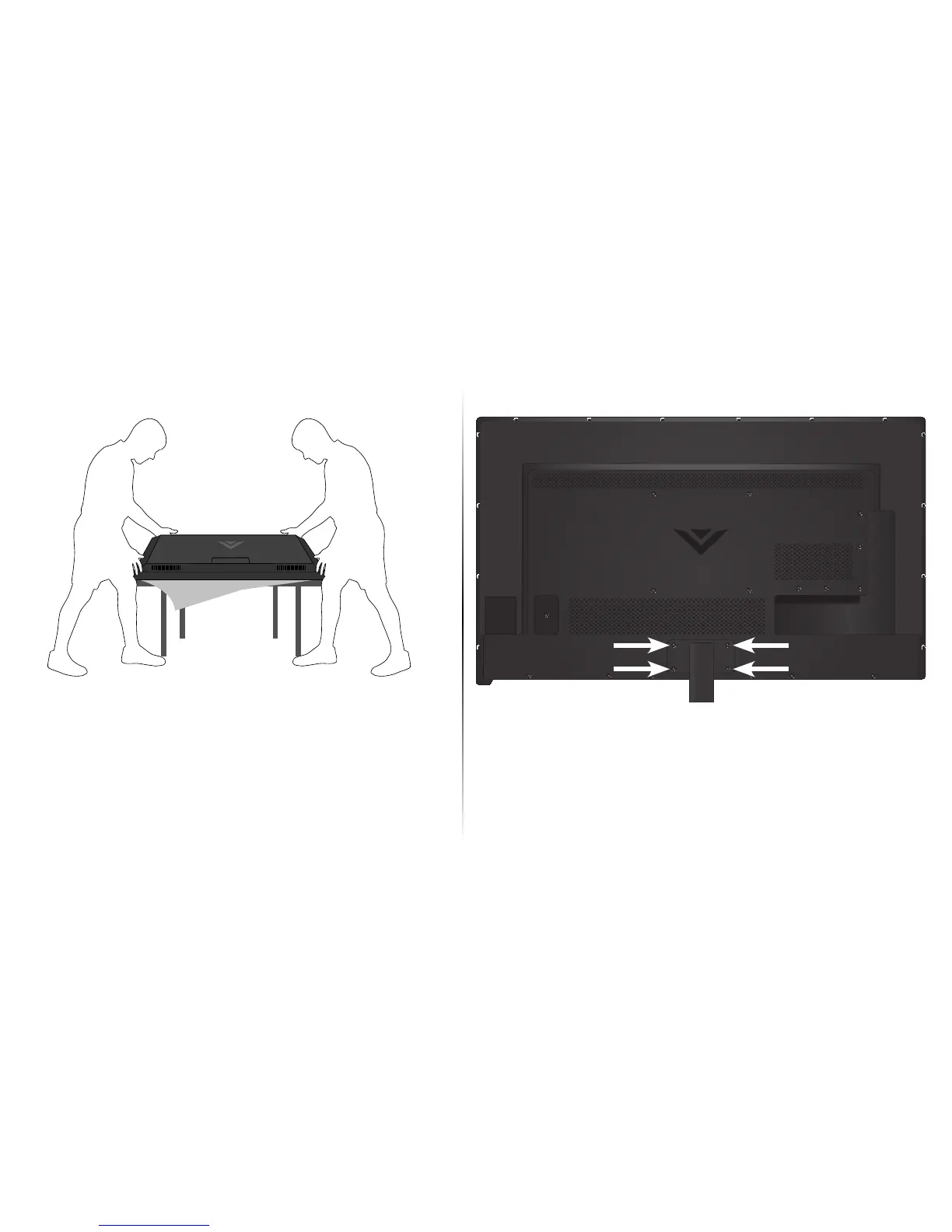

INSTALLING THE BASE
1
It is recommended that two people
take part in the base installation.
Place the TV screen-down on a clean, flat
surface. To prevent scratches or damage to
the screen, place the TV on a soft surface,
such as a blanket.
Align the neck piece with the back of the TV.
Use a Phillips screwdriver to insert and tighten
four (4) M5 x 20mm Phillips screws into the holes
on the back of the TV.
2

Vizio P602ui-B3 Specifications

General

Screen Type	led
Wall Mount	400mm x 400mm
Screen Size	60 inches
Refresh Rate	240hz
USB Ports	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
Remote Control	smart
3D	no
Width with Stand	53.59 inches
Depth without Stand	2.5 inches
Height without Stand	30.9 inches
Net Weight without Stand	48.7 pounds
