VIZIO SV420M & SV470M User Manual
10
www.VIZIO.com

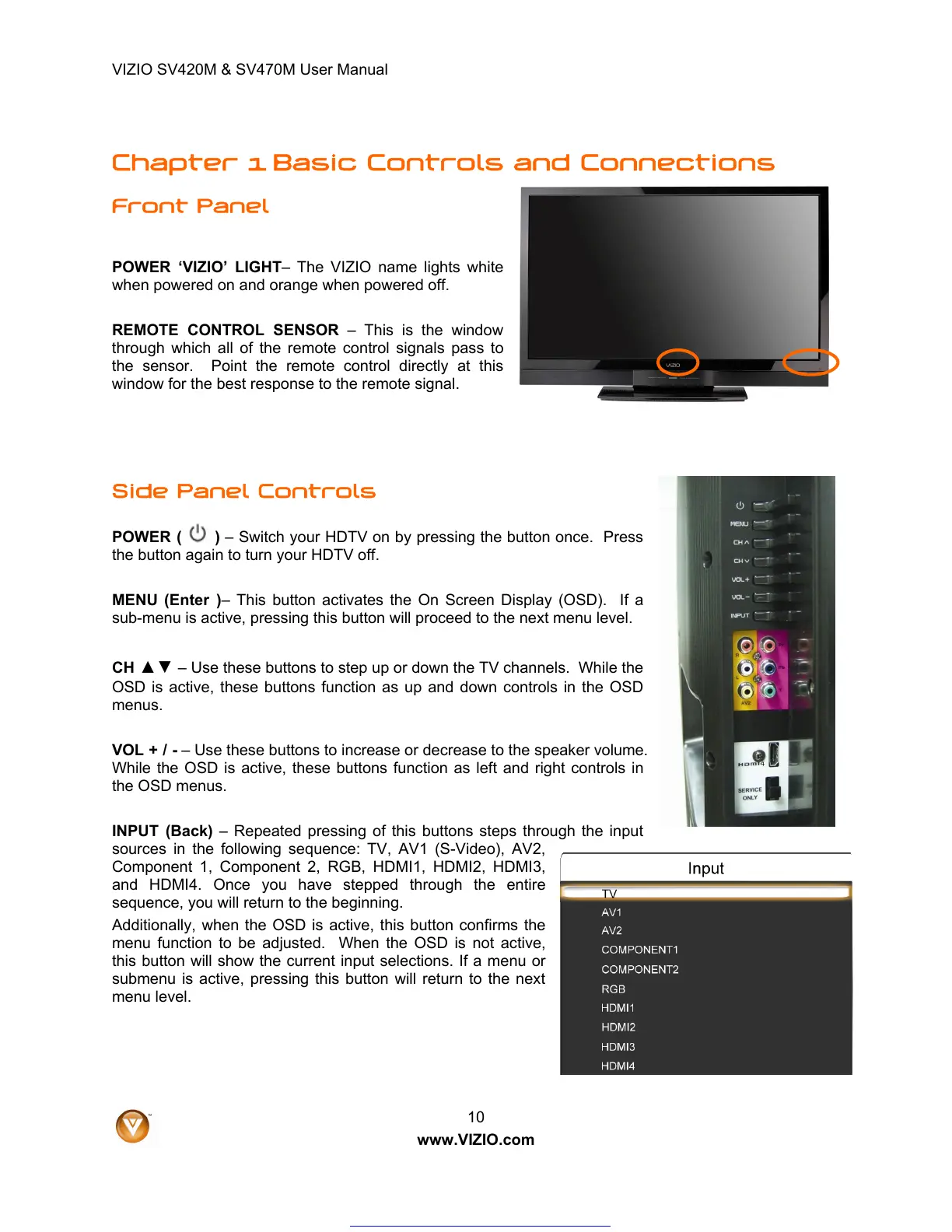

Chapter 1 Basic Controls and Connections
Front Panel
POWER ‘VIZIO’ LIGHT– The VIZIO name lights white
when powered on and orange when powered off.
REMOTE CONTROL SENSOR – This is the window
through which all of the remote control signals pass to
the sensor. Point the remote control directly at this
window for the best response to the remote signal.
Side Panel Controls
POWER ( ) – Switch your HDTV on by pressing the button once. Press
the button again to turn your HDTV off.
MENU (Enter )– This button activates the On Screen Display (OSD). If a
sub-menu is active, pressing this button will proceed to the next menu level.
CH
!" – Use these buttons to step up or down the TV channels. While the
OSD is active, these buttons function as up and down controls in the OSD
menus.
VOL + / - – Use these buttons to increase or decrease to the speaker volume.
While the OSD is active, these buttons function as left and right controls in
the OSD menus.
INPUT (Back) – Repeated pressing of this buttons steps through the input
sources in the following sequence: TV, AV1 (S-Video), AV2,
Component 1, Component 2, RGB, HDMI1, HDMI2, HDMI3,
and HDMI4. Once you have stepped through the entire
sequence, you will return to the beginning.
Additionally, when the OSD is active, this button confirms the
menu function to be adjusted. When the OSD is not active,
this button will show the current input selections. If a menu or
submenu is active, pressing this button will return to the next
menu level.
