VIZIO SV420M & SV470M User Manual
12
www.VIZIO.com

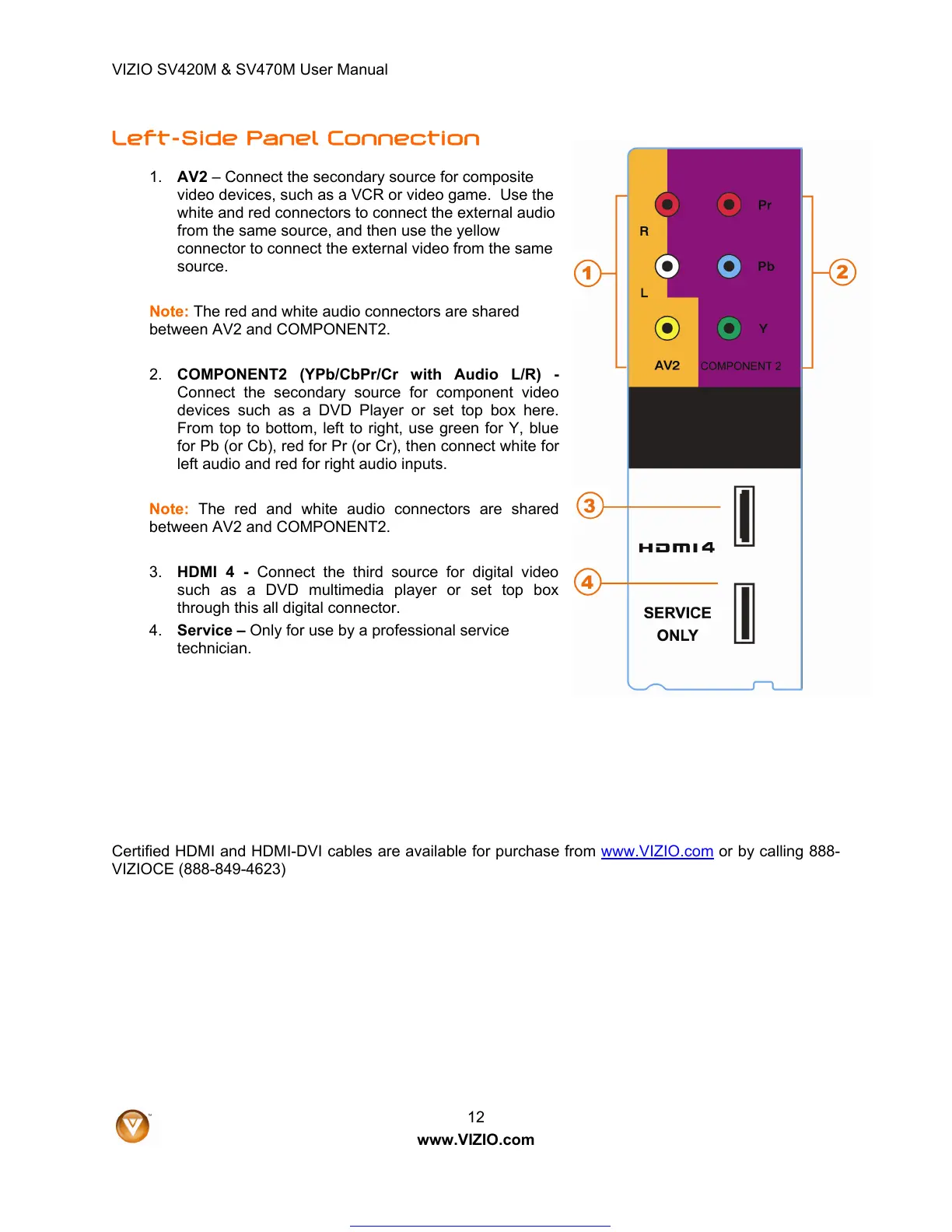

Left-Side Panel Connection
1. AV2 – Connect the secondary source for composite
video devices, such as a VCR or video game. Use the
white and red connectors to connect the external audio
from the same source, and then use the yellow
connector to connect the external video from the same
source.
Note: The red and white audio connectors are shared
between AV2 and COMPONENT2.
2. COMPONENT2 (YPb/CbPr/Cr with Audio L/R) -
Connect the secondary source for component video
devices such as a DVD Player or set top box here.
From top to bottom, left to right, use green for Y, blue
for Pb (or Cb), red for Pr (or Cr), then connect white for
left audio and red for right audio inputs.
Note: The red and white audio connectors are shared
between AV2 and COMPONENT2.
3. HDMI 4 - Connect the third source for digital video
such as a DVD multimedia player or set top box
through this all digital connector.
4. Service – Only for use by a professional service
technician.
Certified HDMI and HDMI-DVI cables are available for purchase from www.VIZIO.com
or by calling 888-
VIZIOCE (888-849-4623)
