VM Audio ENCORE ECW120 - Ported Box Enclosure Dimensions; Speaker Wiring; Dual Speaker Wiring - Series Connection; Dual Speaker Wiring - Parallel Connection

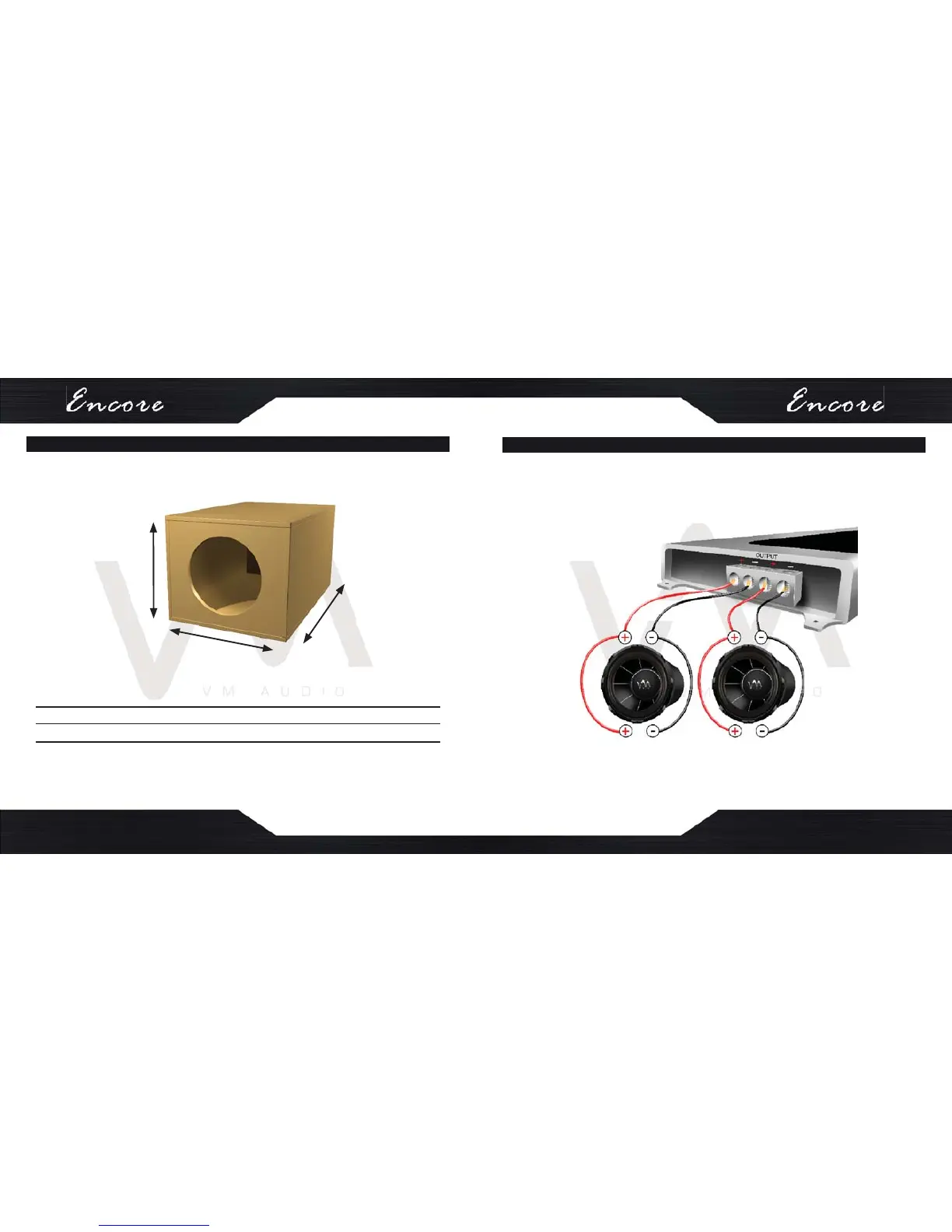

ENCLOSURE DETAILS
A
B
C
Sealed Box
5
ECW100
ECW120
16 inches (A)
18 inches (A)
ENCLOSURE DIMENSIONS
13 inches (B)
15 inches (B)
7.5 inches (C)
10 inches (C)
Box Volume
0.58 cu. ft
1.1 cu. ft.
Wood Thickness = 0.75”
DUAL SPEAKER WIRING
Parallel Connection
WARNING! Verify the ampli er is designed to drive 2 ohm
speaker loads on each channel.
