R750EU5 - IE3 - TE4 - IE4 - ISE4
English 63 Ed.8 / 10-2012
GB

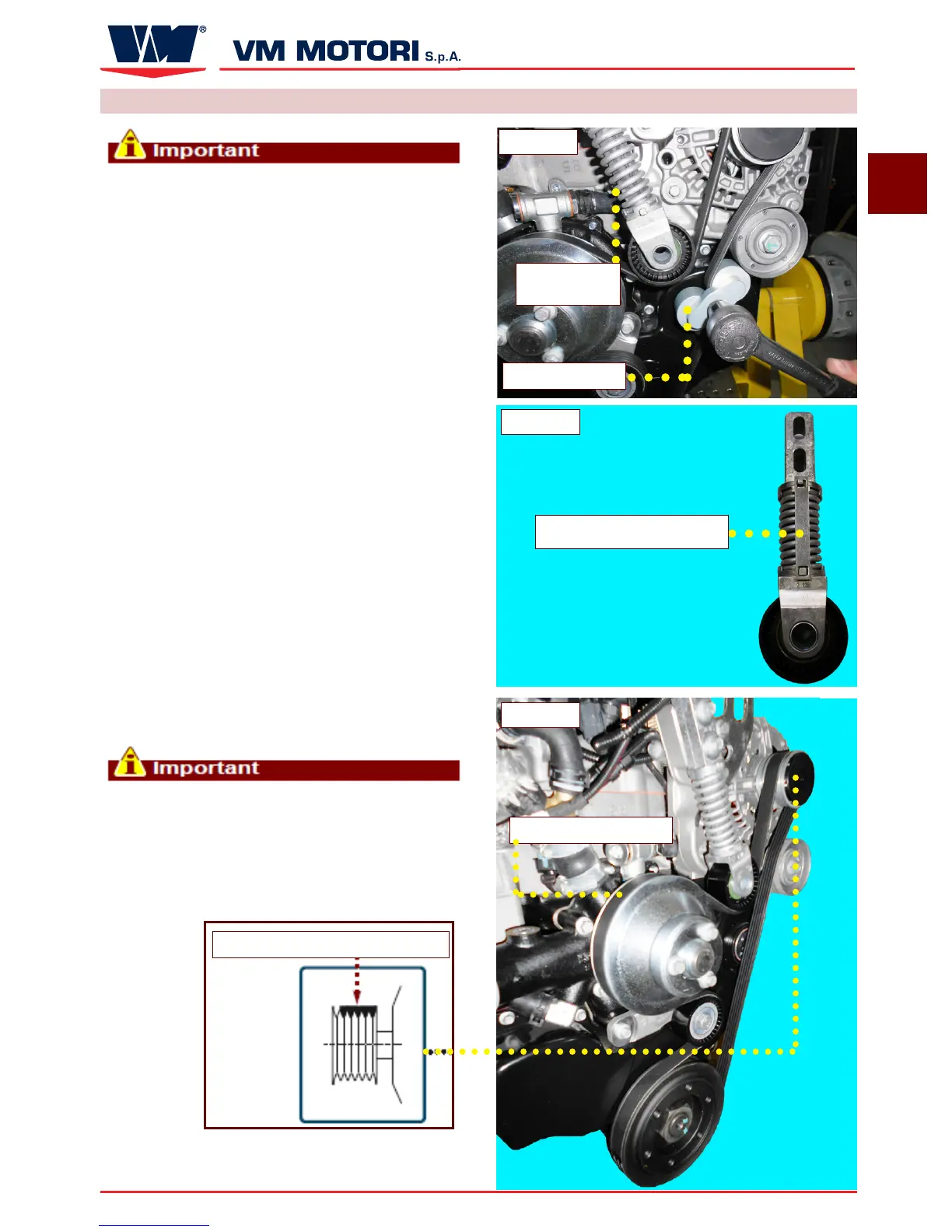

CHANGING THE BELT (TYPE POLY-V) WITH AUTOMATIC BELT TENSIONER
special tool (A)
tensioner
(B)
locking bracket (C)
Trasmission Belt (D)
Trasmission Belt (D)
Special equipment must be used to
replace the belt with linear turnbuckle.
This operation must be performed by
an authorised repair shop.
Follow the procedure below.
1- Turn off the engine and remove the
ignition key.
2- Let the engine cool down adequately to
avoid being burnt.
3 - Rotate the special tool (A) in any anti-
clockwise direction so that the turnbuckle
(B) becomes compressed (Photo 1).
4 - Insert the locking clamp (C) as shown
in photo 2.
5 - Remove the belt (D).
6 - Install the new belt and position it as
shown in photo 3.
7 - Rotate the special tool (A) in an anti-
clockwise direction so that the turnbuckle
(B) becomes compressed, and remove
the locking clamp.
Before tightening the belt, make sure
that it is correctly positioned in the
pulley seats.
Photo 1
Photo 2
Photo 3
