Installation and Operating Manual
I/H Converter DSG-B03212
DSG-B07212
J.M. Voith SE & Co. KG │ Division Digital Ventures
View of I/H converter

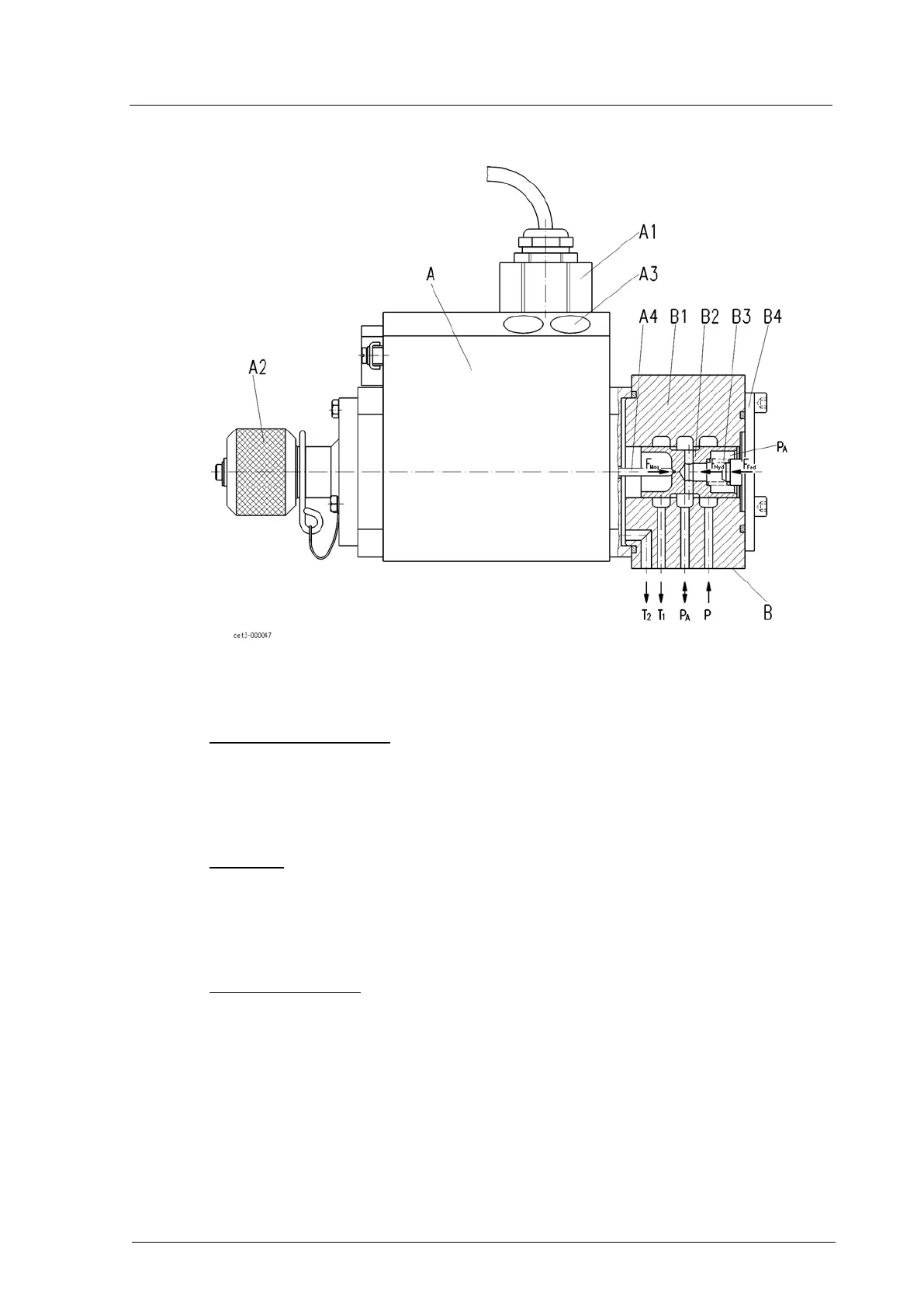

Fig. 1: Sectional view of I/H converter
Voith control magnet VRM (A)
With integrated magnetic force control
Electrical connection (A1)
Manual opertion knob (A2)
Potentiometers X0 and X1 (A3)
Tappet for power transmission (A4)
Slide valve (B)
With pressure-reducing arrangement
Control housing (B1)
Control piston (B2)
Control spring (B3)
Cover (B4)
Hydraulic connections
Supply pressure P
Output pressure PA
Tank return line T1
Tank return line of leakage T2
Magnetic force FMag
Spring force FFed
Hydraulic force FHyd
