39
Compact
4
25
212
2
3
12
28
20
295
10
300
3

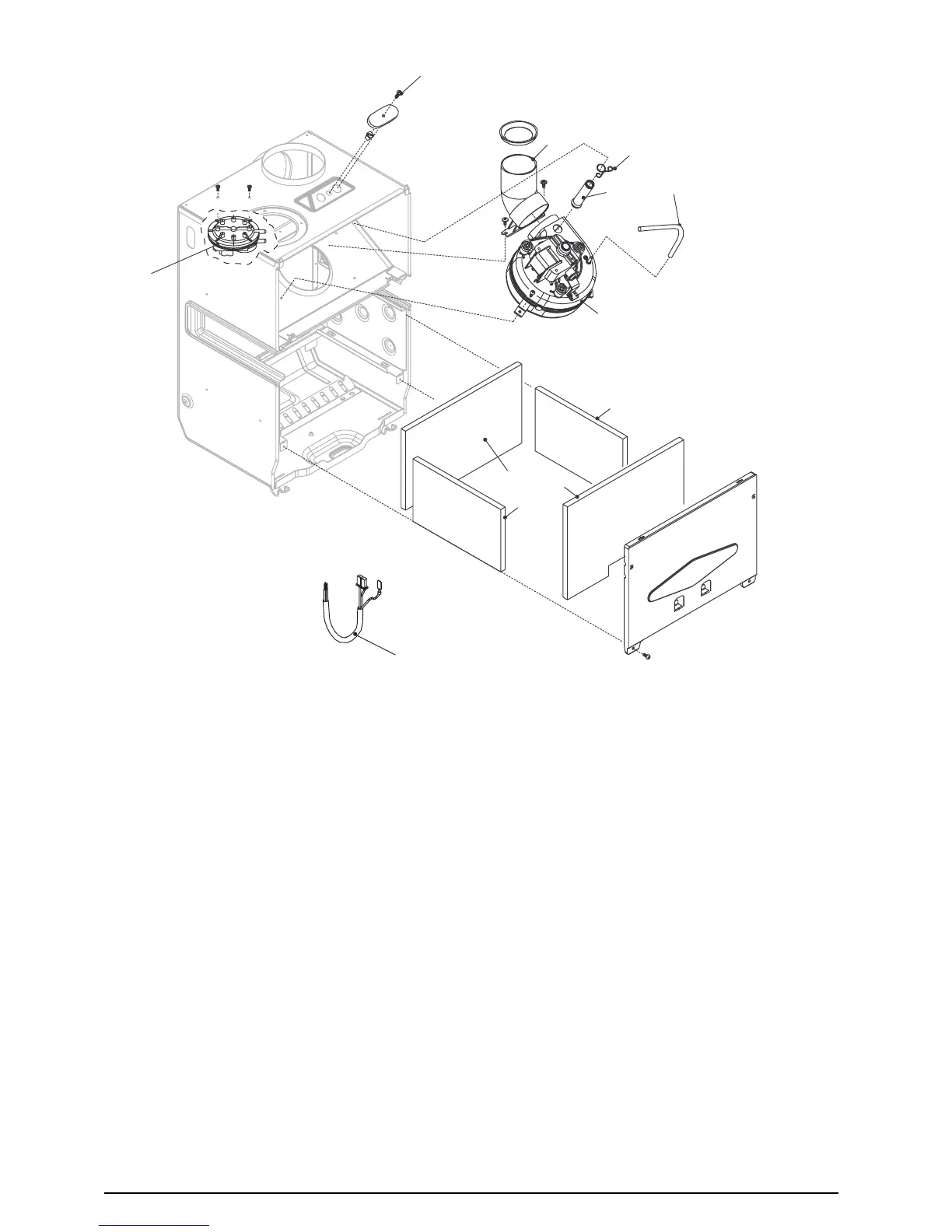

POS. DESCRIPTION 24 28
2 Back insulating panel 2230 10023909
3 Lateral insulating panel 2231 2231
4 Front insulating panel 2232 10023910
10 Fan 10020793 10023907
12 Connection 2237 2237
20 Fumes testing connection pipe 10020627 10020627
25 Pressure diff. switch 8195 10023908
28 Stop clip 10020626 10020626
212 Screw 5080 5080
295 Silicone tube 1457 1457
300 Wiring harnes 10024067 10024067
