Volair Sim SIM UNIVERSAL FLIGHT - Step 3: Center Monitor Support

Page 5 of 16

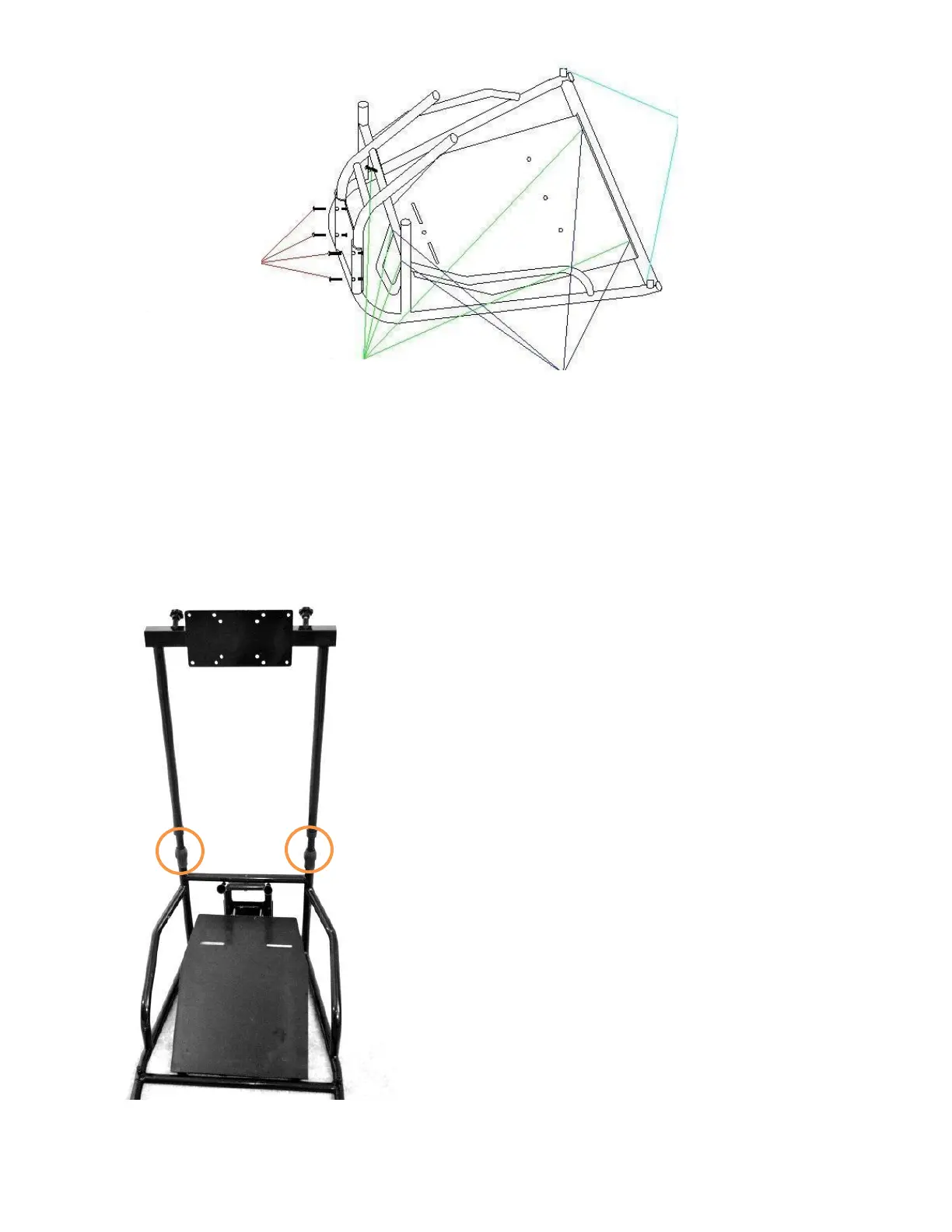

FIGURE 2B: MONITOR SUPPORT BASE WITH PEDAL TRAY
STEP 3: CENTER MONITOR SUPPORT
Attach center monitor support to monitor base as shown in FIGURE 3. Do not tighten the plastic adjustment nuts (circled
below) all the way at this time since you will want to adjust the height after installation of monitors.
FIGURE 3: ATTACHING CENTER MONITOR SUPPORT TO MONITOR
BASE
FOUR (4) M6*25MM BUTTON
HEAD MACHINE SCREWS (NO. 1)
(PRE-INSTALLED)
FOUR (4) M6 SELF-LOCKING NUTS (NO. 4)
TWO (2) M8*16MM
SOCKET CAP MACHINE
SCREWS (NO. 3)
FOUR (4) M6*30 MM BUTTON
HEAD MACHINE SCREWS (NO. 2)
