01-106

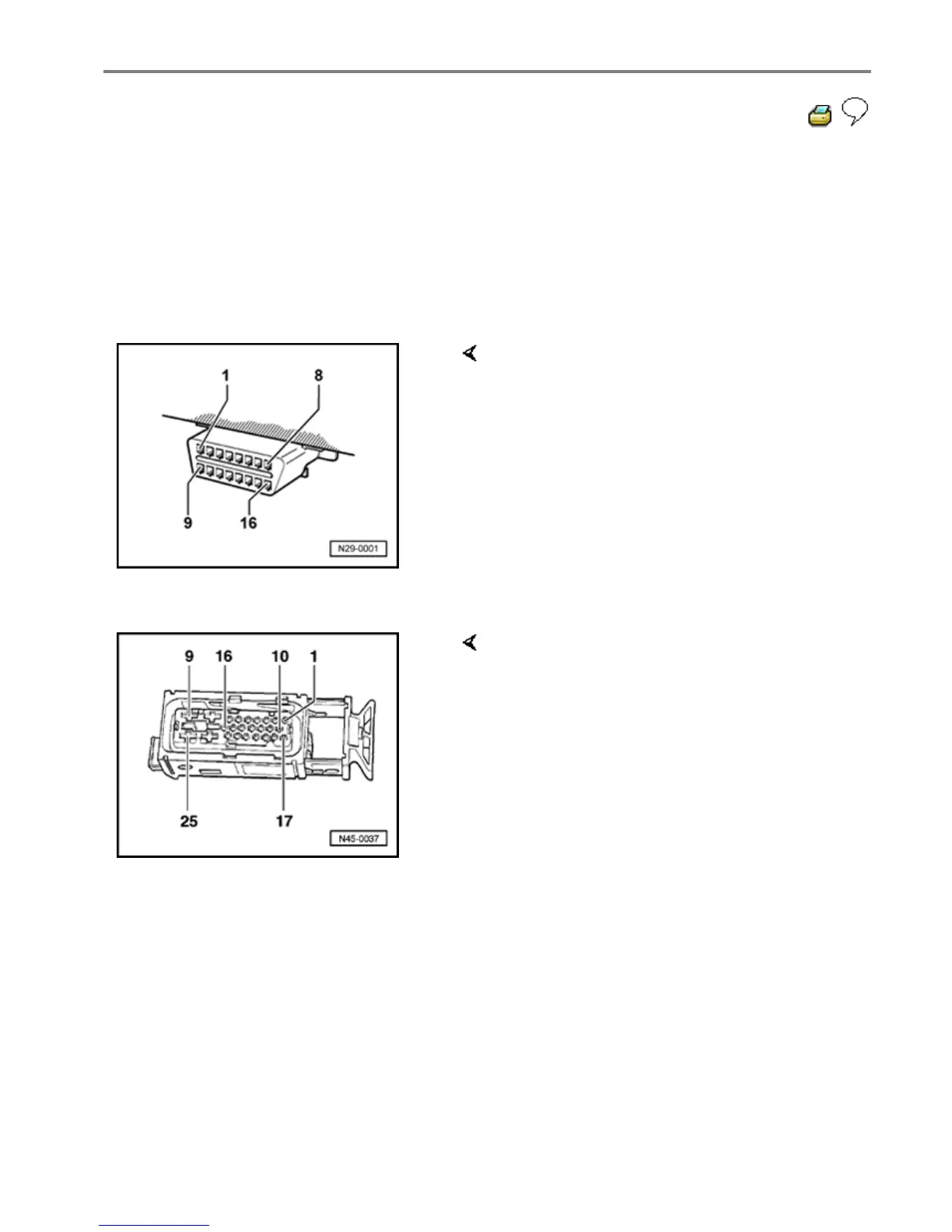

Multi-pin connector with contact
assignment
Note:
All contacts not listed are currently not
assigned and must never be connected to
other components!
Contact assignment of connectors for
voltage supply and On Board Diagnostic
(OBD) with V.A.G 1551 Scan Tool
Contact
4
= Ground (terminal 31)
Contact
16
= Positive (terminal 30) to S12
Contact
7
= K wire to contact 7 of multi-
pin connector T25 of ABS
control module (w/EDL) -
J104-
Contact assignment of connector T25
wiring harness/ABS control module
(w/EDL) -J104-
Ст
р
. 5 из 31ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical chec
k
