CONTROLS
AND
EQUIPMENT

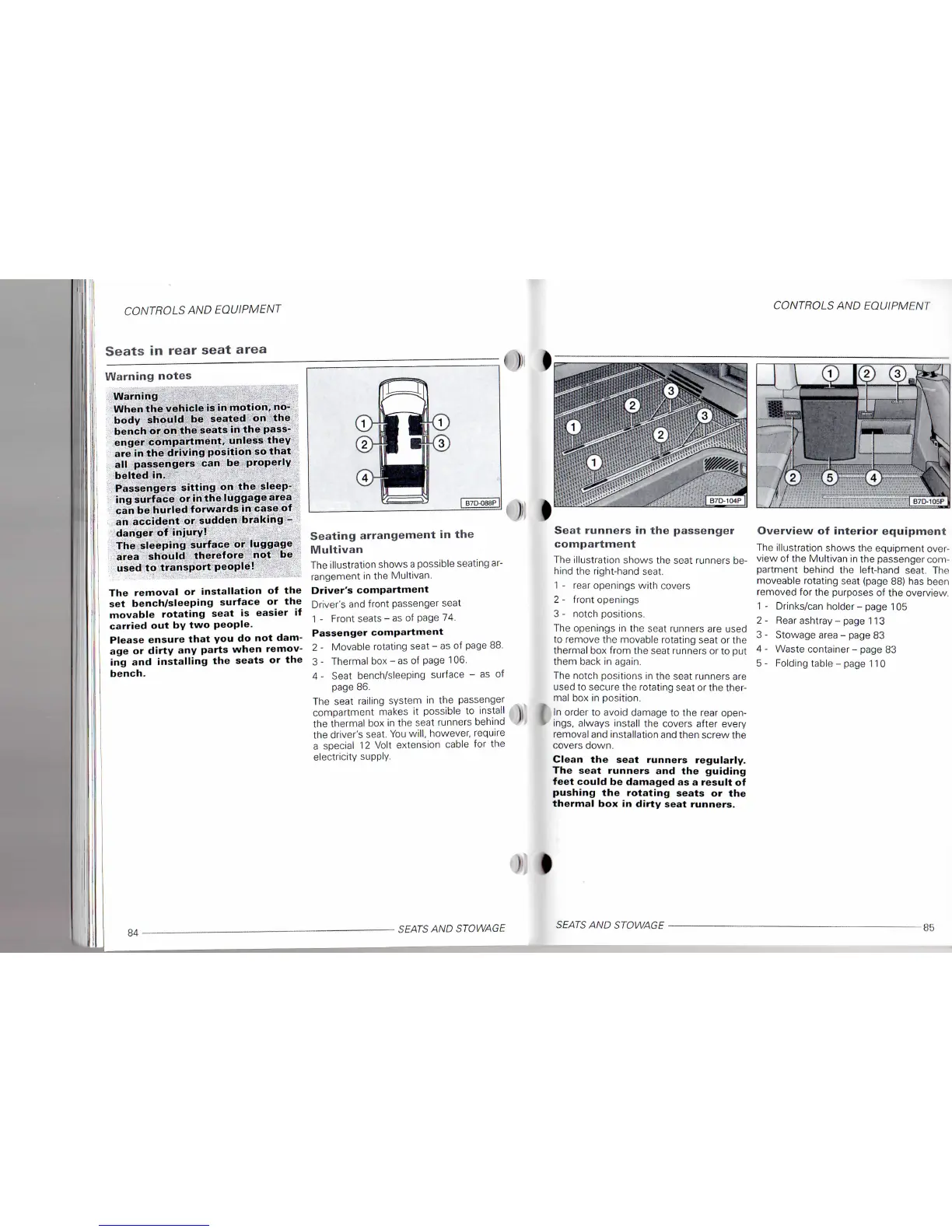

Seats in rear seat area
Warning notes
Warning
When the vehicle is in motion, no-
body should be seated on the
bench or on the seats in the pass-
enger compartment, unless they
are in the driving position so that
all passengers can be properly
belted in.
Passengers sitting on the sleep-
ing surface or in the luggage area
can be hurled forwards in case of
an accident or sudden braking -
danger of injury!
The sleeping surface or luggage
area should therefore not be
used to transport people!
The removal or installation of the
set bench/sleeping surface or the
movable rotating seat is easier if
carried out by two people.
Please ensure that you do not dam-
age or dirty any parts when remov-
ing and installing the seats or the
bench.
CONTROLS
AND
EQUIPMENI
Seating arrangement
in the
Muitivan
The illustration shows a possible seating ar-
rangement in the Muitivan.
Driver's compartment
Driver's and front passenger seat
1 - Front seats - as of page 74.
Passenger compartment
2 - Movable rotating seat - as of page 88.
3 - Thermal box - as of page 106.
4 - Seat bench/sleeping surface - as of
page 86.
The seat railing system in the passenger
compartment makes it possible to install \
the thermal box in the seat runners behind '
the driver's seat. You
will,
however, require
a special 12 Volt extension cable for the
electricity supply.
Seat runners
in the
passenger
compartment
The illustration shows the seat runners be-
hind the right-hand seat.
1 - rear openings with covers
2 - front openings
3 - notch positions.
The openings in the seat runners are used
to remove the movable rotating seat or the
thermal box from the seat runners or to put
them back in again.
The notch positions in the seat runners are
used to secure the rotating seat or the ther-
mal box in position.
In order to avoid damage to the rear open-
ings,
always install the covers after every
removal and installation and then screw the
covers down.
Clean the seat runners regularly.
The seat runners and the guiding
feet could be damaged as a result of
pushing the rotating seats or the
thermal box in dirty seat runners.
Overview
of
interior equipment
The illustration shows the equipment over-
view of the Muitivan in the passenger com-
partment behind the left-hand seat. The
moveable rotating seat (page 88) has been
removed for the purposes of the overview.
1 - Drinks/can holder - page 105
2-
Rear ashtray - page 113
3 - Stowage area - page 83
4-
Waste container - page 83
5 - Folding table - page 110
84 -
SEATS
AND
STOWAGE
SEATS
AND
STOWAGE
85
