CONTROLS
AND EQUIPMENT
CONTROLS
AND
EOUII'MI
Nl

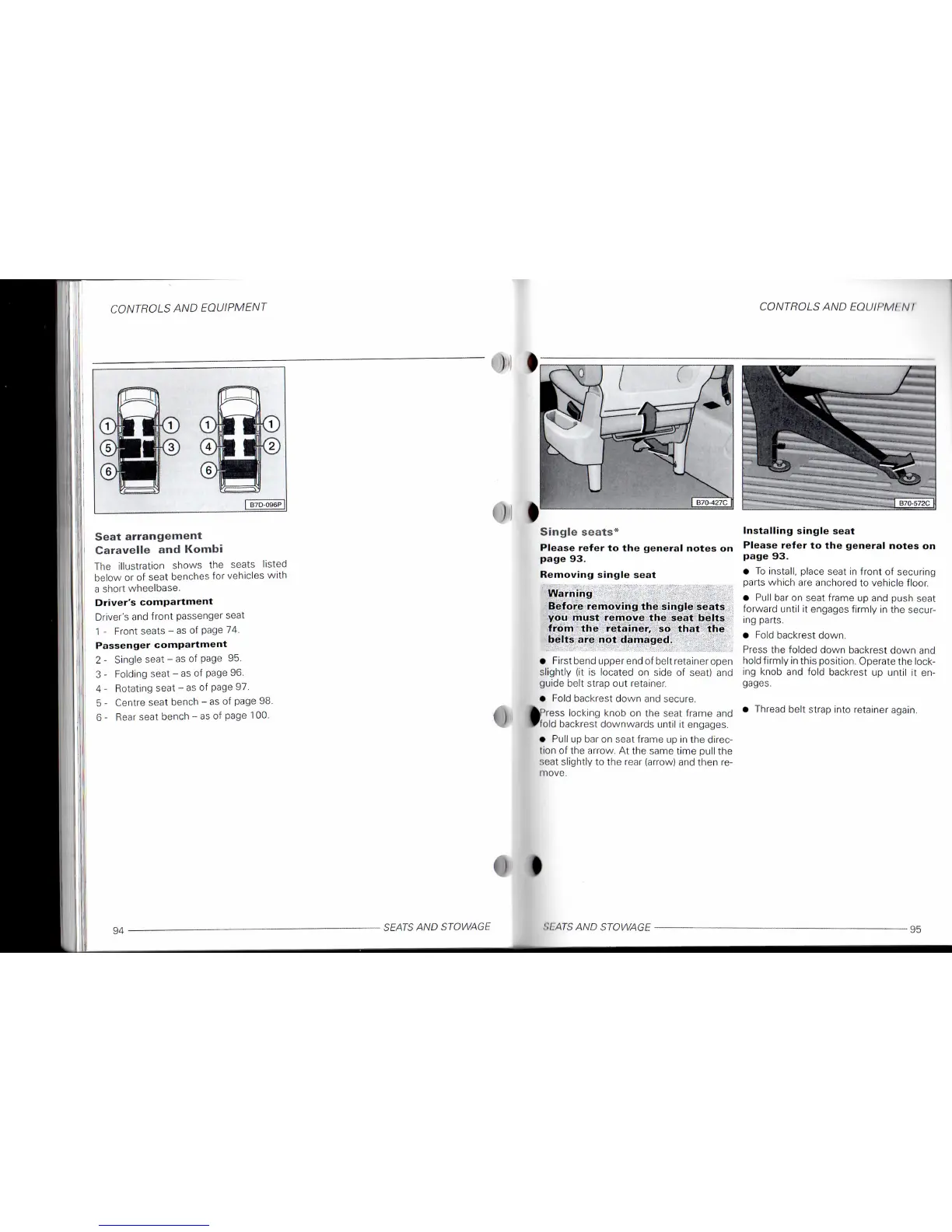

Seat
arrangement
Caravelle
and
Konibi
The illustration shows the seats listed
below or of seat benches for vehicles
with
a
short whcelbase.
Driver's
compartment
Driver's and
front
passenger seat
1 - Front seats - as of page 74.
Passenger
compartment
2
- Single seat - as of page 95.
3
- Folding seat - as of page 96.
4-
Rotating seat-as of page 97.
5
- Centre seat bench - as of page 98.
6 -
Rear
seat bench - as of page 100.
Single
seats*
Please
refer
to the
general
notes
on
page
93.
Removing
single
seat
Warning
Before
removing
the
single
seats
you
must
remove
the
seat
belts
from
the
retainer,
so
that
the
belts
are not
damaged.
• First bend upper end of belt retainer open
slightly (it is located on side of seat) and
guide belt strap out retainer.
• Fold backrest down and secure.
'ress
locking knob on the seat frame and
fold backrest downwards
until
it engages.
• Pull up bar on seat frame up in the direc-
tion
of the arrow. At the same
time
pull the
seat slightly to the rear
(arrow)
and then re-
move.
Installing
single
seat
Please
refer
to the
general
notes
on
page
93.
• To install, place seat in
front
of securing
parts which are anchored to vehicle floor.
• Pull bar on seat frame up and push seat
forward
until
it engages
firmly
in the secur-
ing parts.
• Fold backrest down.
Press
the folded down backrest down and
hold
firmly
in this position. Operate the lock-
ing knob and fold backrest up
until
it en-
gages.
• Thread belt strap
into
retainer again.
94
-
SEATS
AND
STOWAGE
SEATS
AND
STOWAGE
•95
