Volkswagen Passat 1995 User Manual

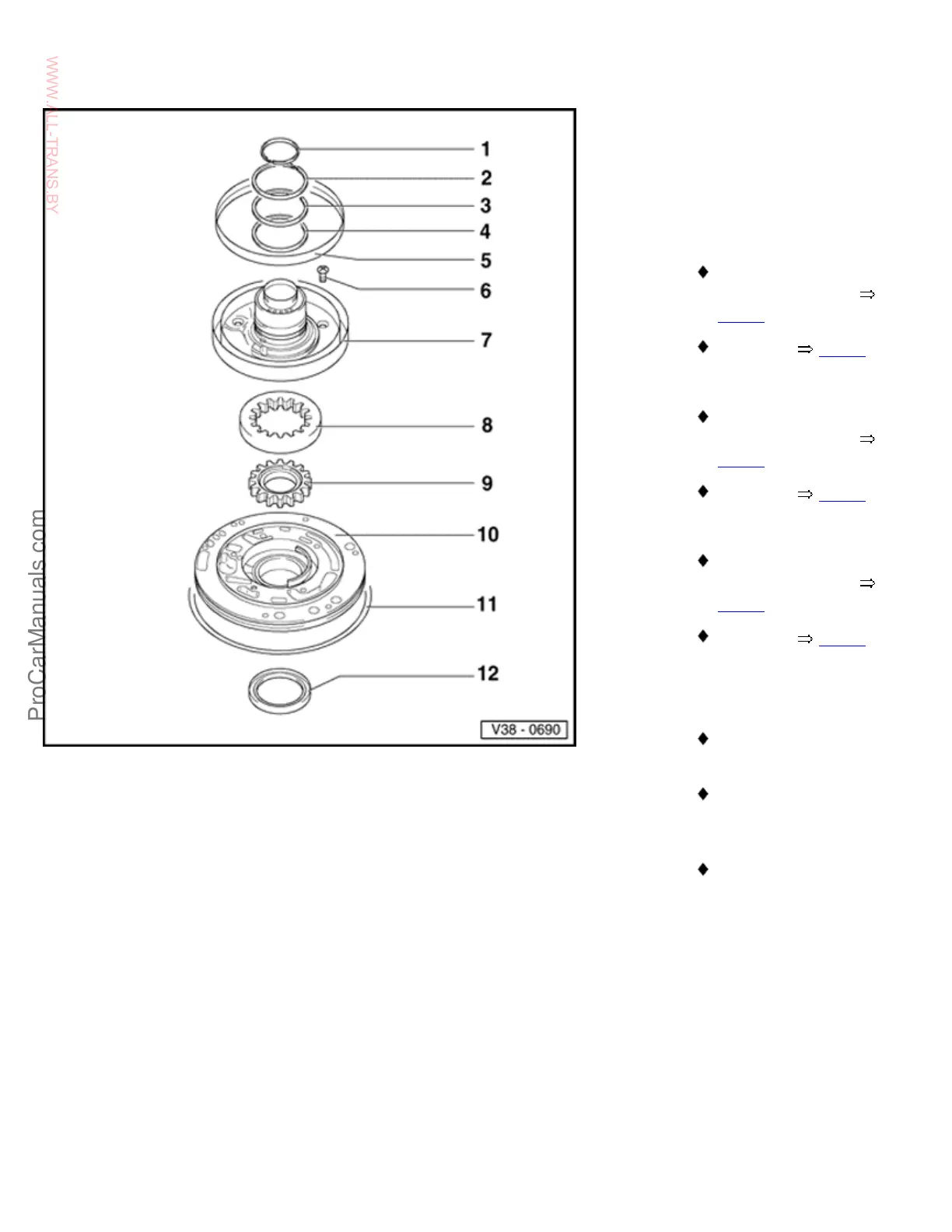

38-1
ATF pump,
disassembling and
assembling
1 - Piston ring
Check that ring is
correctly located
Fig. 1
Installing Fig. 2
2 - Piston ring
Check that ring is
correctly located
Fig. 1
Installing Fig. 2
3 - Piston ring
Check that ring is
correctly located
Fig. 1
Installing Fig. 2
4 - Thrust washer
5 - Piston
Sealing lips are
vulcanized to piston
Moisten sealing lips
with ATF before
installing
Turn piston slightly
while installing
Page
1
of
3
ATF pump, disassembling and assembling
12/6/2004
