32
Connection to power supply
network

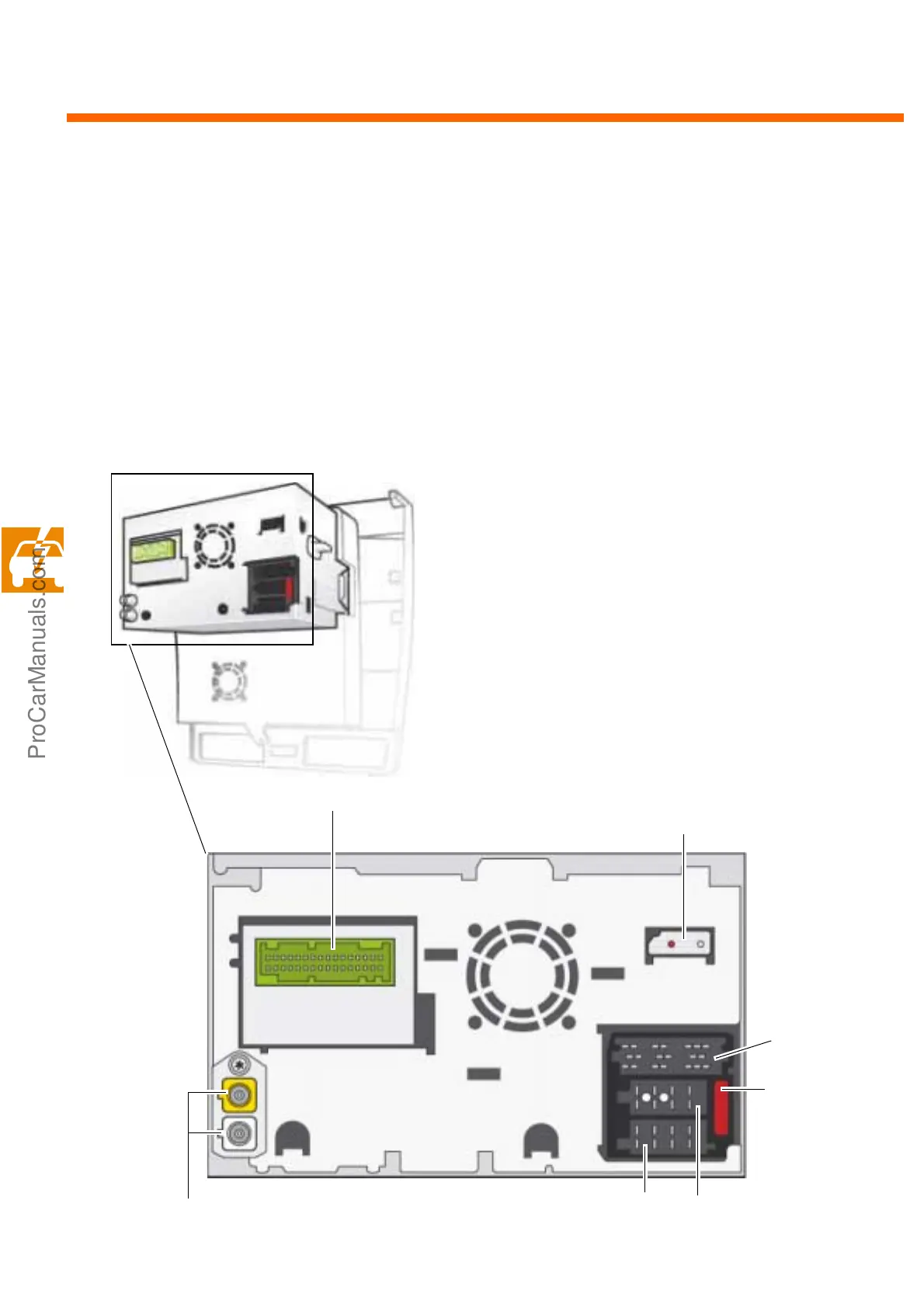

The electrical terminals of the Infotainment sys-
tem are located on the rear of the front infor-
mation display and operating unit.
Connectors are provided for:
- navigation sensors
- CD changer and additional terminals
- loudspeaker terminals
-voltage supply, K wire,
- aerials for radio, TV, navigation and mobile
phone, and
- optical bus
Electrics
Navigation sensors
Aerials
Optical bus
Fuses
CD changer
LoudspeakersRadio, power supply
S274_127
S274_128
