Volkswagen Phaeton Self-Study Programme 274 - Overview of Design

5
The Infotainment system mainly consists of the
following, besides the operating units in the dash
panel, the steering wheel and in the rear:
- the MF display in the dash panel insert,
- the navigation computer and the CD-ROM
the CD player in the glove box,
- the aerials in the rear window, and
- the microphone for language input and car
phone functions.
The microphone is mounted in the console in the
headlining.
These main elements are interlinked in the CAN
databus Infotainment system.
This data network is one of a total of three
CAN databus networks in the Phaeton:
- Drive CAN databus
- Convenience CAN databus
- Infotainment system CAN databus
All three networks interchange information. This
allows the Infotainment system to access a large
number of sensors and actuators.

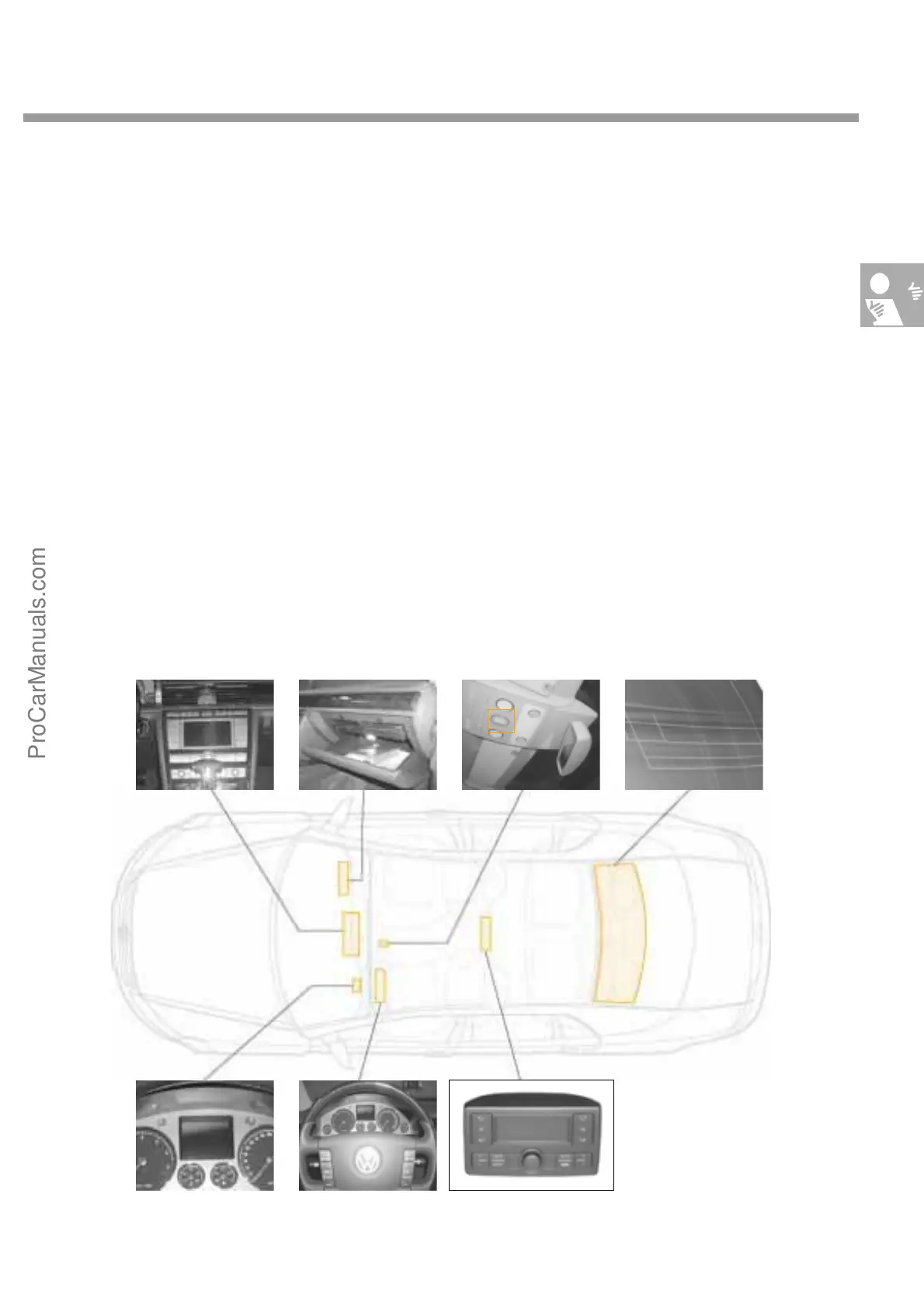

Overview of design
Front display and
operating unit
Navigation computer
and CD player in glove
box
Microphone in console Aerials in rear window
multifunction display in
the dash panel insert
Multi-function steering
wheel
Rear display and
operating unit
S274_104
