Front information display and operating unit
The operating unit is mounted in the centre con-
sole of the dash panel and is divided into various
sections.
● Climate line
The buttons have fixed functions for
controlling the heating and air conditioning
system.
● Function keys with screen
The screen indicates the various menus and
information.
The meaning of function keys is menu-depen-
dent and is shown on the screen as indications
in the side columns.
● Main menu line with the central
rotary/push knob
The buttons in this line select the main menus.
Use the rotary/push knob to select entries
from a list or confirm the selection by pressing
the button.
● Audio line
Here you can toggle between the radio,
CD player and TV. Use the various buttons to
select radio stations or TV channels or regu-
late the volume.

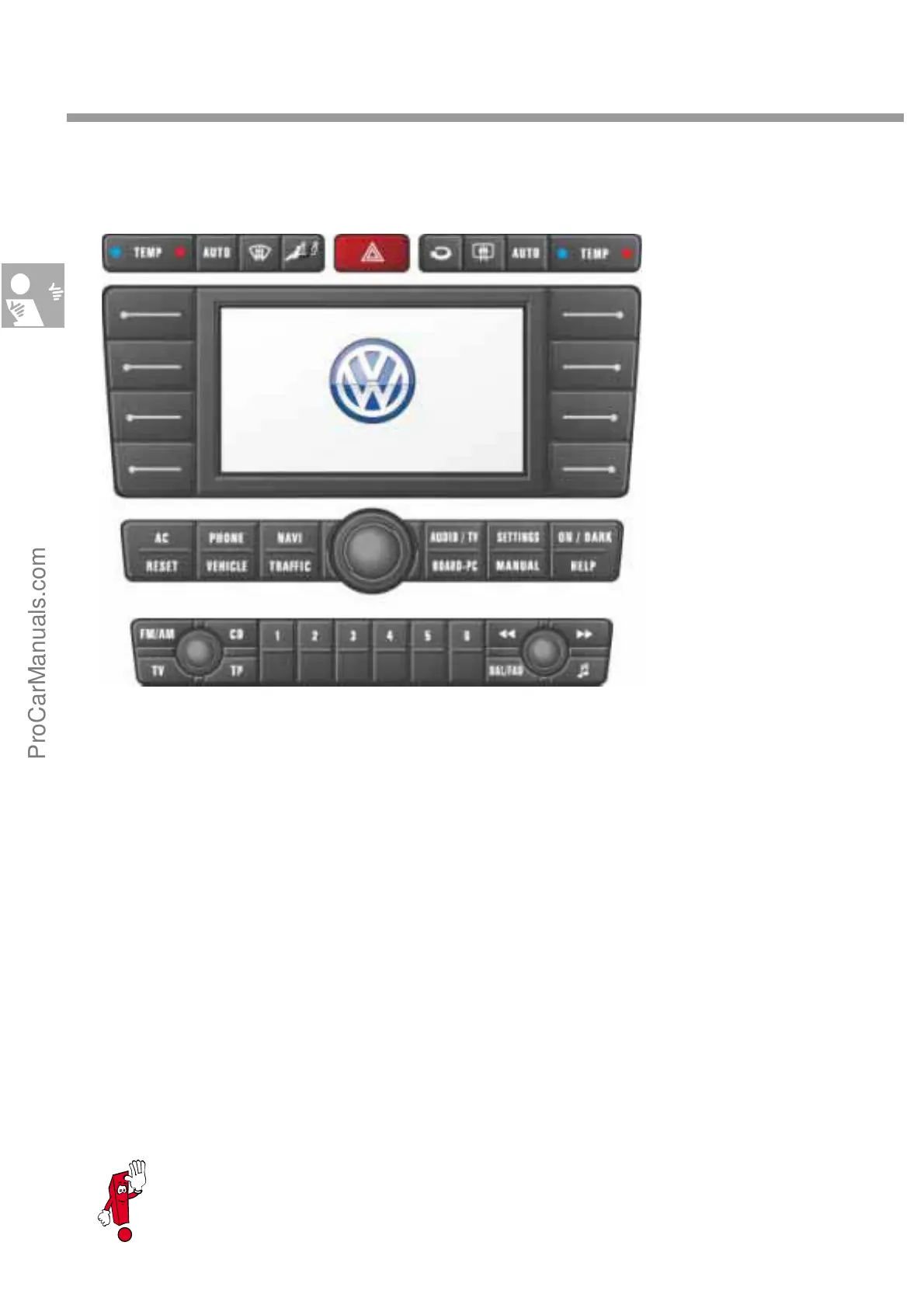

Overview of design
Welcome
Climate line
function keys with
screen
Main menu line
Audio
line
S274_002
The workshop manual refers to this display and operating unit by the term "Front information
display and operating unit control unit“.
