35

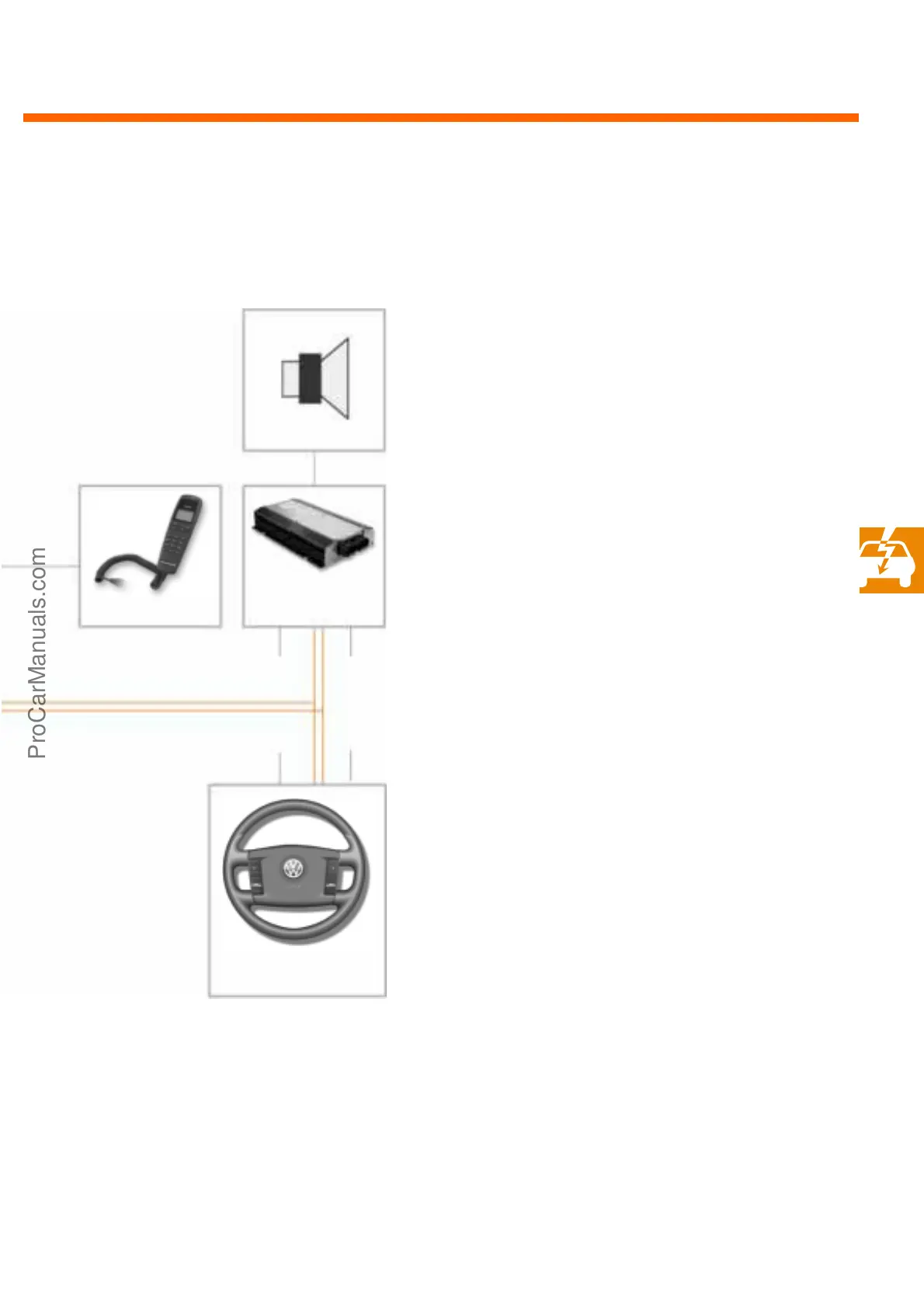

DSP amplifier
Loudspeakers
Multi-function steering wheel
N Infotainment
AF-DSP AF Nav
Mobile
AF wire
It has a double screen. This gives it fault immunity, low capac-
itance and high mechanical stability.
Y-C wi re
This is an audio and video cable.
Some components, e.g. radio, are contained in the
front information display and operating unit. Other
units and components are connected to the system via
various interfaces, e.g.:
- the navigation computer with CD-ROM in the glove
box via the CAN databus for the Infotainment sys-
tem and an optical bus,
- the CD changer in the glove box via the CAN data-
bus for the Infotainment system and AF wire,
- the TV tuner in the luggage compartment via the
CAN databus for the Infotainment system, AF and
Y- C wires ,
- the instrument panel via the CAN databus for the
Infotainment system,
- the telephone control unit in the luggage compart-
ment via the CAN databus for the Infotainment
system and an AF-in and AF-out wire,
- the mobile unit in the driver's armrest via a special
connection,
- the DSP amplifier in the luggage compartment via
the CAN databus for the Infotainment system and
two AF wires and the stereo outputs for the loud-
speaker system,
- the aerials in the rear window via direct HF/IF input
and output wires and
- the microphone in the vehicle headlining via a sep-
arate input wire.
