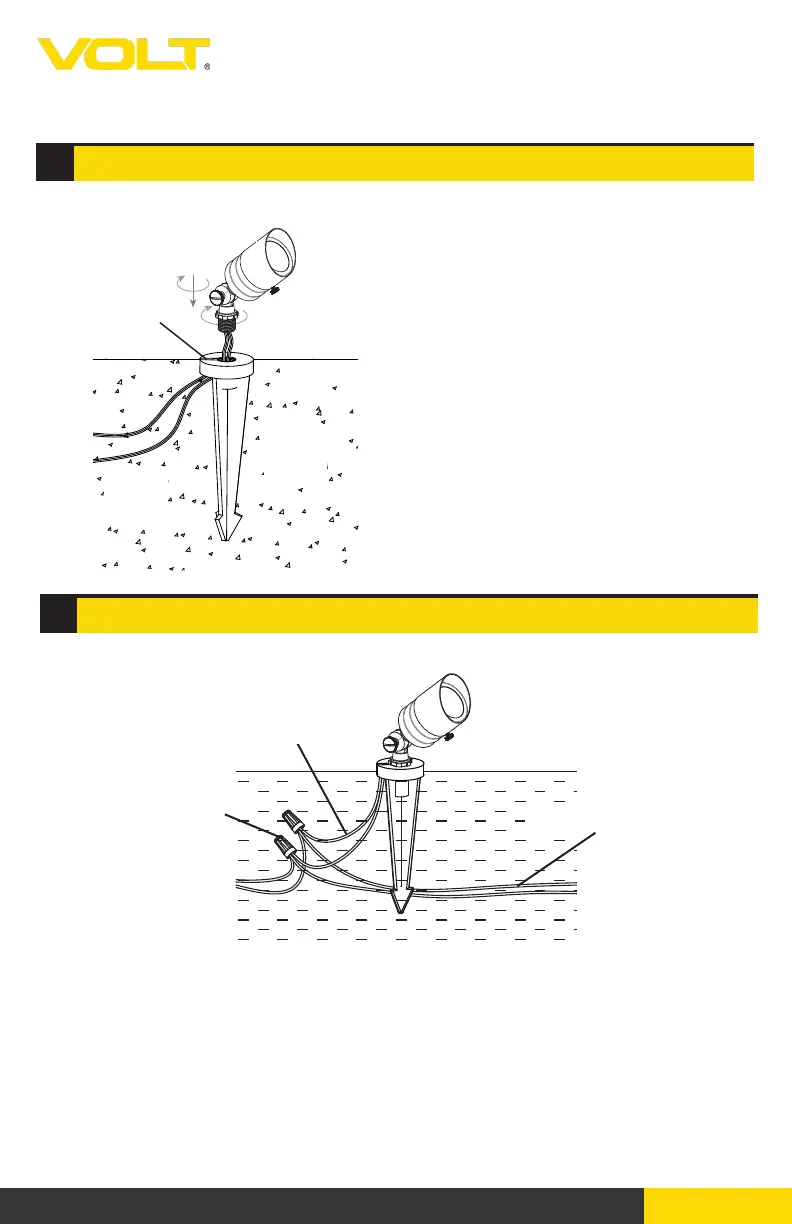

INSTALL FIXTURE BODY TO STAKE
2
Wire Connections
3
VOLT
®
Fat Boy Mini Spotlight - VAL-2014-X-XXX
INSTALLATION INSTRUCTIONS
813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com
4
Clear away an area in the ground
at the wireway slot on top of the
stake. Lay the supply wires into
the wireway slot and attach the
xture on to the stake. Tighten
until snug.
Fixture
Body
Supply
Wires
Ground
Stake
Wireway
Slot
Strip both the leads from the luminaire pigtail. Using two UL listed wire
connectors (sold separately), connect the leads from the luminaire to
the main supply cable leads.
Pigtail
Wire Connectors
Main Supply Cable
