Volt Water Tech FX-8Li - Step 5: Motor Box Separation from Funnel; Reassembly and Finalization; Step 6: Attaching New Motor Box to Funnel

6 pages

To Next Page

To Previous Page

Installation Guide - NiMH to Lithium

Need Help? Contact Us at (732) 967-9888 EXT: 230

Upgrading the Water Tech

Volt FX-8Li Motor Box

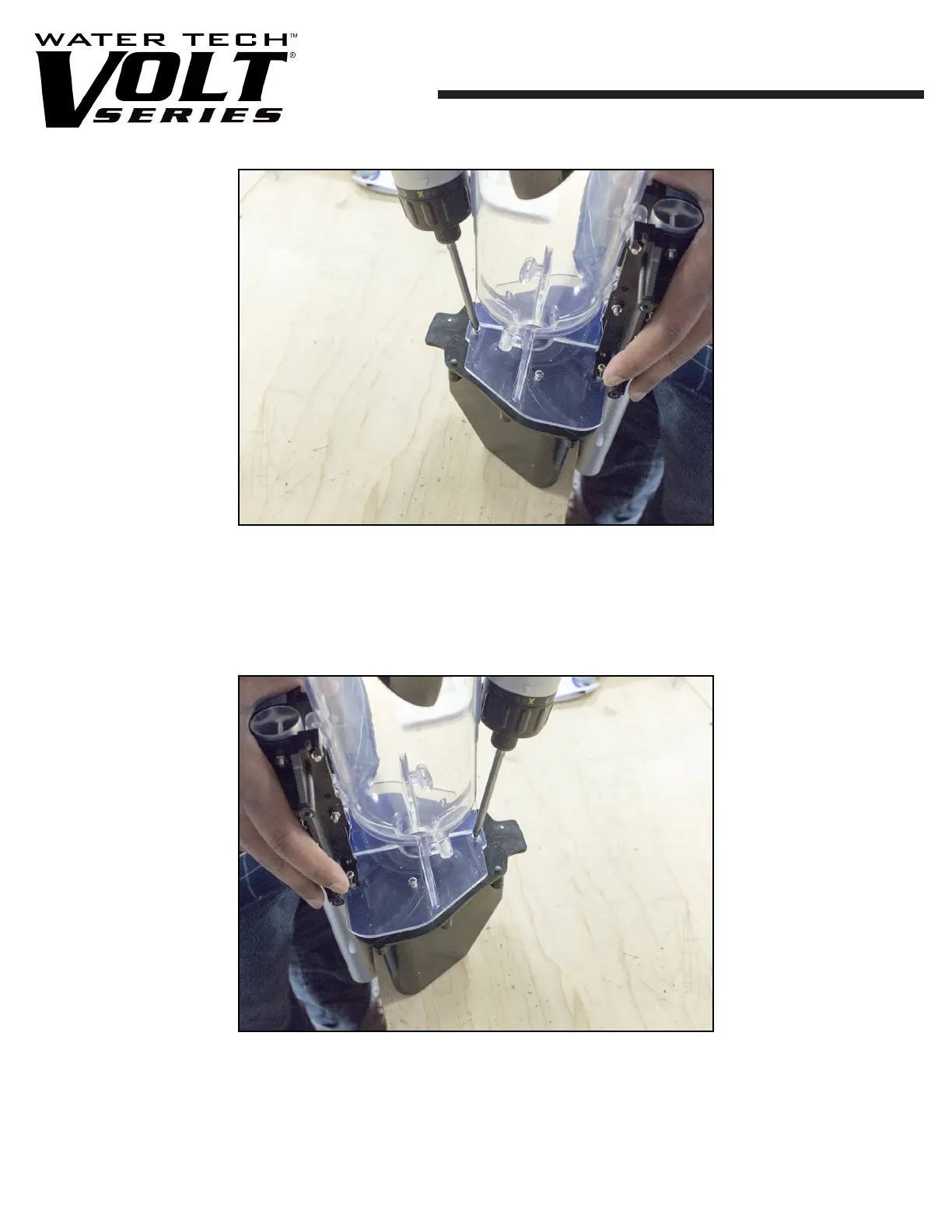

STEP 5: Remove the ve (5) screws that hold the

funnel to the motor box and separate the motor box

from the funnel. Place screws to side.

STEP 6: Place new motor box on table with impeller

side up. Place funnel on top of motor box (pole

should be facing you). Line up screw openings on

funnel with screw openings on motor box. Insert

ve (5) previously set aside screws into openings and

tighten with drill or screwdriver.
