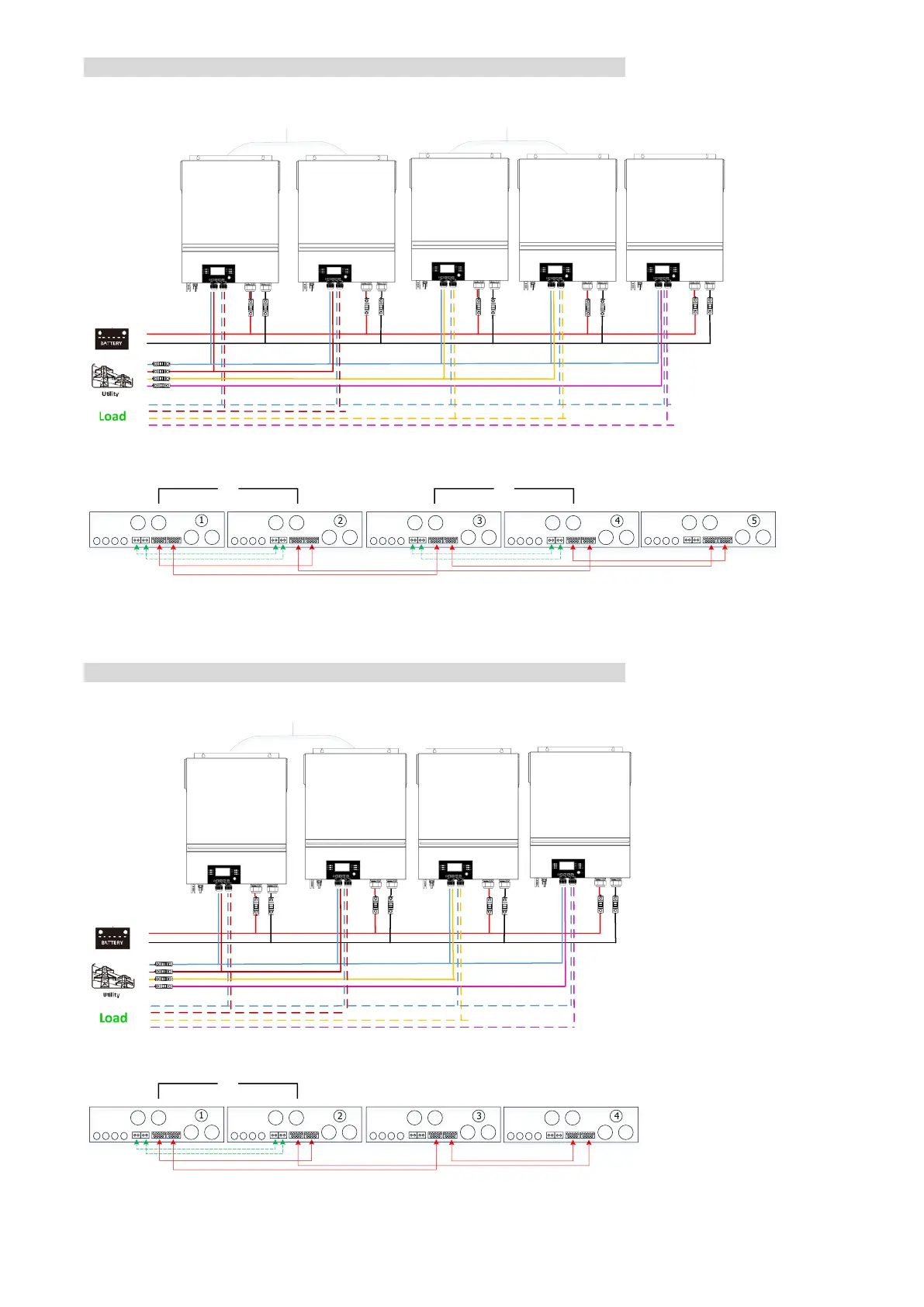

Two inverters in two phases and only one inverter for the remaining phase:
Power Connection
P1
P3
N
L1
L2
L3
N
L1
L2
L3
P2
Communication Connection
2
1
3
4
5
P1
P3
P2
Two inverters in one phase and only one inverter for the remaining phases:
Power Connection
P1
P3
N
L1
L2
L3
N
L1
L2
L3
P2
Communication Connection
2
1
3
4
P1
P3
P2
