VOLTCRAFT BS-15 User Manual

OPERATING INSTRUCTIONS
Version 01/12
BS-15 ENDOSCOPE
Item No. 12 33 00
INTENDED USE1.
The endoscope is in connection with a computer a visual means for optical error diagnostics and
inspection on dead plants and appliances. The endoscope is connected via a USB interface. By
meansoftheexiblegooseneck,thecolourcamera,situatedonthetopofthedevice,caneven
be moved to inaccessible positions and areas. Two white LEDs allow you to take photos also in
total darkness. Three accessories are included to extend the product’s sight or help you search
for / grasp tiny objects.
The gooseneck and the camera head are water-proof and are suited for application in aqueus
liquids (no acids or bases). The immersion depth is max. 96 cm. The handle must not get wet or
be immersed. Voltage supply is via the USB interface.
Unauthorisedconversionand/ormodicationofthedeviceareinadmissiblebecauseofsafety
and approval reasons (CE). Any usage other than described above is not permitted and can
damagetheproductandleadtoassociatedriskssuchasshort-circuit,re,electricshock,etc.
Please read the operating instructions thoroughly and keep them for further reference.
CONTENT OF DELIVERY2.
Endoscope•
Magnetic top•
Mirror top•
Hook top•
Software and driver CD•
Case•
Operatinginstructions•
SAFETY INSTRUCTIONS3.
We do not assume liability for resulting damages to property or personal injury if
the product has been abused in any way or damaged by improper use or failure to
observe these operating instructions. The warranty/ guarantee will then expire!
The icon with exclamation mark indicates important information in the
operating instructions. Carefully read the whole operating instructions before
operating the device, otherwise there is risk of danger.
Persons / Product
When used in conjunction with other devices, observe the operating instructions and safety •
notices of connected devices.
The product must not be exposed it to extreme temperatures, direct sunlight, intense vibration, •
or dampness.
If not in use, store the endoscope in the case. Sensitive surfaces (furniture polish, etc.) might •
cause chemical reactions with the housing.
Avoid strong mechanical strains or vibrations. The minimum bending radius must not be below •
6cm.
Keep the unit out of the reach of children. It is not a toy.•
Do not leave packaging material unattended. These may become dangerous playing materials •
for children.
Onindustrial sites,the accidentprevention regulationsof theassociation ofthe industrial•
workers’ societies for electrical equipment and utilities must be followed.
Only immersethe head and gooseneckof the camerain liquids with novoltage! Do not•
immerse the device more than 96 cm.
If there is any reason to believe that safe operation has become impossible, turn the device •
off and secure it against any unintentional operation. It can be assumed that safe operation
is no longer possible if:
the device shows visible damage, -
the device no longer functions and -
after being stored under unfavourable conditions for a long period of time or -
it has been subjected to considerable stress in transit -
You should also take heed of the additional safety instructions in each chapter of the operating •
instructions of the connected devices.
Never switch the device on immediately after it has been taken from a cold to a warm •
environment. Condensation that forms might destroy your device. Allow the device to reach
room temperature before switching it on.
Miscellaneous
Repair works must only be carried out by a specialist/ specialist workshop.•
If you have queries about handling the device, that are not answered in this operating •
instruction, our technical support is available under the following address and telephone
number: Voltcraft
®
, 92242 Hirschau, Lindenweg 15, Germany, phone 0180 / 586 582 7

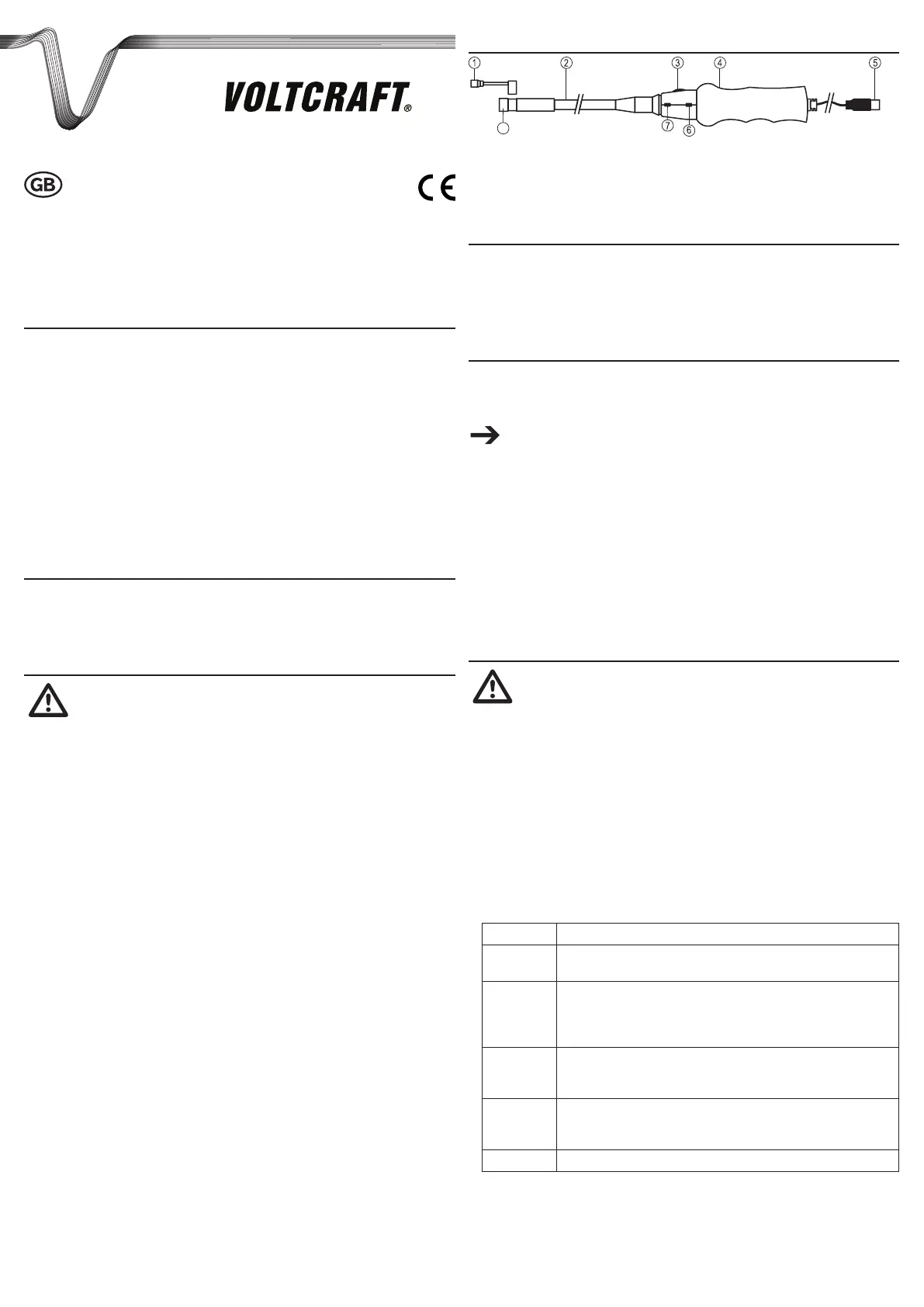

OPERATING ELEMENTS4.
8
Magnetic top, mirror top or hook top 1.
Gooseneck 2.
Brightness control for LED light 3.
Handle4.
USB plug5.
Zoom key6.
Snapshot key7.
Camera head with LED light8.
SYSTEM REQUIREMENTS5.
Pentium® III 200 MHz or higher•
At least 32 MB RAM•
40 MB free hard disc memory•
CD or DVD drive•
System requirement: Microsoft® Windows 98, ME, 2000, XP, Vista™, Windows 7•
INITIAL OPERATION6.
Connect the USB plug of the endoscope to a free USB port of your computer.1.
Switch on the computer and start the operating system.2.
Insert the CD supplied in your CD or DVD drive.3.
The program can only be installed by a person with administrator’s rights within the
computer system. Consult your system administrator if you encounter any problem
during installation.
Ifthe installationdoes notstart automatically,go toyour CD-ROMdrive anddouble-click4.
“Super_Telescope.exe” to open it.
Connect the endoscope to the computer when prompted during installation.5.
Ifthe“WindowsLogoTest”appears,conrmitbyclickingon“Continueanyway”.Thistestonly6.
indicates that Windows® does not recognise the software.
For normal users, select “Complete” for automatic and full installation. For advanced computer 7.
users, you can select “Custom” for setting the installation location and the components to be
installed. Click “Next” to continue.
Theinstallationprocessisnished.Restartthecomputer,ifnecessary.8.
OPERATION7.
The application program “AMCAP” is a universal program for different devices.
All menu points not described in this operating manual are not included in the
functional range of the endoscope.
The endoscope must only be used for inspections on de-energised equipment.
The camera head is made of metal and may lead to short-circuits. For safety
reasons, de-energise all plant components prior to each inspection.
Switch on the computer and start the operating system.1.
Connect the endoscope with the computer.2.
Starttheprogram“AMCAP”.Youcanndthisprogramonthedesktoporviathebutton“Start,3.
All Programs” under the folder “USB2.0 PC Camera”.
If another USB camera is already installed, this can lead to error messages during the program 4.
start-up. In this case, select the driver “Generic USB Controller Interface (AVS)” under the menu
point “Devices” in the main menu. All installed devices are displayed under this menu point.
Foradditionalcameraeffects,starttheprogram“PACTray”aswell.Youcanndthisprogram5.
on the desktop.
The camera picture is displayed. 6.
Right-click on the icon of the program “PAC Tray” to set the additional effects.7.
Features Descriptions
Frame “Disable” (no frame) or select one of the frames: “Flowers, Paper, Snipe,
Snowman, Time magazine, News”.
Effect “Disable” (no effect) or select one of the effects: “Invert, Black/White,
Green Mono, Gray Scale, Blue Mono, Red Mono, Emboss, Find Edge,
Mosaic, Wind, Solarize, Sepia, Bathroom, Sketch, Oil Paint, DistortH,
DistortV, Monitor”
FaceTracking “Enable” or “Disable” the face tracking function. With this function, when
a human face is detected, the view will be zoomed in and focus on the
face.
SnapShot Set the resolution of the captured picture from “Default (640 x 480)” to: 640
x 480, 800 x 600, 1024 x 768, 1280 x 960, 1600 x 1200, 2304 x 1728, 2560
x 1920, 3200 x 2400. (Interpolated resolutions, except 640 x 480).
Zoom Digital zooming bar
Via the controller “3” the camera brightness can be adjusted. 8.
