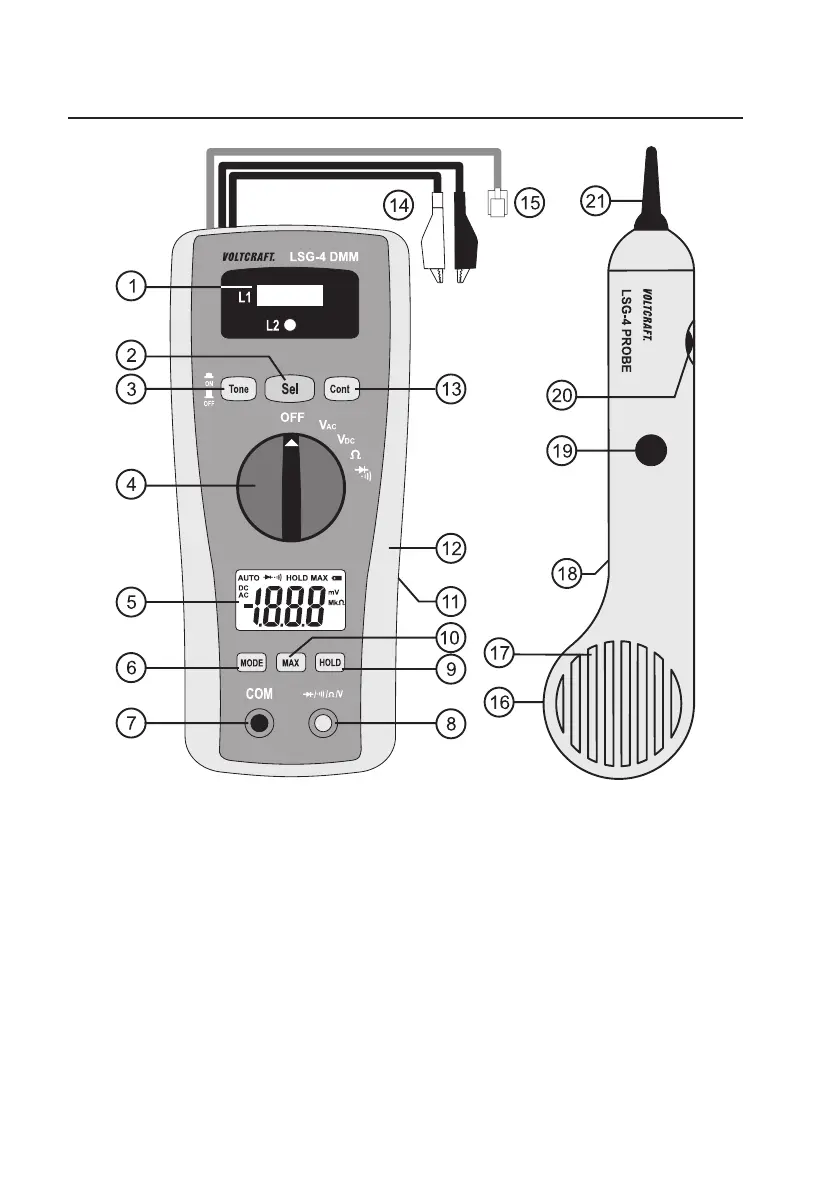

6. Operating elements
1 LED indicator for cable detector (L1: cable status, continuity tester; L2: Battery replacement display)
2 “Sel” toggle key for cable detector (signal tracing with permanent or wobble sound)
3 “Tone” duty switch for cable detector
4 Rotary switch
5 Display (LCD) for multimeter
6 MODE button for switching the measuring functions diode test and continuity tester
7 COM measuring socket (reference mass, minus potential)
8 V measuring sockets for all measuring functions of the multimeter (plus potential)
9 HOLDbuttonfor“freezing”thedisplayvalue
