Operating trim controls

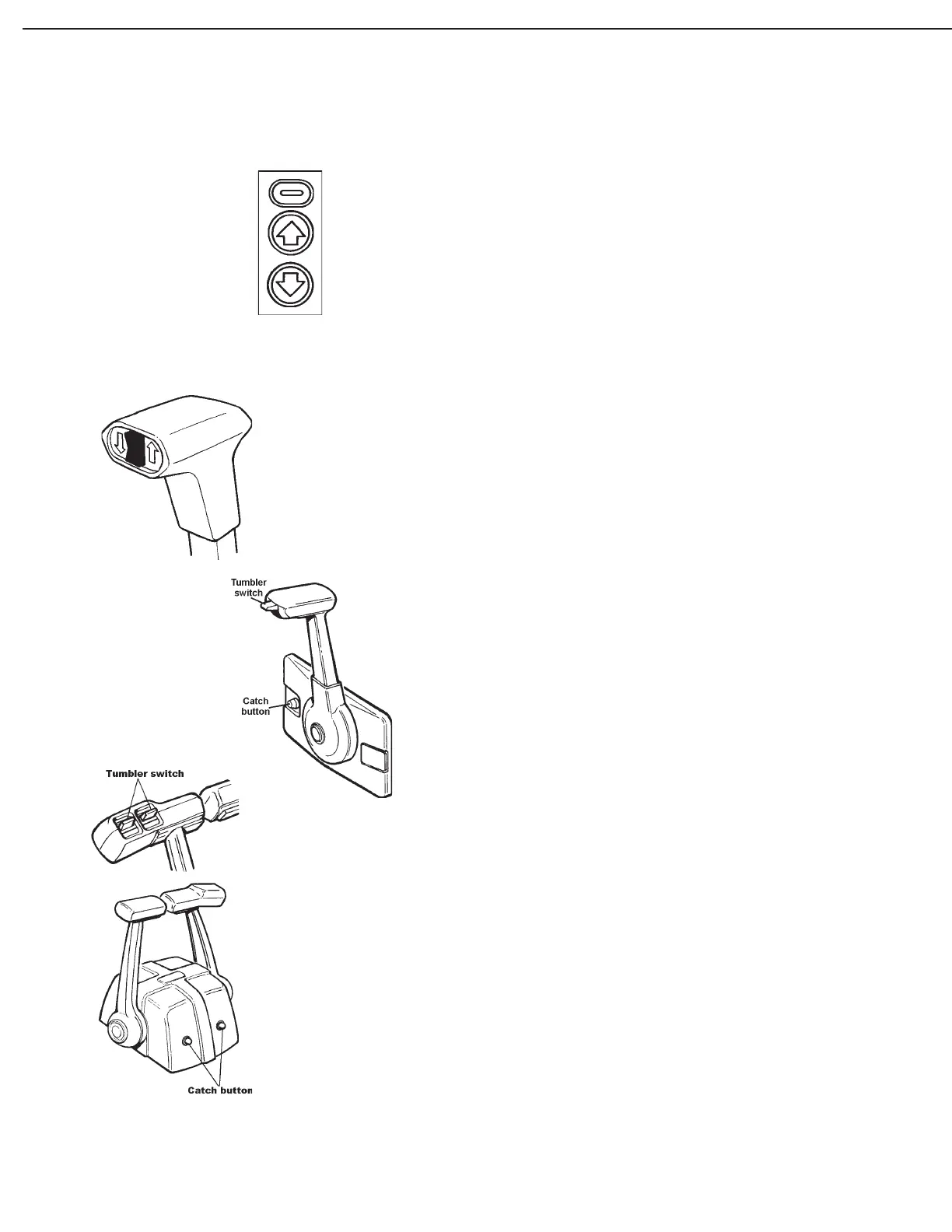

Control panel
The control panel has three buttons:
• The center button moves the drive trim out while it raises
the boat’s bow.
• The lower button moves the drive trim in while it lowers
the boat’s bow.
• The top button disconnects a “catch” so that the drive
can be trimmed into the
BEACH position. (Press this
button and the center button at the same time.)
Control lever
The control button on the control lever has two functions:
• Pressing the top half of the button moves the drive trim
out while it the raises the boat’s bow
• Pressing the bottom half of the button moves the drive
trim in while it the lowers the boat’s bow.
You must press a separate switch on the instrument panel
to disconnect the “catch” so that the drive can be trimmed
into the BEACH position.
Control lever with catch button (single installation)
A tumbler switch on the control lever allows you to trim the
drive:
•Pressing the tumbler switch up moves the drive trim out
while it the raises the boat’s bow.
• Pressing the tumbler switch down moves the drive trim in
while it the lowers the boat’s bow.
•The catch button disconnects a “catch” so that the drive
can be trimmed into the BEACH position.
Control lever with catch button (twin installation)
There are two tumbler switches on the port control lever,
which gives you the capability of individual adjustment of the
drive trim.
• Pressing the switches up moves the drive trim out while it
the raises the boat’s bow.
• Pressing the tumbler switches down moves the drive
trim in while it the lowers the boat’s bow.
• The catch buttons disconnect a “catch” so that the drive
can be trimmed into the BEACH position.
