Power Trim Instrument and
Displays
Digital Instrument
51279a

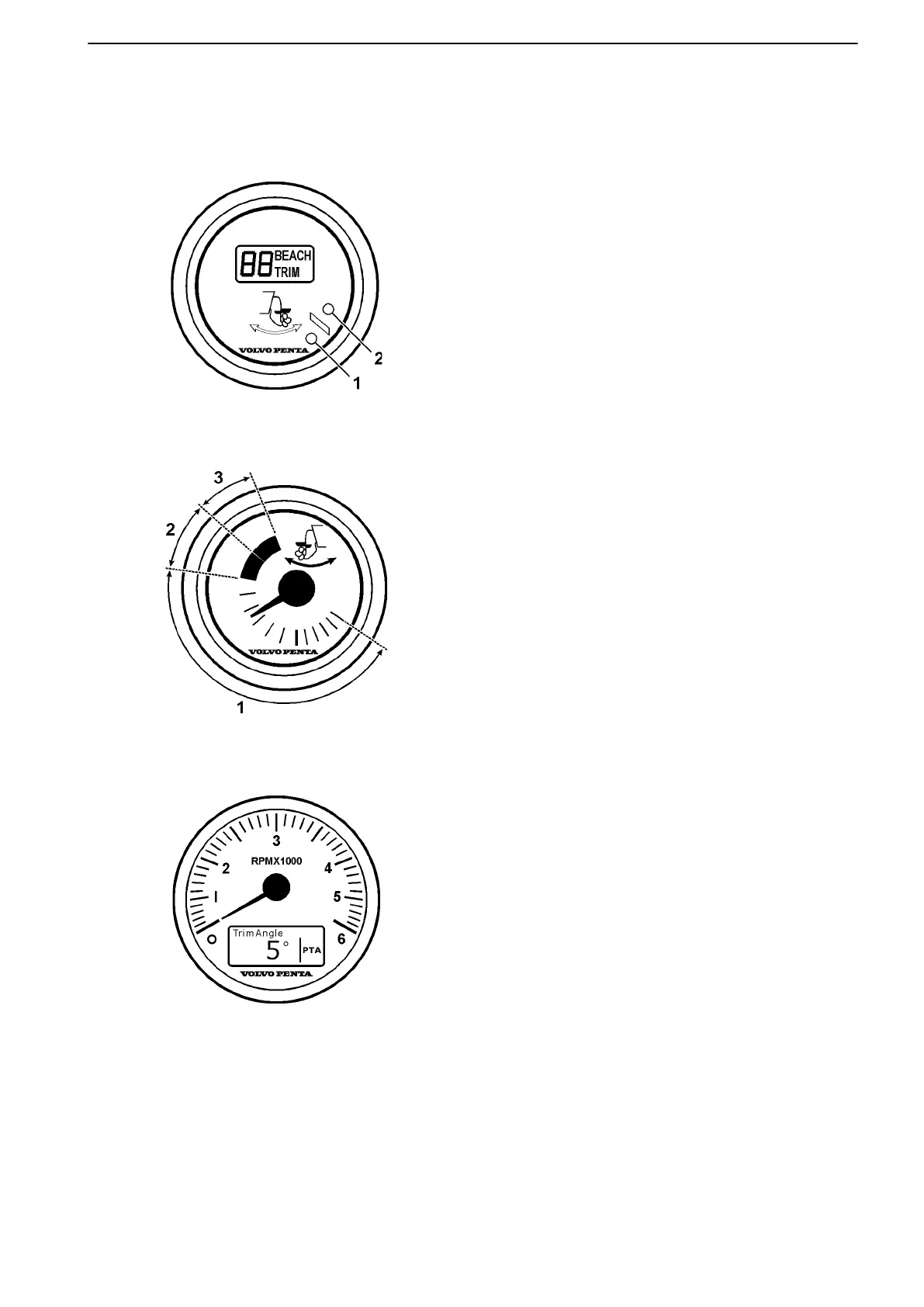

The digital instrument shows the trim angle in digits
and the trim range (TRIM) and beach range (BEACH)
in letters. When in beach range the LED 1 lights
orange. When in tilt range, the LED 2 lights red (no
letters are displayed).
When the system is first started, the digits read “88”
and both words “TRIM” and “BEACH” are displayed.
Analog Instrument
50897
This instrument shows the current position of the drive.
Beach range is marked with an orange zone and Tilt
range with a red zone.
1. Trim range
2. Beach range (orange).
3. Tilt range (red).
Tachometer LCD Display
51274j
The trim angle may also be viewed in the LCD display
of the tachometer (if installed). For additional informa-
tion, please see EVC System Display.
Instruments and Controls
47701898 12-2010 51
